Specifications
Brand Name :
MIROC by KSQ
Model Number :
B565-R28-B
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Pieces per Year
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
Product Name :
Thread Button Bit
Usage :
Hole drilling
Button type :
Ballistic Button
Diameter :
65mm
Thread :
R28
Weight :
0.8kg
Flushing Hole :
1 Front and 2 Side
Button Type :
2*12mm,3*14mm
Description

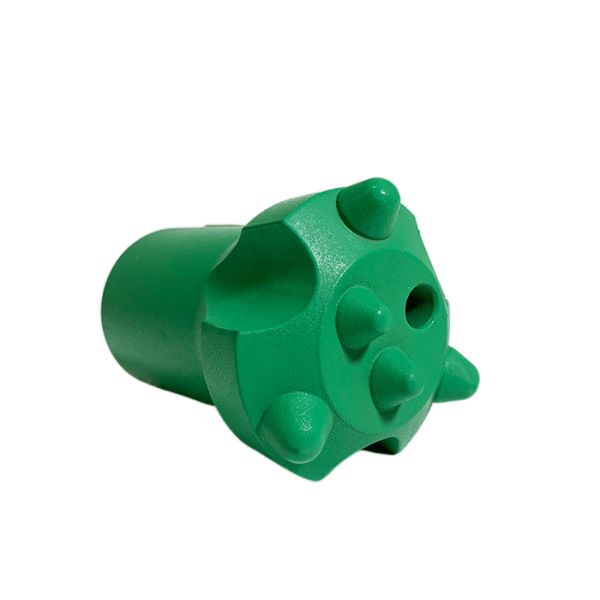

Diameter 65mm R28 Carbide Thread Button Bit Top Hammer Drill Bit for Hole Drilling

Product Description:
Threaded drill bits are suitable for working conditions such as roadway excavation, underground, open-pit mining, pointing support, tunnels and large-scale engineering construction.The drill bit uses ball teeth, suitable for hard rock, corrosive rock, uniform rock.Button bit has strong teeth-fixing ability, long service life, wear resistance and impact resistance.We offer high quality productive tools and services for all Top hammer drilling applications.In addition, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Application:
The thread drill bits / jack hammer bits / button bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

Product Advantage:
1) Very low breakage;
2) Very low percentage of carbide falling off.
3) Wide application range.

Hole Drilling Carbide Top Hammer Drill Bits Diameter 65mm R28 Low BreakageHole Drilling Carbide Top Hammer Drill Bits Diameter 65mm R28 Low Breakage

Specification of other Thread Button Bits:

Bit Dia.(mm) Thread NO. X Button Dia. NO.Flushing Holes(PCS) Weight(KG)
Gauge Front Side Front
51 R32 5×11 2×10 2 1 1.2
51 R32 6×10 3×9 　 3 1.2
57 R32 6×11 3×10 　 3 1.6
64 R32 6×11 3×11 1×9 1 3 2
64 T38 6×12 3×11 1 2 2
64 T38 8×10 4×10 1×9 　 4 2
76 T38 6×12 4×11 2 2 3.1
76 T38 8×11 4×11 1×11 　 4 3.1
76 T45 8×12 4×11 2 2 3.2
76 T45 8×12 4×11 1×11 　 4 3.2
78 T38 8×12 4×11 1×11 　 4 3.5
89 R32 8×12 5×11 　 2 4.1
89 R32 8×12 4×11 2×10 　 4 4.1
89 T38 8×12 5×12 2 2 4.8
89 T38 8×12 4×11 2×10 　 4 4.8
89 T45 8×12 6×12 2 2 5.1
89 T45 8×13 4×12 1×12 　 4 5.1
89 T51 8×12 6×12 2 2 5.1
89 T51 8×13 4×13 1×12 　 4 5.1
102 T45 8×12 7×12 　 2 6.5
102 T45 9×13 9×11 　 3 6.8
102 T45 8×14 4×12 2×11 　 4 6.8
102 T51 8×12 7×12 　 2 7.1
102 T51 9×13 9×11 　 3 6.5
102 T51 8×14 4×12 2×11 　 4 7.3
105 T45 8×14 6×13 　 2 7.1
115 T45 8×14 4×13 3×12 　 4 7.8
115 T45 9×14 10×12 　 3 7.9
115 T51 9×14 10×12 　 3 7.9
115 T51 8×14 7×13 　 2 9.6
115 T51 8×14 4×12 2×12 　 4 10.2
127 T45 8×14 8×13 　 2 11
127 T45 9×15 10×13 　 3 12.3
127 T51 9×15 10×13 　 3 12.3
127 T51 8×15 8×13 　 2 12
127 T51 8×14 4×14 4×12 　 4 12
