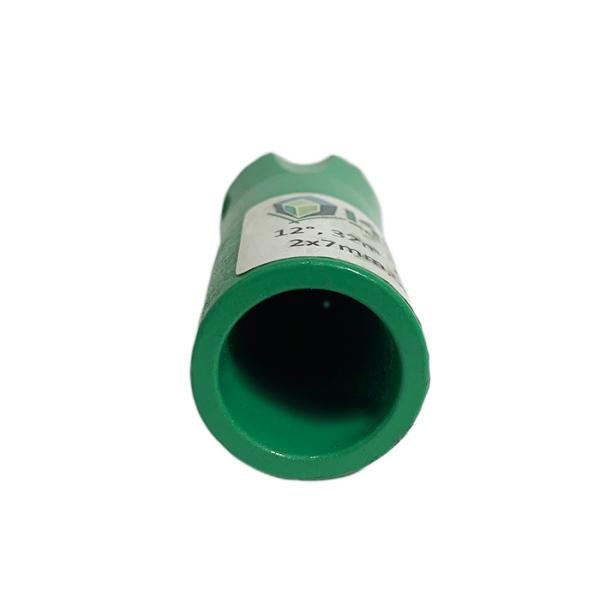

32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
Specifications
Brand Name :
MIROC by KSQ
Model Number :
BL832-12D-22
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
20 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Pieces per Year
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
Product Name :
Tapered Drill Bit
Use :
Mining, Quarrying, Ground engineering ,Tunnel
Usage :
Small Hole Drilling
Button Material :
YK05
Face type :
Flat Face
Button type :
Ballistic Button
Bit Diameter :
32mm-41mm
Body Type :
Normal Retrac
Description

32mm Button Drill Bit 12 Degree Tapered Drill Bit for with 8 Buttons for Granite

Taper Drill Rod is used for rock drilling, blasting holes and other drilling situations, including quarries, coal mines, traffic and other construction.Normal diameter or rod is 22mm, named H22, KSQ can also make H19 and H25.

Product Description:

Perfect designs, tungsten carbide and skirt steel , PANDADRILL provides leading strength and penetration rates for more productivity, excellent straightness and hole clean quality, get max drilling performance to save up fuel cost rate.

We can design and manufacture according to customers' samples or drawings of the diameter., buttons and flushing holes quantity, button shape and face shape. KSQ button bit is made by high quality tungsten carbides and steel, through heat treatment so that it can be used for hard rock drilling, and transmit intensive impact energy into the rock with the least possible loss of energy. Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency. According to the buttons, tapered button bits can be divided into the types of Dome, Ballastic, etc.

Products Parameters:

Product Name: Tapered Drill Bit
Diameter: 32mm, 33mm, 35mm, 36mm, 38mm, 41mm
Button Size: Front 2*7mm Gauge 5*7mm; Front 2*7mm Gauge 5*9mm; Front 2*7mm Gauge 6*7mm
Degree: 12 Degree
Flushing Hole: 2 Front and 1 Side
Application: Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Feature: Long Skirt
Material: High quality carbide and high quality steel
MOQ: No requirement for testing and trial order
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape

32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite

Specification of other Taper Button Bits:

Products Name Dia (mm) Taper Angel (°) Length(mm) Weight(kg)
Taper Chisel / Cross Bit 28 7 degree 62mm 0.16
30 0.20
32 0.22
34 0.24
36 0.28
38 0.32
40 0.36
42 0.38
46 0.44
50 0.50
60 0.66
Taper Button Bit
(with 4 pcs buttons)		 30/32 7 degree 63mm 0.20/0.22
36/38 0.28/0.34
40/42 0.36/0.42
Taper Button Bit
(with 5 pcs buttons)		 34 11 degree 65mm 0.3
40 7/11 degree 63mm 0.36
Taper Button Bit
(with 6 pcs buttons)		 36 11 degree 63mm 0.3
40 7 degree 0.36
42 7 degree 0.38
Taper Button Bit
(with 8 pcs buttons)		 32 7/12 degree 65mm 0.28
34 68mm 0.30
38 63mm 0.40

32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite32mm Taper Button Bit Button Drill Bit 12 Degree With 8 Buttons For Granite
