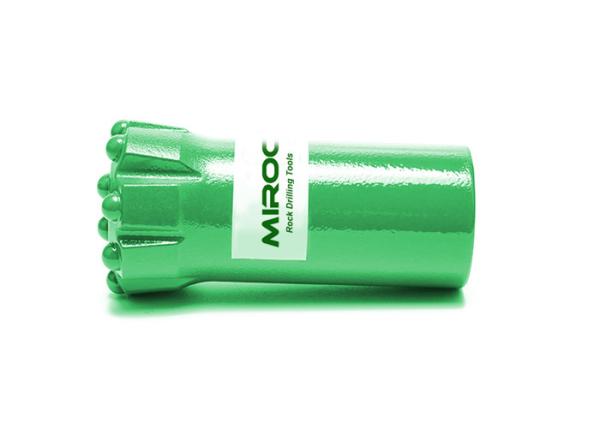

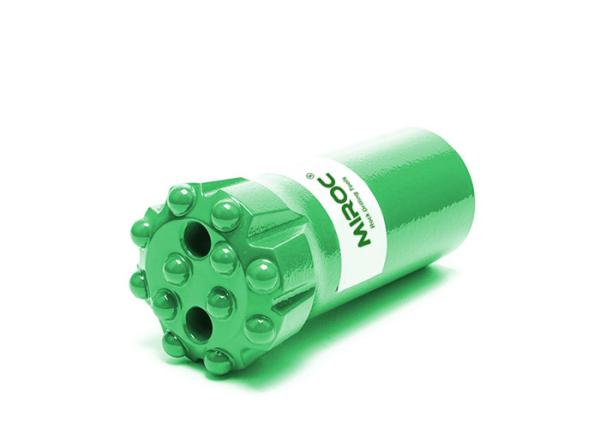

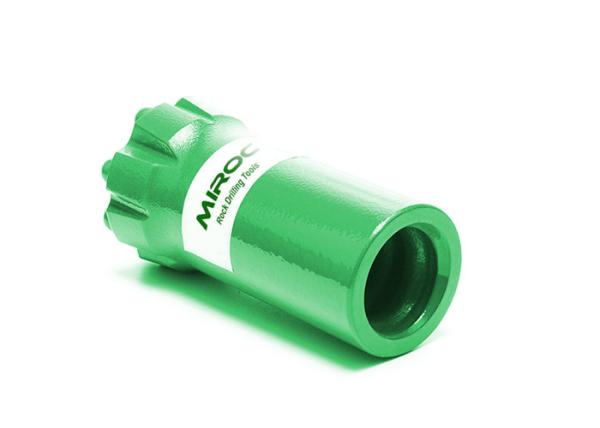

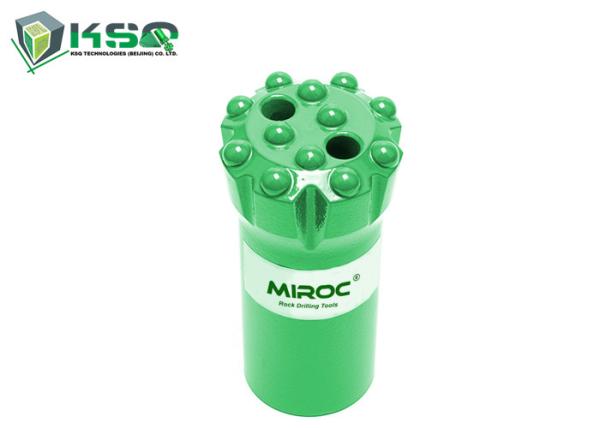

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
Specifications
Brand Name :
MIROC by KSQ
Model Number :
T38 Threaded Button Bits
Certification :
API, ISO9001
Place of Origin :
China (Mainland)
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per year
Delivery Time :
5-15 Work Days
Packaging Details :
Carton or Wooden Box
Model Type :
T38 Threaded Button Bits
Materal :
Carton Steel & Tungsten Carbide
Diameter :
57-115mm
Skirt Design :
Standard
Face Design :
Flat Face, Drop Center
Carbide Shape :
Spherical, Ballistic
Usage :
Ore Mining, Rock Drilling, Quarry, Coal Mining
Machine Type :
Drilling Equipment
Color :
Green, or Customize
Processing Typr :
Forging
Description

High Quality T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

T38 Button Bit is a Tungsten carbide threaded button bit, it is made of high-quality carbide tips and steel. It is proved that thread button bit has very good performance in hard and extreme hard rock formations. And also it has lower cost when compared with tricone bit and PDC bit in water well drilling.

SPECIFICATIONS FOR T38 THREADED BUTTON BIT
Item
Specification
Choice
OEM Service
Product Name
T38 Mining Rock Drilling Threaded Button Bit
T38-64mm, 76mm, 89mm,115mm Drill Bits
Available
Brand
MIROC by KSQ
Customize
Available
Body Material
45CrNiMoV
35CrNiMoV
Not Availbale
Button Material
YK05
YK05
Not Available
Diameter
64mm, 76mm
64mm-115mm
Available
Length
130mm
140mm
Available
Socket diameter
38mm
45mm
Available
Uses
Ore Mining, Quarry
Rock Drilling
Available
Color
Green color
Blue,yellow
Available


Competitive Advantage

• High grade tungsten carbide inserts
• Bit body is manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

• High resistance

• Very low breakage

• Very low percentage of carbide falling off

• Wide application range

Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

Competitive Advantage

• High grade tungsten carbide inserts
• Bit body is manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

• High resistance

• Very low breakage

• Very low percentage of carbide falling off

• Wide application range

Spherical Button Bit Chart:

Drill Bit Diameter (mm) No. X Buttons diameter Flushing Holes Weight (kg)
Front Gauge Angle Front Side
Button Bit Spherical
64 3 x 11 6 x 12 35 3 - 1.8
70 4 x 11 8 x 11 40 2 - 1.9
70 4 x 10, 1 x 10 8 x 11 30 4 - 1.9
70 3 x 10, 1 x 10 6 x 12 35 3 - 1.8
76 4 x 11 8 x 11 40 2 - 2.4
76 3 x 1, 1 x 11 6 x 12 35 3 1 2.6
76 4 x 11, 1 x 11 8 x 12 35 4 - 2.6
89 5 x 12 8 x 12 35 2 - 3.3
89 4 x 13, 1 x 13 8 x 13 35 4 - 3.3

Products:

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

Packing:

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

Company Information:

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter

T38 Threaded Rock Drill Bits Tungsten Carbide Button Drill Bit 64-115mm Diameter
