140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
Specifications
Brand Name :
MIROC by KSQ
Model Number :
DTH Drill Pipe
Certification :
API, ISO9001
Place of Origin :
China (Mainland)
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Pieces per Year
Delivery Time :
5-15 Working Days
Packaging Details :
Tray or Wooden Box
Use :
Well Drilling,Ore Drilling
Application Industries :
Construction works , Energy & Mining
Material :
High Manganese Steel
Processing Type :
Forging
Usage :
Down the Hole Drilling
Wall Thickness :
5-12mm or As Requirement
Advantage :
High Performance
Color :
Customize
Description

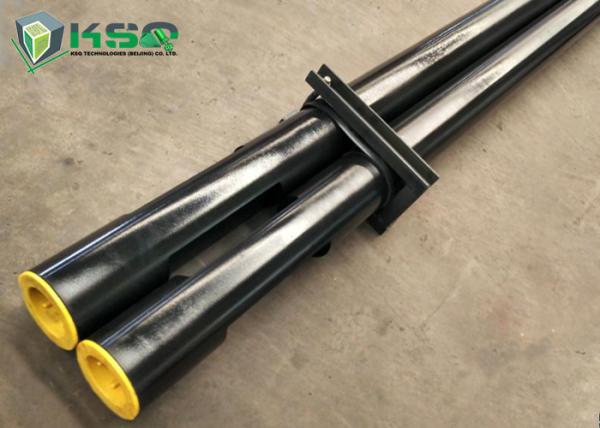

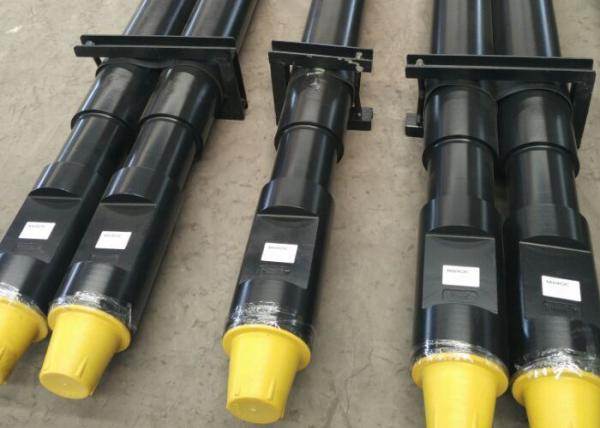

OD 140mm API Standard DTH Drill Rod for for Open Hole Drilling and Geothermal Wells

Product Description:

Traditionally, the threads and the joint between the tube and the end-pieces are vulnerable. To combat the problem, we've friction-welded the joints for maximum strength and heat-treated the end-pieces for optimum durability.

Premium alloy steel made joints,strictly controlled heat treatment process and standard API thread processing technology;we pay high attention to all these ignored details to ensures a long service life,stability and thread durability.

We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

Products Parameters:

Pipe Diameter

140mm

Wall Thickness

5mm, 6mm, 8mm

Pipe Length

1000 - 6000mm

Wrench flat

57/65 mm

Joints Connection

2 3/8‘’ REG

Trigger Slot

57/64.5

Product Advantage:

1. Reliable wall thickness

2. Less ovality. Less risk of eccentric wear.

3. Better quality of the friction weld, less risk of concentricity of welding.

4. Better wear resistance due to increased hardness.

5. Reliable weights max 2-3% variance.

6. Less risk of damage to the tube from the straightening operation.

7. An overall weight reduction of our DTH tube assortment.

140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells

Specification of other DTH Pipes:

No. O.D. Thread Wall Thickness Length s-s Wrench
(mm) (pin/box) (mm) (mm) (pin/box)
1 76 2 3/8" API Reg. 4-8 1500 Optional
2 76 2 3/8" API Reg. 4-8 2000 Optional
3 76 2 3/8" API Reg. 4-8 2500 Optional
4 76 2 3/8" API Reg. 4-8 3000 Optional
5 76 2 3/8" API Reg. 4-8 4000 Optional
6 76 2 3/8" API Reg. 4-8 5000 Optional
7 76 2 3/8" API Reg. 4-8 6000 Optional
8 76 2 3/8" API Reg. 4-8 7000 Optional
9 89 2 3/8" API Reg. 4-10 1500 Optional
10 89 2 3/8" API Reg. 4-10 2000 Optional
11 89 2 3/8" API Reg. 4-10 3000 Optional
12 89 2 3/8" API Reg. 4-10 4000 Optional
13 89 2 3/8" API Reg. 4-10 5000 Optional
14 89 2 3/8" API Reg. 4-10 6000 Optional
15 89 2 3/8" API Reg. 4-10 5000 Optional
16 89 2 3/8" API Reg. 4-10 7620 Optional
17 89 2 3/8" API Reg. 4-10 9144 Optional
18 102 2 7/8" API Reg. 8-10 1500 Optional
19 102 2 7/8" API Reg. 8-10 2000 Optional
20 102 2 7/8" API Reg. 8-10 3000 Optional
21 102 2 7/8" API Reg. 8-10 4000 Optional
22 102 2 7/8" API Reg. 8-10 4500 Optional
23 102 2 7/8" API Reg. 8-10 5000 Optional
24 102 2 7/8" API Reg. 8-10 6000 Optional
25 102 2 7/8" API Reg. 8-10 7620 Optional
26 102 2 7/8" API Reg. 8-10 9144 Optional

140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells140mm Dth Drill Pipe Api Standard For Open Hole Drilling And Geothermal Wells
