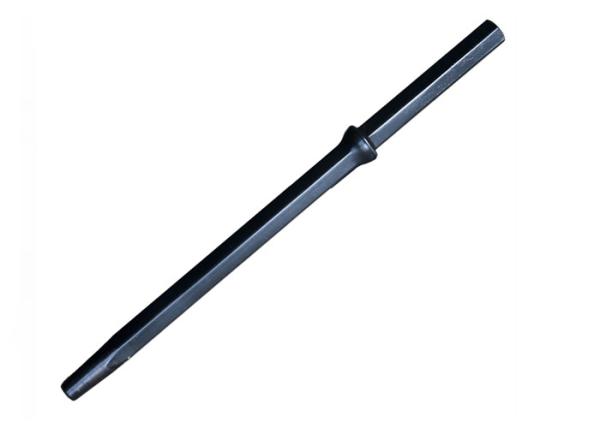

Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
Specifications
Brand Name :
MIROC by KSQ
Model Number :
H22-12D-7200
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
5 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 units per month
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
Product Name :
Tapered Drill Rod
Material :
Carbon Steel
Processing Type :
Forging
Use :
Ore Mining, Quarry
Usage :
Small Hole Drilling
Advantage :
Using same technology like Atlas's and carbide design like
Shank Type :
22mm*108mm
Length :
7200mm
Rod type :
Hexagonal
Rod Diameter :
22mm
Taper :
12 degree
Weight :
22.2
Description

Fully Carburized Rock Drill Rods 12 Degree Tapered Drill Rod for Mining

Taper drill rod usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. available from 0.6 meter to 3.6 meters in length—are measured from the collar to the rock drill bits end.

Product Description:
For drilling medium-hard to hard and abrasive rock formations,Taper angles of 11 and 12 degrees are used by a hand held drill machine like YT28B, YT29A, Y24, YT24, Mobile rock drill pneumatic and hydraulic in underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc.

Product Advantage:

Taper Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.

Hexagonal Shank 22*108mm Taper Drill Steels

Product name Hex Taper drill rods
Material High quality carbide and steel
Process Forging
Usage Rock drilling, coal mining and geological drilling
Taper degree 12 degree
Length 7200mm
Weight 22.2kg
Shank H22*108mm
Delivery 1-5 days for sample, batch products depend on order quantity
Packaging Bundled with steel wire, 5 pieces are bundled together or as client's requirement
Shipping Samples are shipped by express, batch products are shipped by sea or by air

Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining

Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining

Specification of Other Integral Drill Steels:

MIROC Small Hole Drilling Tools
Taper Tools 12 Degree, Hex Tapered Rod, Shank 22x 108mm
Length Weight Part Number Product Code
mm ft kg
610 2 2.2 4148300291 H22-12D-610
1220 4 4.1 4148300292 H22-12D-1220
1830 6 5.9 4148300293 H22-12D-1830
2000 6 5/9 6.4 4148300294 H22-12D-2000
2435 8 7.8 4148300295 H22-12D-2435
2600 8 1/2 8.3 4148300296 H22-12D-2600
3200 10 1/2 10.1 4148300297 H22-12D-3200
3655 12 11.5 4148300298 H22-12D-3655
4000 13 1/8 12.6 4148300299 H22-12D-4000
4800 15 3/4 14.9 4148300300 H22-12D-4800
5600 18 3/8 17.4 4148300301 H22-12D-5600
6400 21 19.8 4148300302 H22-12D-6400
7200 23 5/8 22.2 4148300303 H22-12D-7200
8000 26 1/4 24.6 4148300304 H22-12D-8000

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd.

is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

Our productions are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

Fully Carburized Rock Drill Rods Tapered Drill Rod for Mining
