Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
Specifications
Brand Name :
MIROC by KSQ
Model Number :
H22 Integral Drill Rod
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
5 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 units per month
Delivery Time :
5-15 Working Days
Packaging Details :
Carton Box or Wooden Box
Machine Type :
Drilling Tool
Material :
Carbon Steel
Processing Type :
Forging
Use :
Ore Mining, Quarry
Application :
Retail, Construction works , Energy & Mining, Quarry
Usage :
Small Hole Drilling
Advantage :
Using same technology like Atlas's and carbide design like
Suitable Rock :
Granite and marble
Length :
400mm-6400mm
Rod type :
Hexagonal
Rod Diameter :
22mm
Bit Diameter :
24-44mm
Description

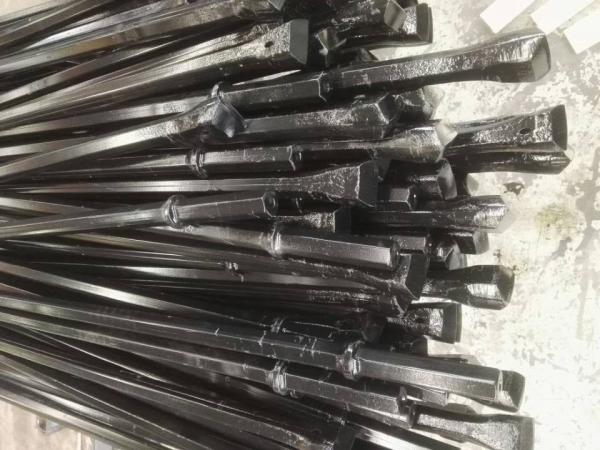

Shank 108x22mm Integral Drill Steel Rod For Small Hole Drilling and Rock Mining Drill

Product Description:

Integral drill rods are ideal in small hole drilling, all integral drill rods consist of hex. rods with integrated cemented carbide chisel-shaped bit heads. With the same steels as and the best carbides made in China, we are supplying different lengths of integral drill rods with different head diameters:
Shank sizes: Hex. 19mm, Hex. 22mm;
Head diameters: 26mm ~ 42mm;
Effective lengths: 400mm ~ 7000mm;

Product Name: hard rock Mining Integral drill steel,Integral drill rod
Types Tapered drill rods, Integral drill rods, Plug hole rods
Application:: Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Material: High quality carbide and high quality steel
MOQ: No requirement for testing and trial order
We can produce as your request of carbide size, different length of drill rods.
Types of drill rods Specifications Length (mm) Shank Weight (kg)
Tapered drill rods Taper Angle: 4, 6, 7, 11, 12 degree 400mm to 8000mm Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm 1.7 - 24.9
Integral drill steel Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm 400mm to 4800mm 3 – 15.4
Plug hole rods Chisel bit diameter: 17mm, 20mm, 22mm 150mm to 710mm 0.6 - 2.9

Hexagonal Shank 22*108mm Integral Drill Steels

Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length

Shank Size Length Diameter Weight
mm mm Foot/inch mm inch kg
H22x108mm 800 2’ 7 1/2’’ 34 1 11/32 3.0
1600 5’3’’ 33 1 5/16 5.4
2400 7’ 10 1/2’’ 32 1 1/4 7.9
3200 10’6’’ 31 1 7/32 10.3
4000 13’1 1/2’’ 30 1 3/16 12.6
4800 15’9’’ 29 1 5/32 15.1
5600 18’4 1/2’’ 28 1 1/8 17.6
6400 21’ 27 1 1/16 19.9
7200 23’71/2’’ 26 1 1/32 22.3

Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length

Product Advantage:

Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.

Application:
Dimensional Stone Quarrying Industry
Underground Mining
Tunneling

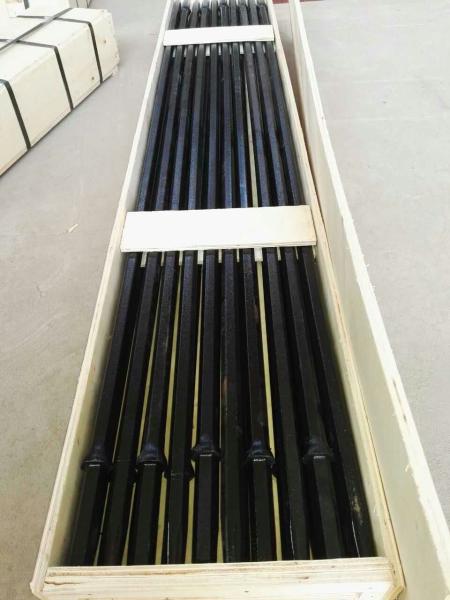

Packaging:

Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length

Our Company and Workshop

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length

Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length

Small Hole Drilling Integral Drill Steel Rod Shank 108x22mm 400mm ~ 7000mm Length
