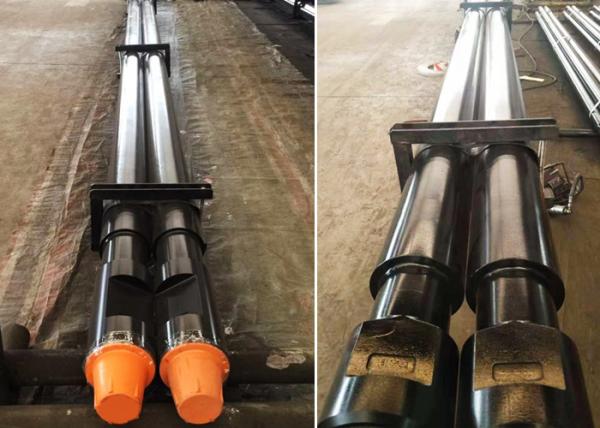

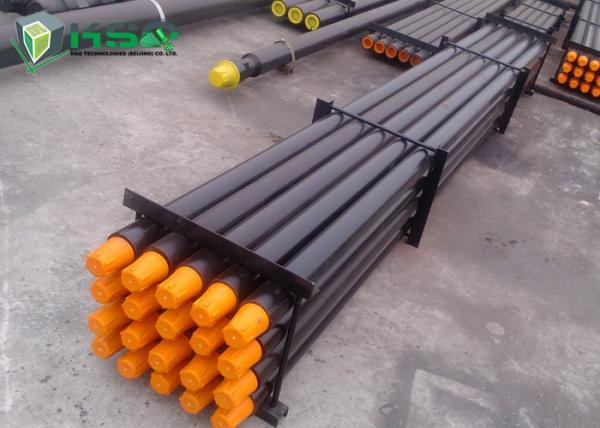

2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
Specifications
Brand Name :
MIROC by KSQ
Model Number :
DTH Drill Pipe
Certification :
API, ISO9001
Place of Origin :
China (Mainland)
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Pieces per Year
Delivery Time :
5-15 Working Days
Packaging Details :
Tray or Wooden Box
Machine Type :
Drilling Machine
Use :
Well Drilling,Ore Drilling
Application Industries :
Construction works , Energy & Mining
Usage :
Down the Hole Drilling
Diameter :
76mm-140mm
Length :
1000mm-6000mm
Wall Thickness :
5-12mm or As Requirement
Thread :
API 2 3/8'' REG
Description

Manufacturing Supplier / DTH Drilling Pipe / API Standard Drill Rod / Well Drilling

DTH drill pipe is one of important component for DTH drilling system. Hanlinsky provides the full range of drilling bits for DTH Drilling, which are available with different diameters and widely used in open-pit mining, underground mining, water well drilling and geothermal drilling. For superior quality, high performance and durability, our DTH drill pipes enjoy the great reputations from different countries, such as Australia, South Africa, Chile, Mexico, Russia, Kazakhstan, Iran, Vietnam and so on.​

Products Parameters:

Pipe Diameter

89mm

Wall Thickness

5mm, 6mm, 8mm

Pipe Length

1000 - 6000mm

Wrench flat

57/65 mm

Joints Connection

2 3/8‘’ REG

Trigger Slot

57/64.5

(2”)50mm DTH drill pipe with API 2 3/8 REG 1000-3000m length

60mm DTH drill pipe with API 2 3/8 REG 1000-3000m length

(3”)76mm DTH drill pipe with API 2 3/8 REG 1500-3000m length

(3 1/2”)89mm DTH drill pipe with NC26( API 2 3/8 REG) 1500-3000m length

(4”)102mm DTH drill pipe with NC31( API 2 7/8 REG) 1500-6000m length

(4 1/4”)108mm DTH drill pipe with NC31( API 2 7/8 REG) 1500-6000m length

(4 1/2”)114mm DTH drill pipe with NC31( API 2 7/8 REG)or NC35 1500-6000m length

(5”)127mm DTH drill pipe with NC38( API 3 1/2 IF) 1500-6000m length

Product Advantage:

1. DTH drill pipe for water well and mining
2. Friction welded
3. Standard API thread
4. High straightness
5. Lighter weight

2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs

2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs

Specification of other DTH Pipes:

No. O.D. Thread Wall Thickness Length s-s Wrench
(mm) (pin/box) (mm) (mm) (pin/box)
1 76 2 3/8" API Reg. 4-8 1500 Optional
2 76 2 3/8" API Reg. 4-8 2000 Optional
3 76 2 3/8" API Reg. 4-8 2500 Optional
4 76 2 3/8" API Reg. 4-8 3000 Optional
5 76 2 3/8" API Reg. 4-8 4000 Optional
6 76 2 3/8" API Reg. 4-8 5000 Optional
7 76 2 3/8" API Reg. 4-8 6000 Optional
8 76 2 3/8" API Reg. 4-8 7000 Optional
9 89 2 3/8" API Reg. 4-10 1500 Optional
10 89 2 3/8" API Reg. 4-10 2000 Optional
11 89 2 3/8" API Reg. 4-10 3000 Optional
12 89 2 3/8" API Reg. 4-10 4000 Optional
13 89 2 3/8" API Reg. 4-10 5000 Optional
14 89 2 3/8" API Reg. 4-10 6000 Optional
15 89 2 3/8" API Reg. 4-10 5000 Optional
16 89 2 3/8" API Reg. 4-10 7620 Optional
17 89 2 3/8" API Reg. 4-10 9144 Optional

2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs2 3/8 Inch Dth Drill Pipe Reg 89mm For Dth Hammers And Well Drill Rigs
