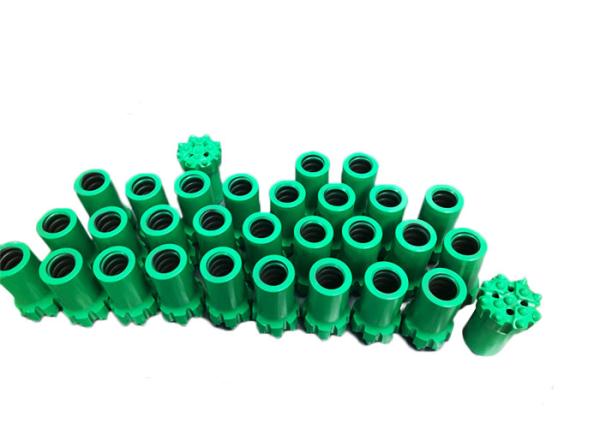

76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling
76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling
76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling
76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling
76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling
76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling
Specifications
Brand Name :
MIRCO
Model Number :
T38 Button bits
Place of Origin :
China
MOQ :
negociated one
Price :
negociated one
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
10-15 days
Packaging Details :
playwood box
Product name :
T38 76mm top hammer drill bit
Diameter :
76mm
Thread :
T38
Button size :
8x11mm,5x11mm
Processing Type :
Forging
Usage :
Drifting Tunneling Bench Drilling
Description

76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling

Hard Rock Drill bits

The hard rock drill bit is mainly used for blasting hole excavation of open pit rock drilling, underground mining, tunnelling and other infrastructure projects. The connection mode is mainly T-threaded connection and R-threaded connection. The top hammer hydraulic rock drilling rods equipped with drilling rigs and open-air drilling rigs are used to receive the energy transmitted by the rock drill to achieve the effect of breaking the rock.

At present, the most used in engineering is the spherical bit and the ballistic bit. Due to the special working environment of the thread bit, we require that the thread drill bit should have high wear resistance and impact resistance, and have sufficient toughness to cope with the complicated and harsh working environment. Our rock drilling bit is made of high-quality special steel, the alloy head is made of high-strength and toughness wear-resistant alloy, and the whole processing adopts special surface treatment, thus ensuring that our bit is more durable and has higher fatigue resistance.

Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

T38 Thread Hard Rock Drill Bit Specification

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300705
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300706
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300707
70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300708
70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300709
70 2 3/4 3×10, 1×10 6×12 35° 3 - 1.8 4148300710
76 3 4×11 8×11 40° 2 - 2.4 4148300711
76 3 5×11 8×13 35° 2 1 2.4 4148300712
76 3 3×11, 1×11 6×12 35° 3 1 2.6 4148300713
76 3 4×11, 1×11 8×12 35° 4 - 2.6 4148300714
76 3 4×11, 1×11 8×11 40° 4 - 2.6 4148300715
89 3 1/2 4×13 8×13 40° 2 - 3.3 4148300716
89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300717
89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300718
89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300719
89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300720
89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300721
Ballistic
64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300722
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300723
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300724
70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300725
70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300726
76 3 4×11 8×11 40° 2 - 2.4 4148300727
76 3 5×11 8×13 35° 2 1 2.4 4148300728
76 3 3×11, 1×11 6×12 35° 3 1 2.6 4148300729
76 3 4×11, 1×11 8×12 35° 4 - 2.6 4148300730
76 3 4×11, 1×11 8×11 40° 4 - 2.6 4148300731
89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300732
89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300733
89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300734
89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300735
89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300736

Button bit and Insert types
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions

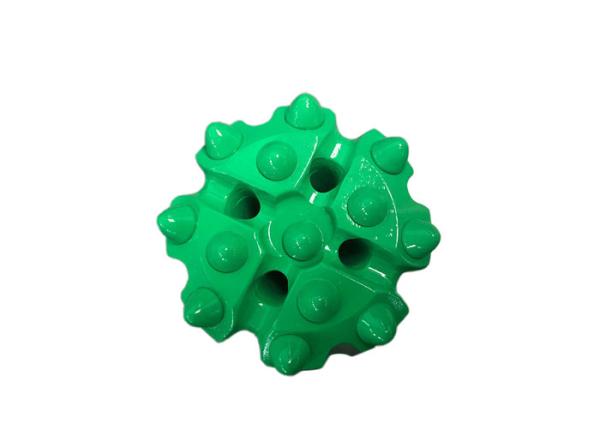

Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions

Conical Button Characteristics:

1. Fast Penetration
2. Best suited for smaller diameter bits

3.Suited for non-abrasive drilling conditions

76mm T38 Hard Rock Drill Bits Ballistic Button Drill Bit Set For Mining Tunneling

About US

KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.

KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.

MIROC® Rock Drilling and Ground Support Tools include:


Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
