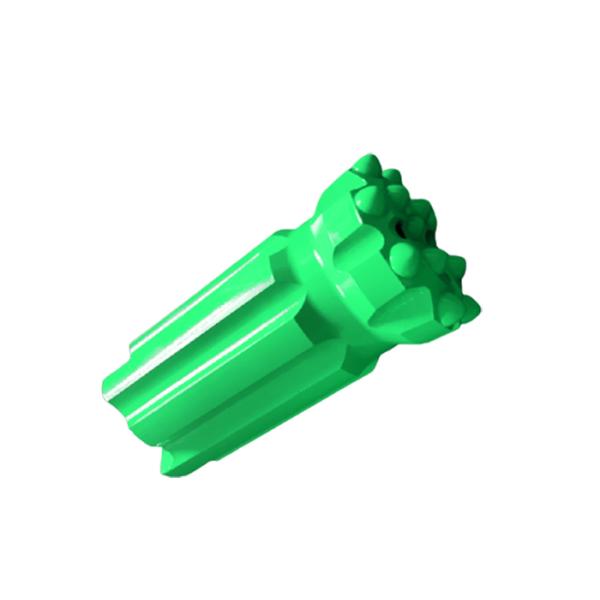

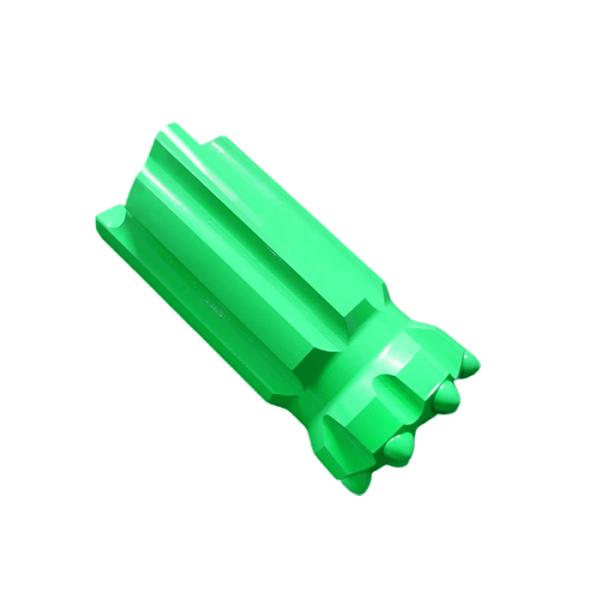

T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
Specifications
Brand Name :
MIROC
Model Number :
T38 64mm Retrac Button Bits
Certification :
ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000pcs/Year
Delivery Time :
15-20 days
Packaging Details :
wooden box
Type :
DRILL BIT
Material :
Tungsten Carbide
Use :
Ore Mining, rock drilling
Diam :
64mm
Application :
Metal mine,quarry,tunneling,hydro-electrical engineering etc.
Carbide Button :
Spherical Button,Ballistic Button,Ogive Button
Description

T38 64mm Drop Center Retrac Thread Drill Rock Button Bits


Thread Drill Button Bits
T38 64mm Drop Center Retrac Thread Drill Rock Button Bits
Thread Drill Button Bits cover regular, retrac and reaming types. With stronger button-fixing ability, longer service life, better wear-resistance and impact-resistance performance, they are widely used in tunneling, underground mining, open pit mining, anchoring and other large-scale construction projects.

Product Advantage

1:Independently researched and developed alloys with high strength and good abrasion resistance;
2:Independently researched and developed world-class production equipment, advanced production technology,ensuring product quality stability.
3:Wide range of products, matching different working conditions.

T38 Retrac Button Bit Specification:

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle front Side kg
Spherical
64 2 1/2 4×10 8×10 30° 2 - 2.2 4148300737
64 2 1/2 3×10, 1×10 6×11 35° 3 - 2.2 4148300738
70 2 3/4 4×11 8×11 40 2 - 2.4 4148300739
70 2 3/4 3×10, 1×10 6×13 35° 3 - 2.4 4148300740
70 2 3/4 4×10, 1×10 8×11 35° 4 - 2.4 4148300741
76 3 4×11 8×11 40 2 - 3.3 4148300742
76 3 4×11, 1×11 8×10 35° 4 - 3.3 4148300743
76 3 4×11, 1×11 8×12 35° 4 - 3.3 4148300744
89 3 1/2 4×13 8×13 40 2 - 4.8 4148300745
89 3 1/2 5×13 8×13 35° 2 - 4.8 4148300746
89 3 1/2 6×11 8×12 35° 2 - 4.8 4148300747
89 3 1/2 4×11, 1×11 8×13 35° 4 - 4.8 4148300748
89 3 1/2 4×13, 1×13 8×13 35° 4 - 4.8 4148300749

T38 64mm Drop Center Retrac Thread Drill Rock Button BitsT38 64mm Drop Center Retrac Thread Drill Rock Button Bits
