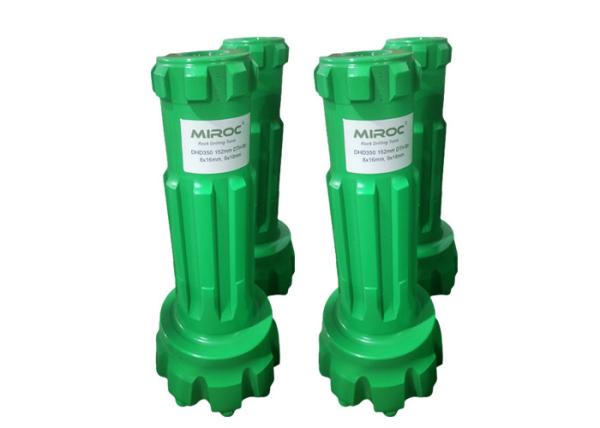

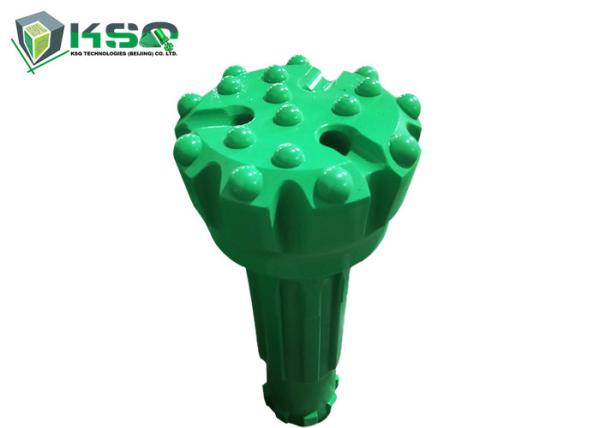

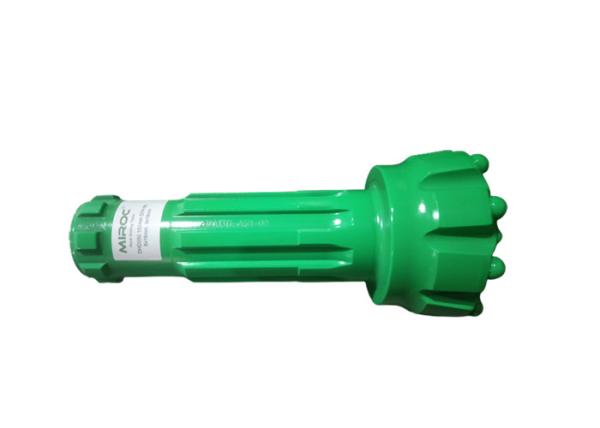

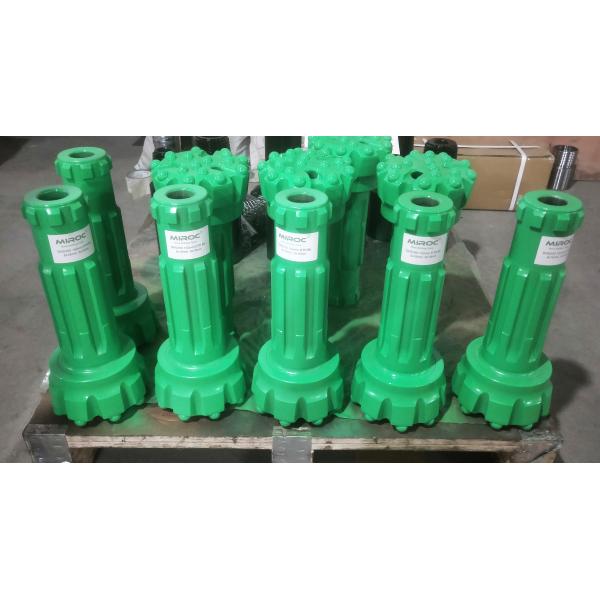

DHD350 152mm Hole Hammer Drilling Dth Bit
DHD350 152mm Hole Hammer Drilling Dth Bit
DHD350 152mm Hole Hammer Drilling Dth Bit
DHD350 152mm Hole Hammer Drilling Dth Bit
DHD350 152mm Hole Hammer Drilling Dth Bit
DHD350 152mm Hole Hammer Drilling Dth Bit
Specifications
Brand Name :
MIROC
Model Number :
DHD350 152mm
Certification :
ISO
Place of Origin :
CHIAN
Type :
DTH hammer bit
Material :
High Manganese Steel, Carbide
Use :
Ore Mining
Model Type :
Cop, QL, SD, DHD, NUMA, Mission,
Diameter :
57mm to 660mm
Steel Grade :
FF710
Color :
Red, Yellow, Gold,Green,
Use Air Compressor :
Low/High air pressure drill bits
Aplication :
Quarry drilling,coal mining,DTH drilling
Advantage :
High-efficiency
Description

DHD350 152mm Hole Hammer Drilling Dth Drill Bit

High pressure DHD350 hammer bit Description: In DTH drilling, drill rods and bits are the most important parts of the drilling process. When working, the drill rods transmit the necessary feed force and rotation to hammer and bit plus compressed air or fluids for the hammer and flushing of cuttings, the hammer is located between the drill rod and bit. As the hole gets deeper, the length of drill rod must be increased, so one and one drill rods are needed to increase the total length of the drill rods.

Flat Face
An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.

Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Semi-Ballistic/Parabolic Buttons
Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.

For 5" hammer Bit Dia. No. Gauge Front Weight Part No.
DTH bits shank mm inch Air Holes Buttons Buttons (Kg)
DHD350R/COP54 133 5 1/4" 2 7×φ16 6×φ14 15 DHD350-133
140 5 1/2" 2 7×φ18 7×φ14 16 DHD350-140
146 5 3/4" 2 8×φ18 7×φ14 17 DHD350-146
152 6" 2 8×φ18 8×φ14 17.5 DHD350-152
165 6 1/2" 2 8×φ18 8×φ16 18.5 DHD350-165

DHD350 152mm Hole Hammer Drilling Dth Bit
