Specifications
Brand Name :
MTH
Model Number :
38mm
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 pcs per month
Delivery Time :
25 days
Packaging Details :
plastic box and wooden case
Name :
Tapered Button Bit
Diameter :
38mm
Color :
Black
Weight :
500g
Material :
Tungsten alloy +42CRMO
Process :
Forging
Carbide :
YK05
Use :
Mining, Quarrying and Tunneling
Package :
Suitcase
Description

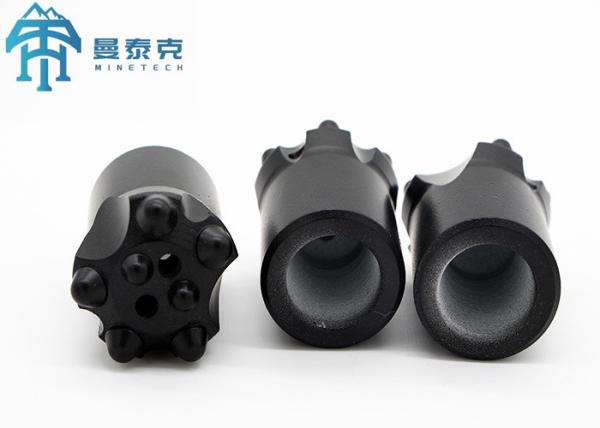

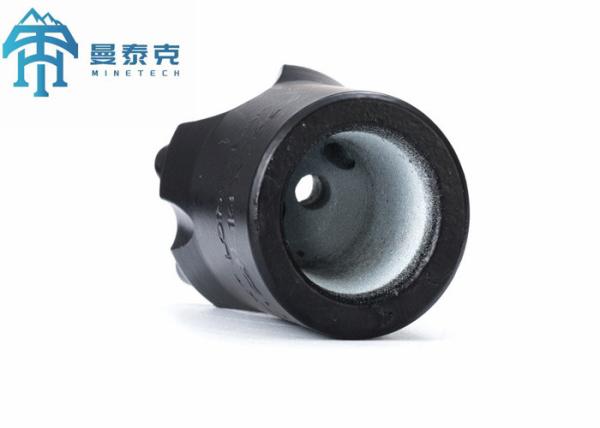

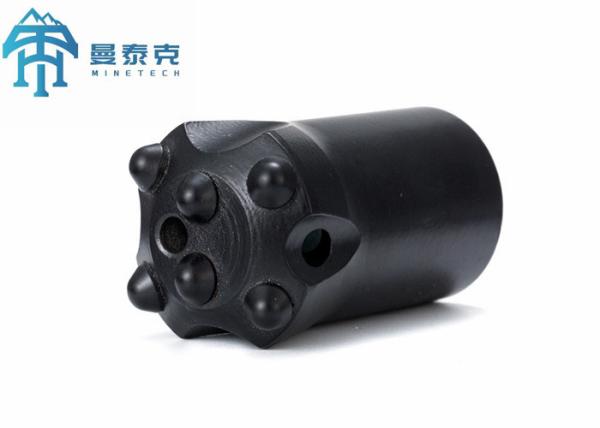

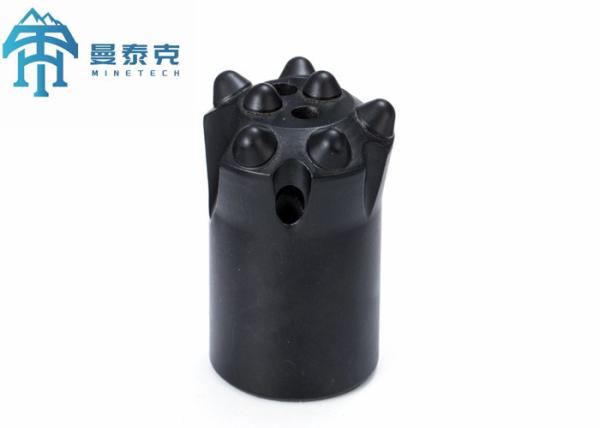

Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling

Product features:

Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Longyear, tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory, KK06 and KK06H carbide. Offers industry-leading strength and penetration rates for more productivity. Excellent straightness and hole clean quality. Both the shape, diameter and color can be customized as per your requirements.

Description:

The Drill Bits are made from grade hard alloy and special steel, generally matched with the light-duty rock drill, to drill the rock hole within diameter of 50mm. The drill tools are used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

Part Number

Bit Diameter (mm)

Bit Diameter (inch)

Front Buttons (No. x mm)

Gauge Buttons (No. x mm)

4148300223

32

1 1/4

2x7

5x7

4148300224

33

1 2/7

2x7

5x7

4148300225

33

1 2/7

2x7

6x7

4148300226

35

1 3/8

2x7

6x7

4148300227

38

1 1/2

2x7

5x9

4148300228

41

1 5/8

2x7

5x9

4148300229

35

1 3/8

2x7

5x9

4148300230

36

1 3/7

2x7

5x9

4148300231

38

1 1/2

2x7

5x9

4148300232

41

1 5/8

2x7

5x9
