64mm T38 Tungsten Carbide Button Bits Iso 9001
64mm T38 Tungsten Carbide Button Bits Iso 9001
Specifications
Brand Name :
MTH
Model Number :
64mm T38
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Delivery Time :
10-15 days
Packaging Details :
woode case
Name :
Thread Drill Bits
Machine type :
Drilling Tool
Diameter :
64mm
Material :
Carbon Steel
Weight :
1.8kg
Color :
Blue,Customized,yellow / black / red
Use :
Ore Mining,Quarry,blasting
Type :
Drill Bit,Carbide Bit,Rock drilling tools,Thread Button Bit
Usage :
Mining or Quarry or Well Drilling,Rock Drilling,Hole drilling
Sample :
YES
Advantage :
High Performance,high-efficiency,Factory price and high quality,Direct Manufacturer
Application :
Rock Drilling,DTH drill bits and roller bits,Mining,grey granite,Bench drilling and rock drilling
Description

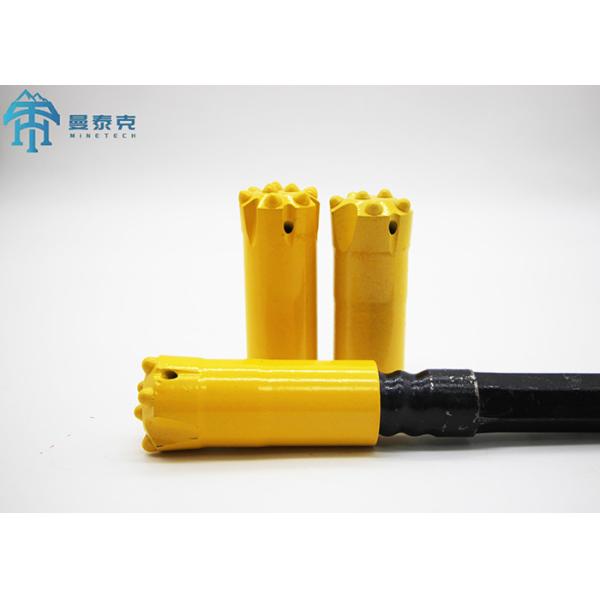

64mm T38 Tungsten Carbide Thread Button Bit, Thread Button Bit

Application:

Thread button bits are made by high quality alloy steel bar and tungsten carbides. Under the process of heat treatment.

Minetech’s drilling tools are tested in various working conditions. What’s more, Minetech can supply customized thread button bits upon receiving of different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

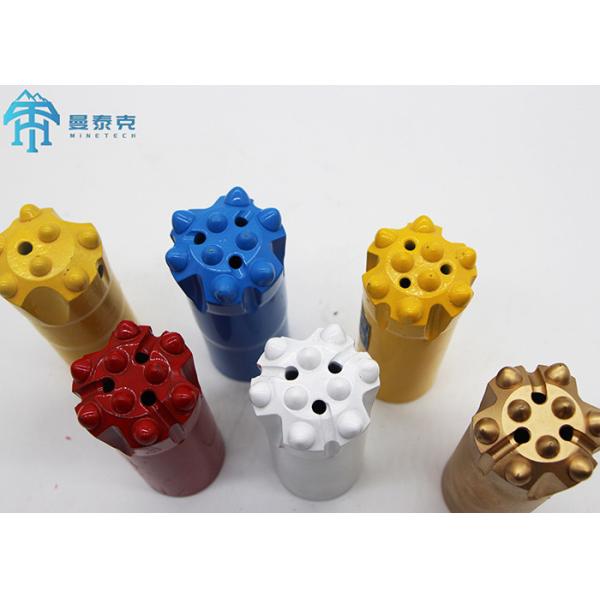

A comprehensive range of various button bits shown as below:

R32
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
R32 trhead button bits 41 4*9 2*8 1 1
43 4*9 2*9 1 1
45 4*10 2*9 1 1
R32 Retrac thread button bits 60 6*9 4*8 0 3
64 6*9 4*9 0 3
70 6*10 4*10 0 3
T38
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
T38 trhead button bits 57 5*11 3*10 1 1
64 5*12 3*11 1 1
76 5*14 3*12 1 2
T38 Retrac thread button bits 60 8*9 3*9 2 2
64 8*9 4*9 2 2
70 8*10 4*10 2 2
76 8*11 4*10 2 2
89 8*12 5*12 2 2
T45
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
T45 trhead button bits 70 6*11 4*10 0 2
76 6*13 4*10 0 2
89 8*12 5*12 2 2
102 8*13 6*12 2 2
115 8*14 6*13 2 2
T45 Retrac thread button bits 70 8*11 4*10 2 2
76 8*11 4*10 2 2
80 8*12 5*11 2 2
89 8*12 6*11 2 2
102 8*13 6*12 2 2
T51
Name Diameter Tip size(mm) Flushing holes
mm gauge front side front
T51 trhead button bits 89 8*12 5*12 2 2
102 8*13 6*12 2 2
115 8*14 6*13 2 2
127 8*14 6*14 2 2
T51 Retrac thread button bits 89 8*11 5*12 2 2
102 8*11 6*12 2 2
115 8*12 6*13 2 2
127 8*12 6*14 2 2

Advantage:

Advanced production equipments and testing equipments. High wear resistance,high hardness and impact toughness.

Description:

Thread button bits are made by high quality alloy steel bar and tungsten carbides. Under the process of heat treatment, Minetech’s drilling tools are tested in various working conditions. What’s more, Minetech can supply customized thread button bits upon receiving of different drilling application, the bits are suitable in drilling with soft rock, loose-medium rock and hard rock.

Packing:

Using ply-wooden cases and pallet for package to protect the products and avoid the damaging during transportation. Also we can customize package according to your special requests.
