Specifications
Brand Name :
MTH
Model Number :
button bit
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Delivery Time :
20-30 days
Packaging Details :
Wooden Box
Name :
Threaded Drill Bits
Diameter :
40 ~ 150mm
Color :
Blue, black,yellow and so on.
Usage :
Mining,construction and so on
Weight :
2.1kg
Materiales :
Tungsten Carbide
Packing :
Plastic box o Wooden Box
Thread :
R32 T38 T45 T51
Description

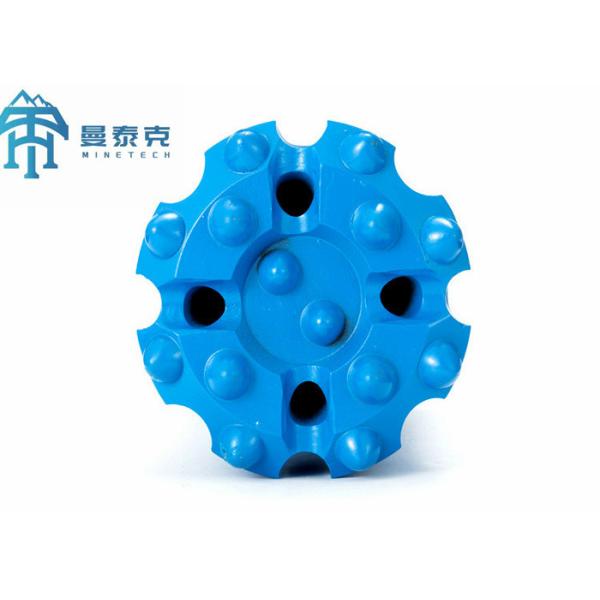

T45 76mm thread mining drill button bit Rock Drilling Bit

Product Information:

1. The threaded drill bit are equipped with the hydraulic drilling jumbo and used for crush rock ,and it is widely used in tunnel construction, large scale mine(open and underground )and large section tunnel advance in metal mine.

2. Our threaded button bit is made by best quality alloy steel bar and tungsten carbide ,through heat treatment like Atlas, it includes R32,R38,T45,T51 and so on. And the head diameter range from 45mm to 127mm.

3. Our special technology develops the sharpest ball tooth, and the bits with sharp buttons are suitable for hard and mid -hard rock, and it also have excellent wear resistance and driving speed.The bits with round buttons are widely used in hard rock ,with the advantage of high abrasion and impact resistance.

Specifications:

Thread Type dia tip size(mm) flushing holes weight (kg)
mm front gauge front side
R32 45 3*8 6*9 3 0 1.1
64 3*10,1*10 6*10 3 0 2.2
76 4*11,1*11 8*11 4 1 3.5
T38 64 3*11 6*12 3 0 1.8
76 4*11 8*11 2 0 2.4
89 4*13 8*13 2 0 3.3
T45 70 4*11 8*11 2 0 2.4
76 4*11 8*11 2 0 2.6
89 4*13 8*13 2 0 4.6
102 5*14 8*14 2 0 5
T51 89 4*13 8*13 2 0 5.3
102 4*14 8*14 2 0 7.3
115 6*14 8*14 2 0 9.8
127 8*14 8*16 2 1 12

Company Profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
