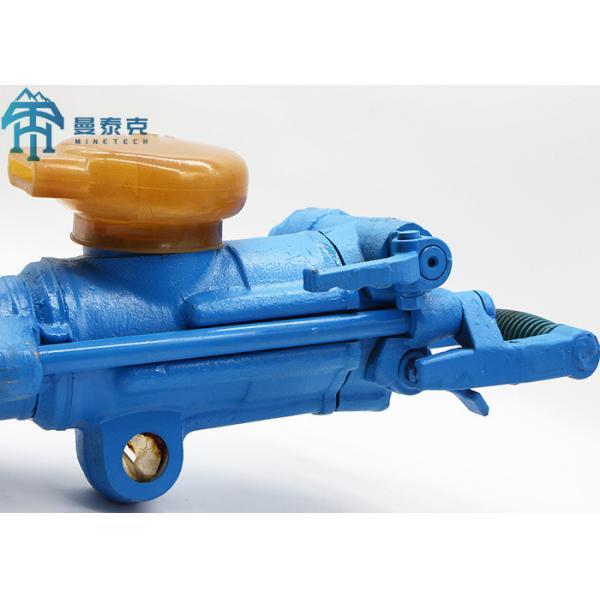

YT28 Hand Held Rock Drill Pneumatic Portable Tunnel Boring Drilling Machine Jack Hammer With Air-leg
YT28 Hand Held Rock Drill Pneumatic Portable Tunnel Boring Drilling Machine Jack Hammer With Air-leg
YT28 Hand Held Rock Drill Pneumatic Portable Tunnel Boring Drilling Machine Jack Hammer With Air-leg
YT28 Hand Held Rock Drill Pneumatic Portable Tunnel Boring Drilling Machine Jack Hammer With Air-leg
Specifications
Brand Name :
MTH
Model Number :
YT28
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pieces per month
Delivery Time :
10-15 days
Packaging Details :
wooden case
Name :
Pneumatic portable drilling machine/Hand held rock drill/jack hammer,Small pneumatic tunnel rock drill machine
Product Type :
Drilling Equipment
Package :
wooden
Usage :
mining used,Rock drilling
Weight :
28kg
Color :
Yellow,green
Drilling diameter :
34-42mm
Description

YT27 Hand Held Rock Drill Pneumatic Portable Tunnel Boring Drilling Machine Jack Hammer with air-leg

Product descriptions:

The rock drill is used for rock drilling, blasting holes and other drilling works in quarries,tunnels small coal mines and other
construction works.

Product specification:

PRODUCT SPECIFICATION
The parameter name Unit The parameter value
Weight kg ≈28
Length mm 661
The cylinder diameter mm 82
Piston stroke mm 60
Gas consumption L/s ≤65
Drilling and frequency Hz ≥37
Impact energy J ≥70
borehole speed mm/min ≥475
The borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22×108±1

Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
