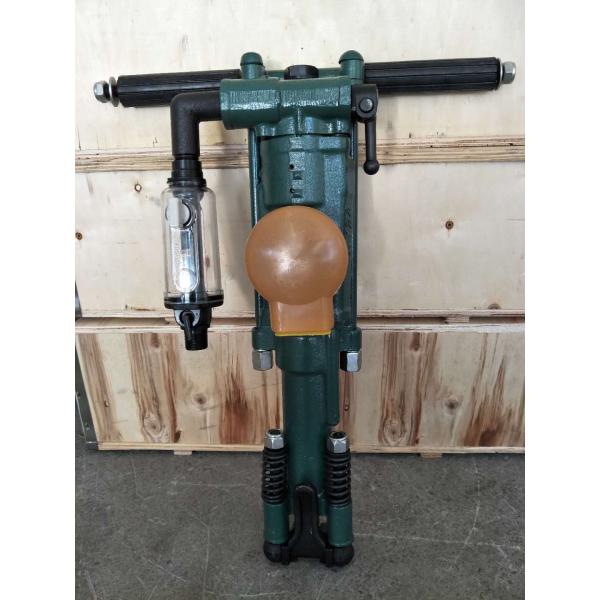

Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel
Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel
Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel
Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel
Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel
Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel
Specifications
Brand Name :
Minetech
Model Number :
Y24 YO18
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
30000 pieces per month
Delivery Time :
15-30 days
Packaging Details :
1/carton
Product Name :
Pneumatic Drilling Rig
Key Words :
Jack Hammer
Type :
Rotary Drilling Rig
Drilling Diameter :
34mm-42mm
Drilling Depth :
Max.5m
Shank :
22*108
Weight :
24kg
Description

Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel

Product Description

Y-24 type handle chisel rock machine is the modification product of our factory's Y24 type air feet chisel rock machine with advanced level in domestic, Suitable to be the secondary explode in oversea chisel rock station and downward boring task. It except keep the best performance of national best quality product Y24 type chisel rock machine, also strengthen the capacity at blow and wash blasting holes; so it more suitable to drill and chisel the downward blasting holes.

Specification of Pneumatic rock drill/jack hammer y24
Hand Held Rock Drill Y6 Y8 Y20 Y24 Y26 YH24
Weight (kg) 6 8 18 24 26 24
Air consumption (L/s) ≤9.5 9.5 25 55 ≤47 55
Drill hole diameter (mm) 20 20-24 34-42 34-42 34-42 34-42
Max.drilling depth (mm) 0.5 0.5 3 5 5 5
Shank (mm) 15*88 15 22*108 22*108 22*108 22*108
Air Leg Rock Drill YT19a Y20ly YT24 YT27 YT28 YT29a
Weight (kg) 18 18 24 26 26 26.5
Air consumption (L/s) 28 ≤25 ≤67 ≤85 ≤81 ≤65
Drill hole diameter (mm) 34-42 34-42 34-42 34-42 34-42 34-45
Max.drilling depth (mm) 3 3 5 5 5 5
Shank (mm) 22*108 22*108 22*108 22*108 22*108 22*108

Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel

Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel

Y24 Pneumatic Drilling Rig Hand Held for Mining Querry Tunnel

Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

The information you may like to know before order

1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

Within 10 days supplied from stock

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

a. Our sales team will response for your question within 24 hours (Holidays Excluded)

b. Technical Support will be available in any time

c. Free replacement will provide once the failure confirmed caused by our product quality
