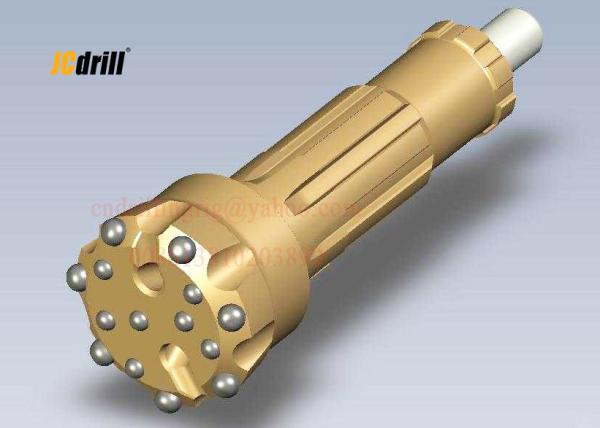

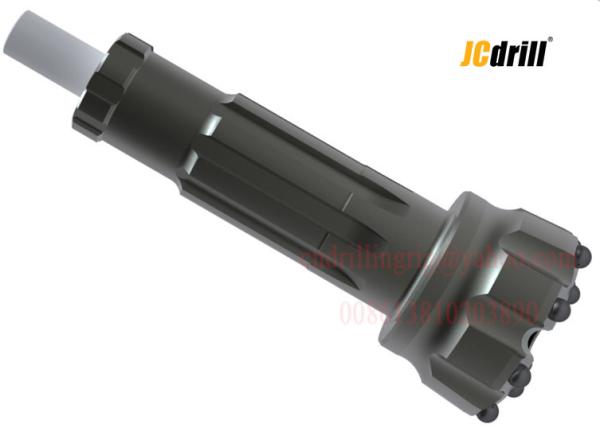

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
Specifications
Brand Name :
JCDRILLS
Model Number :
HD25-76mm
Certification :
ISO,CE
Place of Origin :
Hebei,China
MOQ :
5pcs
Price :
Negotation
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
20000pcs/Year
Delivery Time :
In stock or as order quantity
Packaging Details :
Standard export package
Type :
DTH Button bits
Usage :
Mining, Coal, Iron Ore, Gold Mining Drilling
Material :
Tungsten Carbide
Shank :
IR CIR
Button Bit Shape :
Spherical And Ballistic
Face Shape :
Flat Shape And Drop-center Shape
Body Type :
Normal Type And Retract Type
Angle :
76-90mm
Flushing Hole :
2
Description

76mm middle pressure 3inch dth hammer button bits for small hole drilling by down the hole drilling method

Application

DTH Drill Button Bits are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special “stress relief” processes ensure consistent performance.

DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.

We can design and manufacture according to customer's requirement of the down the hole bits Diameter,No. air holes,carbide button shape and the face shape.

Characteristics

Product Name: rock drill tungsten carbide DTH button bits

Description:

rock drill tungsten carbide DTH button bits

DTH button bit are used for blast hole drilling.

Working with DTH hammer, mainly applied in Mining,

Marble quarry or well drilling and other construction projects.
Material: High quality carbide and High quality carbon steel
MOQ: No requirement for testing and trial order
Compatibility Series: COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc

Specification

Drill Bits Bit Dia.(mm) No.Air Holes Gauge Buttons Front Buttons

Weight

(kg)

 Parts No.

COP32

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling

 85 2 6×13 4×12 4.2 COP32-85
90 2 6×14 4×12 4.5 COP32-90
95 2 6×14 4×13 4.7 COP32-95
100 2 6×14 5×12 5.0 COP32-100
105 2 6×14 5×13 5.3 COP32-105

BR3

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling

 85 2 6×13 4×12 3.8 BR3-85
90 2 6×14 4×12 4.0 BR3-90
95 2 6×14 5×12 4.3 BR3-95
100 2 8×13 6×13 4.8 BR3-100
105 2 8×13 6×13 5.2 BR3-105

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling

Packing& Delivery ​

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling

Service

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process ​

3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling 3 Inch DTH Drilling Tools DTH Hammer Button Drill Bit For Small Hole Drilling
