50HP 600m Diamond Core Water Drilling Rig CE Passed
50HP 600m Diamond Core Water Drilling Rig CE Passed
50HP 600m Diamond Core Water Drilling Rig CE Passed
50HP 600m Diamond Core Water Drilling Rig CE Passed
Specifications
Brand Name :
JCDRILL
Model Number :
JXY600
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1Set
Price :
Negotation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000set/year
Delivery Time :
1week
Packaging Details :
Standard Export package
Drilling Depth :
0-600m
Drilling Diameter :
75-600mm
Drill Pipe Length :
4.2m
Usage :
water well drilling
Drilling Methold :
DTH Drilling & Mud Drilling
Rotation Speed :
0-80rpm
Engine Power :
50HP
Warranty :
1year
Description

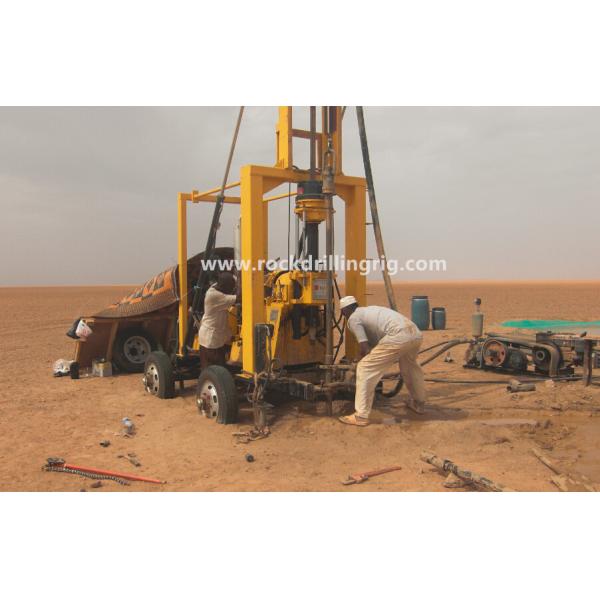

600m Water Well Drilling Rig Machine for Diamond Core Drill JXY600

The spindle trailer type water well drilling rig is equipped with a pressure gauge instructions at the bottom

of the bore pressure, easy to master the hole.The drilling rig has 8 grades forward rotation speed and 2

grades reverse rotation speed, wide speed adjustable range. Compact mechanical transmission

structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity. Falling tower

for hydraulic operation, convenient and reliable.

50HP 600m Diamond Core Water Drilling Rig CE Passed

Specification

Drilling depth m 75 219 273 500 600
Drilling Dia. mm 600 210 150 80 60
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42,50,60,76
Drilling angle 　 65-90°
Rotary Spindle
Spindle forward speed r/min 30-1050
Spindle reverse speed r/min 29-137
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity Kg 6000
Spindle Max.Torque N/M 3800
Main Winch (Hydraulic)
Single line lifting speed m/s 0.5-1.9
Tightrope diameter mm 12.5
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure m 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure m 450
Drilling rig Power(choose one between the following two)
Diesel engine kw/hp 38/50
Electric motor KW 22kw
Trailer
Loading Capacity T 4
Walking Speed km/h 25
Mini turning radius m 6.8
Weight&Size
Weight kg 3000
Dimension mm 3700×1850×3200

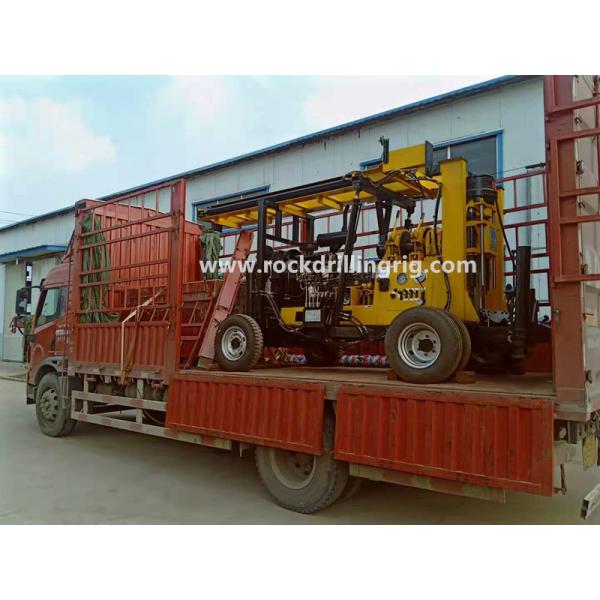

Shipping

50HP 600m Diamond Core Water Drilling Rig CE Passed

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series,

in this system, technology date and problem solve solution and preventive measures will be provided in

any maintain project, all the spare parts will be used in new OEM products with installation instructions,

packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the

order confirmation, last for the working life of the equipment.
