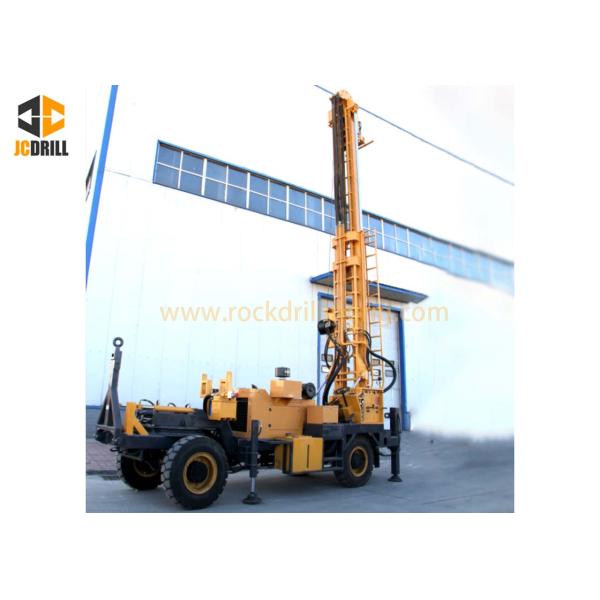

Water Well Drilling Rig 400m Deep Trailer Mounted Drilling Machine

Application

Drilling water wells for urban and rural life.

Drilling water wells for agriculture irrigation and industries.

Drilling for geotechnical survey.

Drilling construction engineering holes.

Drilling geothermal pump wells.

TWD400 water well drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.

This drilling rig TWD400 equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

Characteristics

1. This drilling rig is one type of normal-circulation rotator. The chassis of full-trailers is applied in this drilling rig which is being equipped with all-steel meridian tires with good off-road performance.
2. Driven by independent diesel engine, this drilling rig is powerful and full of great force.
3. This drilling rig is equipped with two hoisters, so three-speed (fast-middle-slow) lifting and lowering can be achieved to improve working efficiency of well drilling by big lifting force.
4. Equipped with four hydraulic support legs and two mechanical support legs. Hydraulic mechanical double-locking can be realized by means of oil-cylinder piston rod of each hydraulic support leg.
5. The drill tower applies telescopic structure of internal and external towers whose positioning can be finished through hydraulic cylinder.
6. This drilling rig is fitted with a 24KW generator which is convenient for customers to perform drilling operations.
