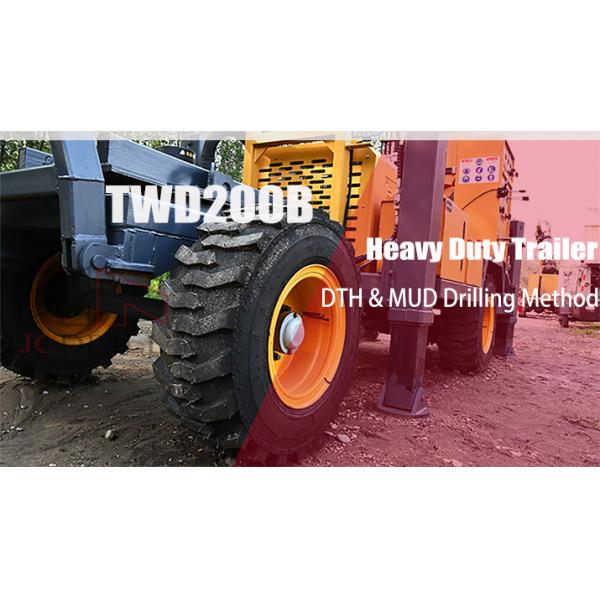

180m Trailer Mounted Drilling Rig 55Kw Diesel Engine
180m Trailer Mounted Drilling Rig 55Kw Diesel Engine
180m Trailer Mounted Drilling Rig 55Kw Diesel Engine
180m Trailer Mounted Drilling Rig 55Kw Diesel Engine
Specifications
Brand Name :
JCDRILL
Model Number :
TWD180
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
USD15500-17000
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
5-10 working days
Packaging Details :
drilling rig in nude package,spare parts in standard export wooden box
Type :
High Pressure Crawler Drill
Power type :
Diesel
Condition :
New
Product name :
Water Well Drilling Rig
Power(w) :
55KW
Application :
water well drilling rig mobile drilling rig,drilling well,hammer for drills
Drilling diameter :
90-305MM
Engine :
diesel engine
Drilling depth :
180M
Dimension(l*w*h) :
4000*1820*2150MM
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,commissioning and training
Description

180m trailer mounted 55Kw diesel engine water well drilling machine

>> Introduction

TWD Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

>> TWD series trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

>> TWD series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

180m Trailer Mounted Drilling Rig 55Kw Diesel Engine

180m Trailer Mounted Drilling Rig 55Kw Diesel Engine

>> Specification

Specification Unit TWD180 TWD200
Geology drilled All Kind All Kind
Drilling Type DTH&MUD DTH&MUD
Drill system and operation Hydraulic Hydraulic
Hole Diameter mm Φ90—Φ305 Φ90—Φ355
Hole Depth m 180 200
Rotation Torque Nm 4200-5600 4200-5600
Rotatin Speed rpm 45-115 0-115
Drill pipe diameter mm 76/89/102 76/89/102
Drill pipe length mm 3000 3000
Max.Feed Speed M/min 2-17 2-17
Max.lifting Speed M/min 1.5-12.4 1.5-12.4
Feed Stroke mm 350 350
Max.Pull back Capacity T 12 14
lifting force of Winch T 1.2(Optional) 1.5
Engine
Diesel Engine type 4Cylinder,water cooling 4Cylinder,water cooling
Diesel Engine Brand Quanchai Yuchai
Rated Horse power Kw 55 77
Compressor required (Optional)
Pressure Required Mpa 15-30 15-30
Air consumption m³/min 1.5-2.5 1.5-2.5
Mud Pump(Optional/Separate)
Model BW250 BW250/BW450
Displacement L/Min 250/450
Discharge pressure(Mpa) Mpa 2.5-7 2.5-7/2-5
Trailer
Trailer Type 4 wheels trailer,front wheels with steering
Mobility Towed by pickup or light truck
Dimension
Net Weight T 3750 4100
Shipping LXWXH mm 4000*1820*2150 4150*1850*2160
Ground Clearance mm 300 305

>> Certification

180m Trailer Mounted Drilling Rig 55Kw Diesel Engine

>> FAQ

Q: Are you original manufacturer?

 Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.

 A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

 A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
