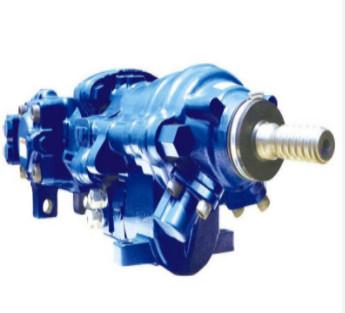

YDH 210 Hydraulic Rock Drill 175 Bar
YDH 210 Hydraulic Rock Drill 175 Bar
Specifications
Brand Name :
YDH
Model Number :
YDH 210
Place of Origin :
China
MOQ :
1PCS
Price :
Price negotiations
Payment Terms :
T/T
Supply Ability :
1+PCS+20 work days
Delivery Time :
20 work days
Packaging Details :
wooden box package
Models :
YDH 210 (YYG 180)
Percussion Oil Pressure :
175 bar
Percussion Oil Flow :
80 - 100 I/min
Rotation Oil Flow :
30 - 44 I/min
Rotation Oil Pressure :
150 bar
Output energy :
18 kW
Description

Rock Drilling Tools YDH 210 hydraulic rock drill Suitable for T45,T38,R38 or R32 drilling tools

Product feature of Rock Drilling Tools

The YHD210 contains high strength spline sleeves for T45,T38,R38 or R32 specifications.
Water injection sleeve can be high pressure water or wind as slag discharge medium.
The effective aperture is 43-115mm.

Product data of Rock Drilling Tools

Technical data
Percussion Oil Pressure bar 175
Percussion Oil Flow l/min 80 - 100
Rotation Oil Pressure bar 150
Rotation Oil Flow l/min 30 - 44
Rotation torque(max) Nm 830
Rotation speed(max) rpm 250
Percussion frequency min 2500-3700
Percussion energy J 300
Output energy kW 18
Drilling diameter mm 43 - 115
Weight kg 180
