Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148300579-4148300647
MOQ :
50
Packaging Details :
Carton Box or Wooden Box
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Certification :
ISO
Type :
Coupling Sleeves
Material :
High Manganese Steel, Tungsten carbide alloy
Use :
Ore Mining
Aplication :
connecting the top hammer machine
Color :
Required
Advantage :
High Strength
Description

Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve

Description
Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod,ensuring the ends touch for efficient energy transmission. Couplings are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.

Coupling sleeve for Extension Drill Rod connection.High quality of alloy steels and CNC machining guarantee our reliable and consistent quality control of coupling sleeves.when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission.

• R32 thread system
• Widely used in drifting and tunneling
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Standard Coupling

Applications
• Underground Mining
• Tunneling

Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

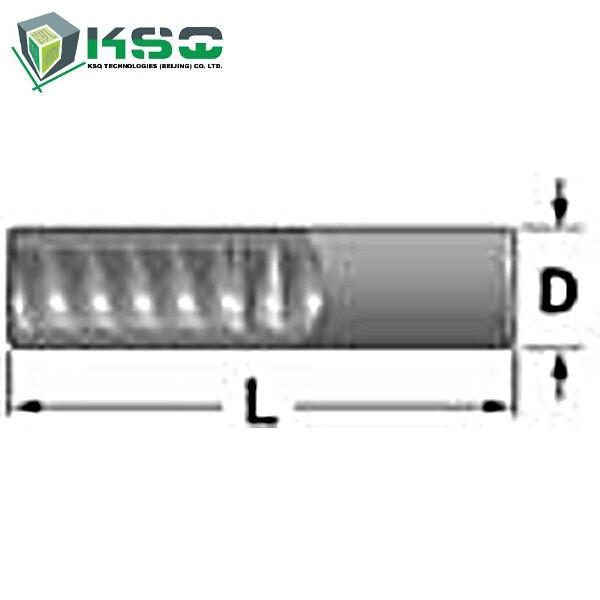

Specification

Part Number

Product Code and Brief
Description

Length
(mm)

Length
(inch)

Diameter
(mm)

Diameter
(inch)

 Thread

Weight
(kg)
4148300579

CS-R38-170, R32
Standard Coupling

 170 6 2/3 55 2 1/6 R38 1.8
4148300580

CS-T38-190, R32
Standard Coupling

 190 7 1/2 55 2 1/6 R38 2.0
4148300646

CS-R32-150, R32
Standard Coupling

 150 6 44 1 3/4 R32 1.0
4148300647

CS-R32-160, R32
Standard Coupling

 160 6 2/7 44 1 3/4 R32 1.1


Underground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling SleeveUnderground Mining R32 150mm 170mm 190mm Length Threaded Rod Coupling Sleeve
