High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148300233-4148300240
MOQ :
10 pieces
Packaging Details :
Carton Box or Wooden Box
Delivery Time :
15 days
Payment Terms :
T/T or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20000 pieces per month
Price :
USD$5-$20
Certification :
ISO9001
Product Name :
Tapered cross chisel bit
Material :
Carbon Steel
Machinery :
Tapered cross chisel bit for Jack Hammer
Processing Type :
Forging
Advantage :
High Performance With Competitive Price
Use :
Ore Mining
Color :
Green or Customize
Machine Type :
Drilling Tool
Description

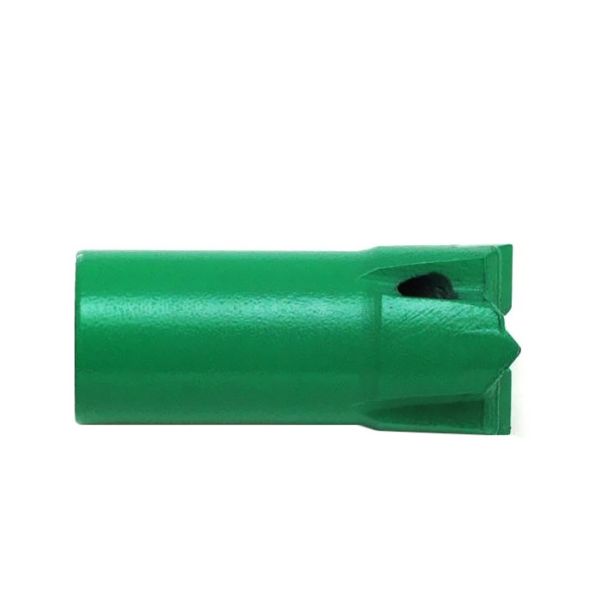

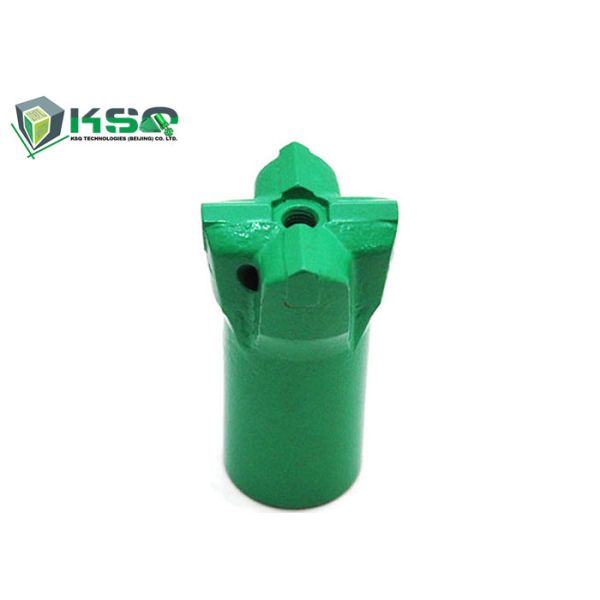

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining

Description

Taper chisel bit (cross bit, button bit) is widely applicable to mining industry, tunneling and underground engineering, open pit, construction drill, blast industry, civil engineering operations, road, gas line, pipe and trench projects, quarry work, rock anchoring and ground stabilization projects, water well industry, etc.


• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry


Color: Green, or Based on Customer requirements


Material: Tungsten carbide


Processing: CNC milling and proprietary heat treatment process


Type: 11° Tapered Cross Type Bit


Applications
• Dimensional Stone Industry
• Underground Mining
• Tunneling


Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


Specification

Part Number

Product Code and

Brief Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip Size

(W x H, mm)

Front

Flushing

Holes

Side

Flushing

Holes

Weight

(kg)
4148300233

CR29-11D-22, 11°

aper Cross Type Bit

 29 1 1/7 12 x 8 1 2 0.25
4148300234

CR30-11D-22, 11°

Taper Cross Type Bit

 30 1 1/6 12 x 8 1 2 0.26
4148300235

CR32-11D-22, 11°

Taper Cross Type Bit

 32 1 1/4 12 x 8 1 2 0.3
4148300236

CR33-11D-22, 11°

Taper Cross Type Bit

 33 1 2/7 12 x 8 1 2 0.32
4148300237

CR35-11D-22, 11°

Taper Cross Type Bit

 35 1 3/8 12 x 8 1 2 0.36
4148300238

CR36-11D-22, 11°

Taper Cross Type Bit

 36 1 3/7 12 x 8 1 2 0.39
4148300239

CR38-11D-22, 11°

Taper Cross Type Bit

 38 1 1/2 12 x 8 1 2 0.43
4148300240

CR41-11D-22, 11°

Taper Cross Type Bit

 41 1 3/5 14 x 8 1 2 0.49

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For MiningHigh Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining
