R32 41mm Mining Drill Bits 2 Inch Drilling Bit With Steel Inserts
R32 41mm Mining Drill Bits 2 Inch Drilling Bit With Steel Inserts
R32 41mm Mining Drill Bits 2 Inch Drilling Bit With Steel Inserts
R32 41mm Mining Drill Bits 2 Inch Drilling Bit With Steel Inserts
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
4148300553-4148300559
MOQ :
50
Packaging Details :
Carton Box or Wooden Box
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Description

R32 41mm Mining Drill Bits 2 Inch Drilling Bit With Steel Inserts

Description

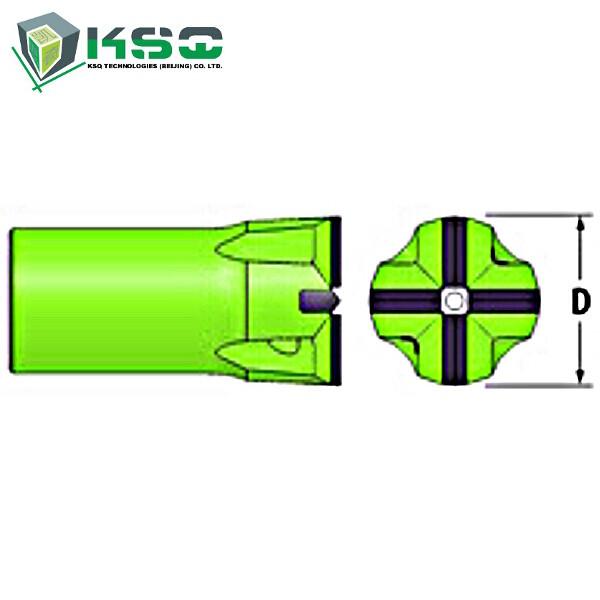

Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.


• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: R32 Cross Type Bit



Applications


• Dimensional Stone Industry
• Underground Mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification

Part Number

Product Code

and Brief

Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip

Size (W x H,

mm)

Front

Flushing

drill holes

Side

Flushing

drill holes

Weight

(kg)
4148300553

CR-41-R32, R32

Cross Type Bit

 41 1 3/5 16x10 1 4 0.7
4148300554

CR-43-R32, R32

Cross Type Bit

 43 1 2/3 16x10 1 2 0.8
4148300555

CR-45-R32, R32

Cross Type Bit

 45 1 7/9 16x10 1 4 0.9
4148300556

CR-48-R32, R32

Cross Type Bit

 48 1 8/9 16x10 1 4 0.9
4148300557

CR-51-R32, R32

Cross Type Bit

 51 2 16x10 1 4 1.2
4148300558

CR-57-R32, R32

Cross Type Bit

 57 2 1/4 16x10 1 4 1.3
4148300559

CR-64-R32, R32

Cross Type Bit

 64 2 1/2 18x13 1 4 1.5
