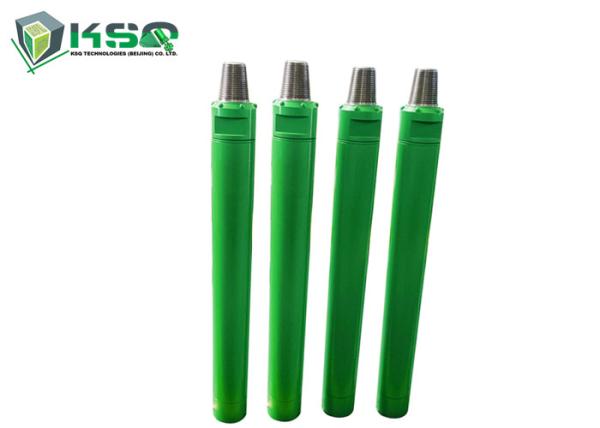

DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
Specifications
Place of Origin :
China
Brand Name :
MIROC
Model Number :
DTH Hammer
MOQ :
50
Packaging Details :
Wooden Plate
Delivery Time :
25 days
Payment Terms :
T/T or L/C
Supply Ability :
20000 pieces per month
Price :
negotiation
Certification :
ISO
Type :
DTH Hammer
Material :
Alloy Steel&Tungsten carbide
Use :
Mining&Construction&Water Well Drilling
Color :
According to your requirements
Quality :
100% quality similarity world top class brands
Advantages :
high quality and factory prices
Shank series :
COP, SD, DHD, BR, QL, CIR,BR,MISSION etc.
series :
low/middle/high air pressure dth hammer
Description

DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer

Description

For use on DTH440 Hammer

Spare Parts

Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: DTH440

Type Dth hammer
Material Carbon steel
Use Well Drilling,mining
Quality 100% quality similarity world top class brands
Advantages high quality and factory prices
Shank series COP,MISSION, SD, DHD, BR, QL, BR,CIR etc.
series low/middle/high air pressure dth hammer
Color According to your requirements


Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

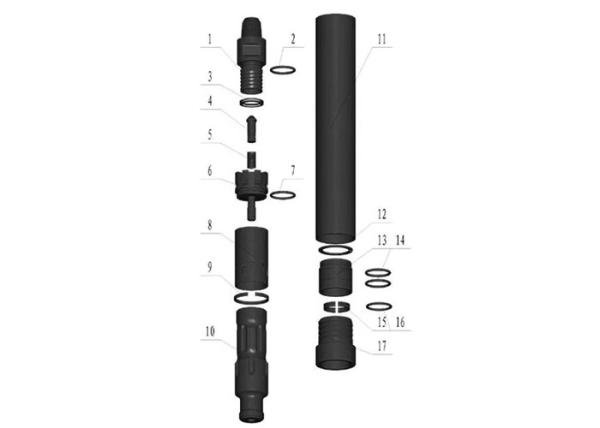

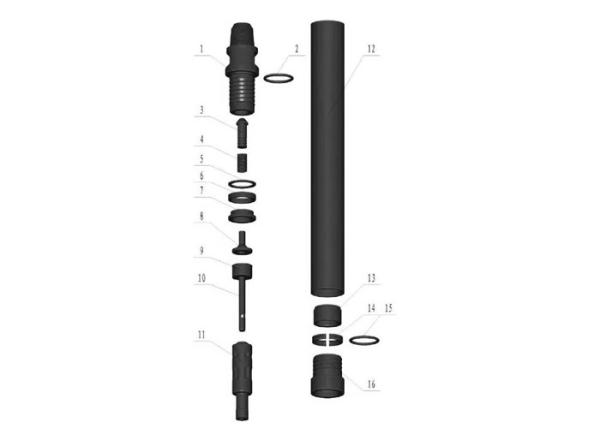

Part Number Product Code and Brief Description Quick Detail Description
4148302166 DTH440-01, Top Sub Spare Parts For use on DTH440 Hammer
4148302167 DTH440-02, Top Sub with O-Ring Spare Parts For use on DTH440 Hammer
4148302168 DTH440-03, Check Valve Dart Spare Parts For use on DTH440 Hammer
4148302169 DTH440-04, Check Valve Dart Spring Spare Parts For use on DTH440 Hammer
4148302170 DTH440-05, Make-up Ring Spare Parts For use on DTH440 Hammer
4148302171 DTH440-06, Compression Buffer Spare Parts For use on DTH440 Hammer
4148302172 DTH440-07, Check Valve Guide Spare Parts For use on DTH440 Hammer
4148302173 DTH440-08, Rigid Valves Spare Parts For use on DTH440 Hammer
4148302174 DTH440-09, Piston Spare Parts For use on DTH440 Hammer
4148302175 DTH440-10, Piston Case Spare Parts For use on DTH440 Hammer
4148302176 DTH440-11, Guide Sleeve Spare Parts For use on DTH440 Hammer
4148302177 DTH440-12, Bit Retainer Ring Spare Parts For use on DTH440 Hammer
4148302178 DTH440-13, Bit Retainer Ring with O-Ring Spare Parts For use on DTH440 Hammer
4148302179 DTH440-14, Driver Sub Spare Parts For use on DTH440 Hammer

DTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH HammerDTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH HammerDTH Hammer High Air Pressure Rock Blasting Water Well Drilling DTH Hammer
