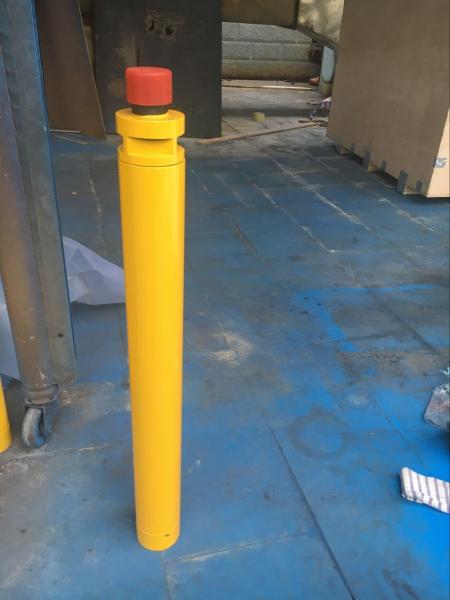

No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
Specifications
Brand Name :
MIROC
Model Number :
4148301607
Certification :
API
Place of Origin :
China
MOQ :
1 Piece CIR90 DTH Hammer
Price :
Negotiation
Supply Ability :
2000 pieces per month
Delivery Time :
25 days
Packaging Details :
Wooden Box
Payment Terms :
L/C, T/T
Name :
DTH Hammer
Series :
CIR90
Length :
800mm
Type :
No Foot Valve
Use :
Tunneling, Mining,Quarrying,Water Well
Color :
Green,Black ,Orange ,Blue,Golden
Description

CIR90 DTH Hammer with low air pressure 0.5-0.7MPa

Specification:

  • standard type, no foot valve
  • length: 800mm
  • external diameter: 80mm,
  • drilling hole range: 85mm-110mm,
  • working pressure: 0.5-0.7MPa,
  • air consumption: 0.7MPa 8m³/min
  • weight: around 20kg
Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
φ85-φ110 800(without bit) 80 20(without bit)
Working Pressure(Mpa) Air Consumption(m³/min): 0.7Mpa: 8m³/min
0.5-0.7 Bit Shank CIR 90

CIR90 DTH Hammer with high air pressure 0.6-1.5MPa

  • length: 770mm
  • external diameter: 80mm, drilling hole range: 88-110mm
  • working pressure: 0.6-1.5Mpa
  • air consumption: 0.8Mpa 4m3/min
  • bit shank: Cir90
  • weight: around 20kg
Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
φ88-φ110 770(without bit) 80 20(without bit)
Working Pressure(Mpa) Air Consumption(m³/min): 0.8Mpa: 4m³/min
0.6-1.5 Bit Shank

CIR 90

Advantages:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe

CIR90mm High Air Pressure DTH Hammer Basic Drawing:

No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa

No Foot Valve Type CIR90 DTH Hammer with Air Pressure 0.5 - 0.7 MPa
