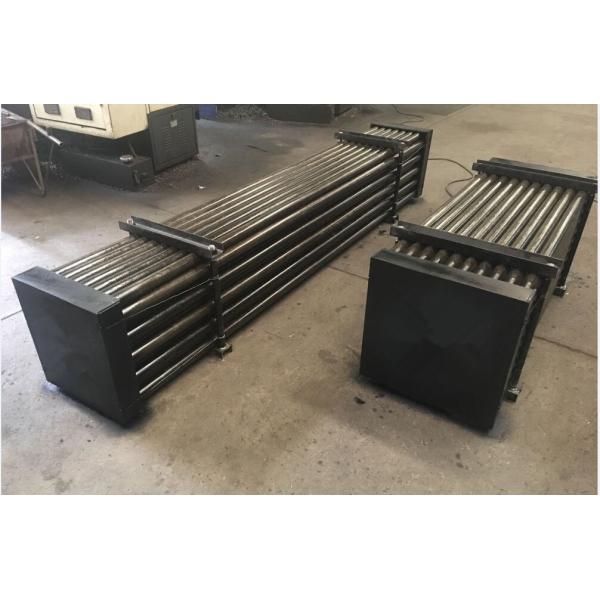

API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod
API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod
API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod
API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod
API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod
API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod
Specifications
Brand Name :
MIRCO
Place of Origin :
China
MOQ :
negociated one
Price :
negociated price
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
15-20 days
Packaging Details :
playwood box
Item :
drill rod/drill pipe
Type :
drill pipe/casing tube
Machine Type :
Drilling Tool
Material :
Carbon Steel
Processing Type :
Forging
Application :
Well Drilling, Ore Mining
heat treatment :
Yes
Description

API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod

Geological steel pipe-entire length thermal treatment, NC lathe with former cutters

Material:30CrMnSiA or 45MnMoB or XJY850 or BG850

Q series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters
Spec. Unit BQ NQ HQ PQ
OD/ID mm 55.6/46 71/60 89/77.8 114.3/101.6
Thickness mm 4.8 5.5 5.6 6.35
Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3
Weight kg/m 6.01 8.8 11.51 17.3
thread length mm 44.45 44.45 44.45 63.5
thread pitch thread/inch 3 3 3 2.5
box thread tooth height mm 0.76 0.76 0.76 1.17
pin thread tooth height mm 0.88 0.88 0.88 1.27
thread tooth angle . 29 29 29 29
tensile resistance(A series) kn 400 530 510 565
tensile resistance(B series) kn 450 615 625 660
bore depth m 1200 1000 900 800

QR series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters
Spec. Unit BRQ NRQ HRQ PRQ
OD/ID mm 55.6/46 69.9/60.3 88.9/77.8 114.3/101.6
Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3
Weight kg/m 6.01 8.8 11.51 17.3
thread length mm 42 42 41.91 63.5
thread pitch thread/inch 3 3 3 2.5
box thread tooth height mm 0.76 0.76 0.76 1.17
pin thread tooth height mm 0.88 0.88 0.88 1.27
thread tooth negative angle . 5 5 5 5
tensile resistance(A) kn 450 525 545 565
tensile resistance(B) kn 530 625.5 602 660
bore depth m

API Standard Drill Pipe NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod

About us

MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.

MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
