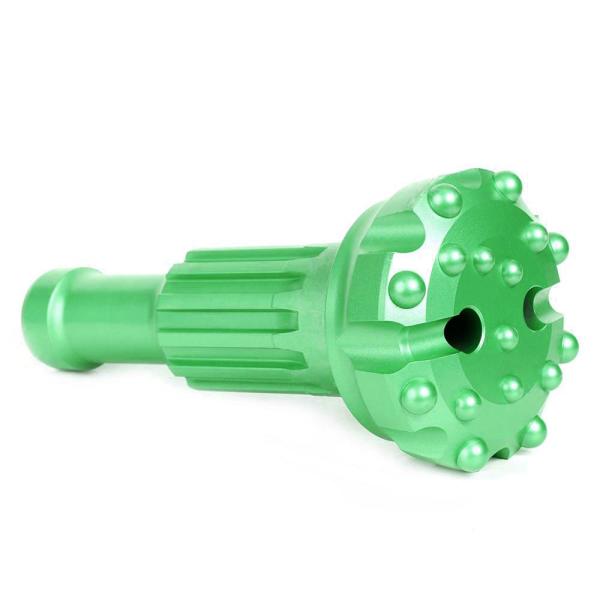

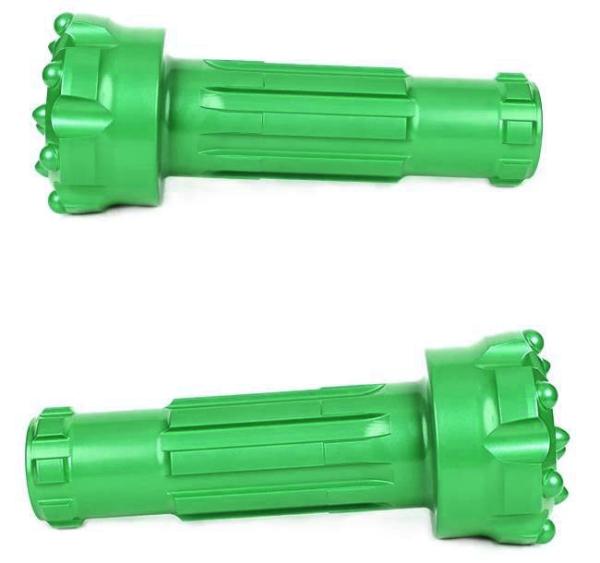

DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate
Specifications
Brand Name :
MIROC
Model Number :
DTH Button Bit
Place of Origin :
China
MOQ :
10 Pieces
Price :
negotiation
Supply Ability :
20000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton Box or Wooden Box
Name :
DHD3.5 BIT
Material :
42CrNiMoV / 40mnMoV,
Color :
Green / Yellow ,ect
Processing :
Forging
Certification :
Shandong, China (Mainland)
diameter :
90mm - 105mm
Description

DHD3.5 and M30 in 3'' High pressure DHD Bits with Good flushing effect to ensure high drilling rate

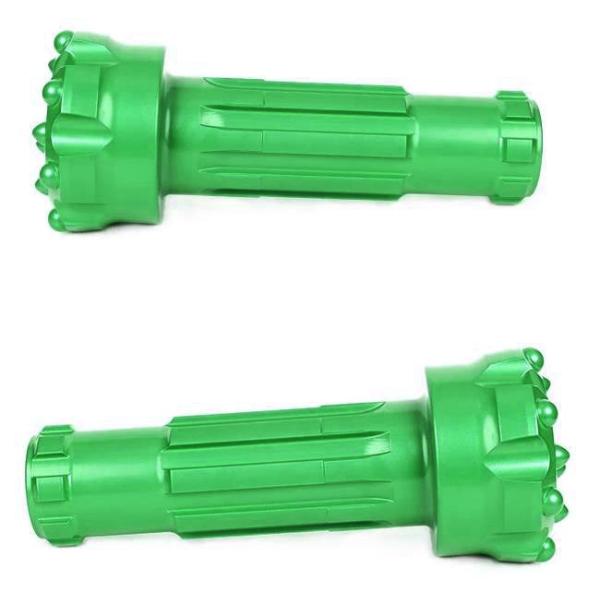

DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

Basic Information

Product

DTH Button Bits
Low Air Pressure CIR80, CIR90

3’’

DHD3.5, M30,

4’’

DHD340, SD4,QL40, M40

5’’

DHD350, SD5,QL50, M50

6’’

DHD360, SD6,QL60, M60

8’’

DHD380, SD8,QL80, M80

Color

Green, Gold, Black or based on customer requirements.

MOQ:

No MOQ required for testing and trial order

DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling RateDHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate

DHD3.5 M30 Green DTH Drill Bits With Good Flushing High Drilling Rate

Applications

• Underground mining

• Down the hole rock drilling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



DHD3.5 And M30 High Air Pressure DTH Bit Specification:

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge kg
DHD3.5 Ballistic button/Convex face
90 3 1/2 4×12,2×12 8×12 2 4.5 4148301219
95 3 3/4 4×12,2×12 8×12 2 4.8 4148301220
100 3 7/8 4×13,2×13 8×13 2 5 4148301221
105 4 1/8 4×14,2×14 8×14 2 5.5 4148301222
DHD3.5 Spherical button/Flat face
90 3 1/2 6×12 8×12 2 4.5 4148301223
95 3 3/4 6×12 8×12 2 4.8 4148301224
100 3 7/8 6×13 8×13 2 5 4148301225
105 4 1/8 6×14 8×14 2 5.5 4148301226
M30 Ballistic button/Convex face
90 3 1/2 4×12,2×12 8×12 2 4.7 4148301227
95 3 3/4 4×12,2×12 8×12 2 4.9 4148301228
100 3 7/8 4×13,2×13 8×13 2 5.3 4148301229
105 4 1/8 4×14,2×14 8×14 2 5.6 4148301230
M30 Spherical button/Flat face
90 3 1/2 6×12 8×12 2 4.7 4148301231
95 3 3/4 6×12 8×12 2 4.9 4148301232
100 3 7/8 6×13 8×13 2 5.3 4148301233
105 4 1/8 6×14 8×14 2 5.6 4148301234


We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.


Keywords

DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment

  • Acts, regulations, and other government guidelines that has to be followed

  • Significant differences in the way people work, mostly due to physical constraints

  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
