Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit
Specifications
Brand Name :
MIROC
Model Number :
Taper button bits
Certification :
API / GB
Place of Origin :
ShanDong China(Mainland)
MOQ :
50
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000 pieces per month
Delivery Time :
1-20 days
Packaging Details :
Carton / Wooden Box or Based on Customers
Material :
Tungsten Carbide
Color :
Green / Red
Process :
Forging
Advantage :
OEM
Use :
Hard rock drilling
Type :
Mining drilling tools
Description

Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

Tapered Button Bit , 7 ° , 11° , 12°
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 32 1x8 3x8 1 1 0.24
2 33 2x7 5x7 2 1 0.26
3 34 2x7 4x7 1 1 0.29
4 35 2x7 5x8 1 1 0.33
5 36 2x7 5x8 1 1 0.37
6 38 1x8 3x9 1 1 0.37
7 40 1x8 3x9 1 1 0.38
8 41 2x7 5x9 1 1 0.42
9 42 2x8 5x9 1 1 0.43

Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button BitHard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button BitHard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button BitHard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit

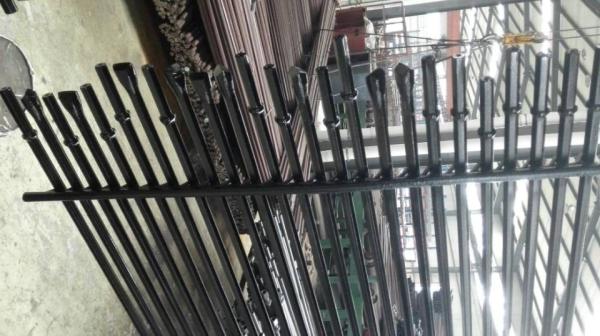

Chisel Bit Integral Drill Steel
Shank 19 x 108 mm (3/4” x 4 1/4”)
Length (mm) Bit Diameter (mm) Part Number
1 400 29 4148300000
2 500 29 4148300001
3 800 28 4148300002
4 1000 28 4148300003
5 1200 27 4148300004
6 1600 27 4148300005
7 2400 26 4148300006
8 3200 25 4148300007
9 4000 24 4148300008
10 400 24 4148300009
11 800 23 4148300010
12 600 27 4148300011
13 1200 24 4148300012
14 2000 24 4148300013
15 2400 24 4148300014
16 2700 24 4148300015
17 400 35 4148300016
18 800 34 4148300017

Hard Rock Drilling Tools , 7 / 11 / 12 Degree Taper Button Bit

Company Profile:

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
