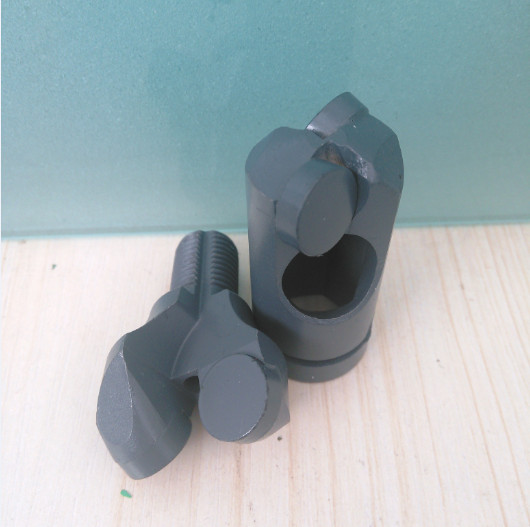

28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
Specifications
Brand Name :
MIROC
Model Number :
MGZT27 - B16
Certification :
GB / API
Place of Origin :
ShanDong China(Mainland)
MOQ :
100
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 pieces per month
Delivery Time :
1-20 days
Packaging Details :
Carton / Wooden Box or Based on Customers
Material :
Tungsten Carbide, 45CrNiMoV
Color :
Based on customers
Processing :
Forging
Use :
rock drill/tunneling/underground construction/quarry, rock drill/tunneling/underground construction/quarry
Machine Type :
Coal mining tools
Description

28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines

Specifications:

28mm,32mm,42mm,43mm coal mining tool

We can manufacture all kinds of bits and shells according to customer's special requirement.

Advantage:

1.coal mining tool,coal mine drill bit
2.low price and supreme quality
3.manufacturer
4.Certified by ISO9001

Product Description:
Applications:

Apply to the anchor-network support hole drilling in coal mine, hydraulic project. Etc.
Characteristics:
1. High wear resistance and impact-resistance toughness.
2. To repeat repair & greaning are not necessary, long drill life.
3. High efficiency could be promoted sharply in penetration of high-medium hard rock formation.
4. Labour intensity could be reduced.
5. Rock formation to be suitable t: F=4-12


Mining Drilling Tools

Main Standard(mm)

D

H

L

M

Thread joint

27

44

17

M14×1.5

27

54

17

M12×1.75

28

54

20

M12×1.75

29

52

18

M14×1.5

30

50

18

M14×1.5

32

52

22

M14×1.5

32

56

22

M12×1.75

28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines

Threaded Button Bit

T38 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 64 3×10, 1×10 6×11 3 - 1.7
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 3 1 2.6
4 89 3×11, 2×11 6×13 3 1 3.3
R38 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 64 3×11 6×12 3 - 1.8
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 2 - 2.6
4 89 4×13, 1×13 8×13 4 - 3.3
R32 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 41 2×8 5×9 1 1 0.7
2 43 2×9 5×10 1 1 0.7
3 45 2×9 5×11 1 1 0.8
4 48 2×9 5×11 1 1 0.9
5 51 2×10 5×11 1 1 1
6 57 3×9 6×11 3 - 1.3
7 64 3×11 6×12 3 - 1.6
8 70 4×11 8×11 2 - 2.6
9 76 4×11 8×11 2 - 2.8
R28 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 37 2×7 5×9 1 1 0.5
2 38 2×7 5×9 1 1 0.6
3 41 2×8 5×9 1 1 0.7
4 43 2×9 5×9 1 2 0.8
5 45 2×9 5×10 1 2 0.9
6 48 2×9 5×11 1 2 1

28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines

Company Profile:

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.

28mm - 43mm Tungsten Carbide Button Drill Bit for Drilling Bits Machines
