Taper 11 Degree Tungsten Carbide Rock Drilling Tools rods and bits for mine drilling rig
Taper 11 Degree Tungsten Carbide Rock Drilling Tools rods and bits for mine drilling rig
Taper 11 Degree Tungsten Carbide Rock Drilling Tools rods and bits for mine drilling rig
Taper 11 Degree Tungsten Carbide Rock Drilling Tools rods and bits for mine drilling rig
Specifications
Brand Name :
MIROC
Model Number :
Taper Button Bit
Place of Origin :
China
MOQ :
1 Pieces
Supply Ability :
20000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton Box or Wooden Box
Price :
negotiation
Payment Terms :
L/C, T/T
Taper :
11 degree
Diameter :
32mm 38mm
Button number :
7
Button shape :
Conical
Description

Taper 11 Degree Button Drill Bit Tungsten Carbide Perfectly Matches The Rods

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.

Features:

1. Tapered button bits connect with tapered drill rod for drilling holes

2. Stale and mature welding technology ensure good quality of bits

3. Accurate dimension of taper degree perfectly matches the rods

4. Work reliable and very cost-effective

Applications:

• Underground mining

• Dimensional Stone Industry
• Tunneling,quarrying

Specification

Tapered Rock Drilling Tools - 11° Button bit, Short skirt

Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
32 1 1/4 1x8 3x8 35° 1 2 0.24 4148300204
32 1 1/4 2x7 5x7 40° 1 1 0.24 4148300205
33 1 2/7 2x7 4x7 40° 1 1 0.25 4148300206
34 1 1/3 2x7 4x7 40° 1 1 0.29 4148300207
35 1 3/8 2x7 5x7 35° 1 1 0.33 4148300208
35 1 3/8 2x7 5x8 35° 1 1 0.33 4148300209
36 1 3/7 1x8 3x9 40° 1 1 0.36 4148300210
36 1 3/7 2x7 4x7 40° 1 1 0.36 4148300211
36 1 3/7 2x7 5x8 35° 1 1 0.36 4148300212
38 1 1/2 1x9 3x9 40° 1 1 0.39 4148300213
38 1 1/2 2x8 3x9 40° 1 1 0.39 4148300214
38 1 1/2 2x7 5x8 35° 1 1 0.39 4148300215
38 1 1/2 2x7 5x9 35° 1 1 0.39 4148300216
40 1 4/7 1x9 3x9 40° 1 1 0.4 4148300217
40 1 4/7 2x8 3x9 40° 1 1 0.4 4148300218
40 1 4/7 2x9 3x9 40° 1 2 0.4 4148300219
40 1 4/7 2x7 5x9 35° 1 1 0.4 4148300220
40 1 4/7 2x8 5x9 35° 1 1 0.4 4148300221
41 1 3/5 2x7 5x9 35° 1 1 0.41 4148300222

Tapered Rock Drilling Tools - 11° Button bit, Long skirt

Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
32 1 1/4 2x7 5x7 35° 1 1 0.3 4148300223
33 1 2/7 2x7 5x7 35° 1 1 0.31 4148300224
33 1 2/7 2x7 6x7 40° 1 1 0.31 4148300225
35 1 3/8 2x7 6x7 40° 1 1 0.35 4148300226
38 1 1/2 2x7 5x9 35° 1 1 0.41 4148300227
41 1 3/5 2x7 5x9 35° 1 1 0.42 4148300228


Pictures

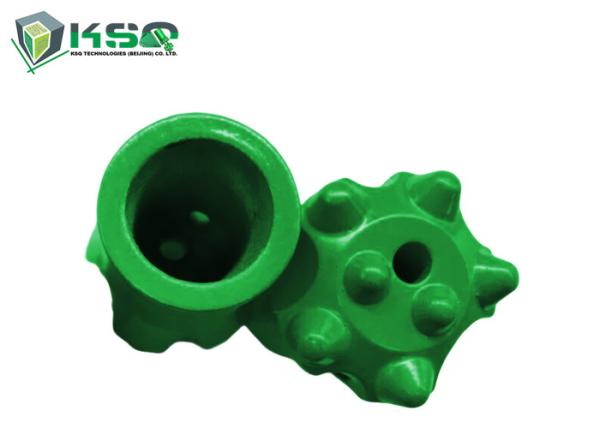

Taper 11 Degree Tungsten Carbide Rock Drilling Tools rods and bits for mine drilling rig

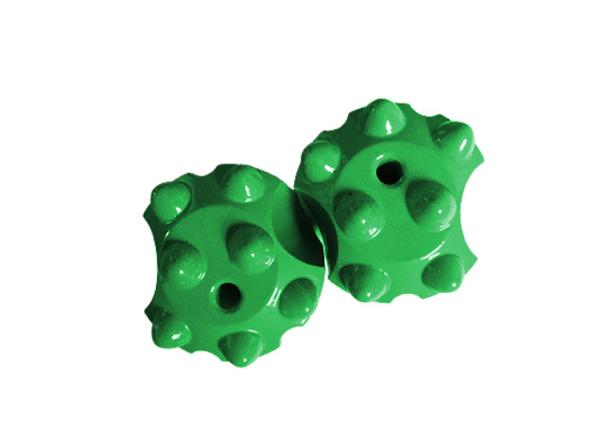

Taper 11 Degree Tungsten Carbide Rock Drilling Tools rods and bits for mine drilling rig

KSQ Related Rock Drilling Tools

(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,

Shank H19 x 108mm and H22 108mm.


(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree


(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.


(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)

Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.



Tag: Taper Button Bit, Drill Bit, Taper Rock Drill Tools
