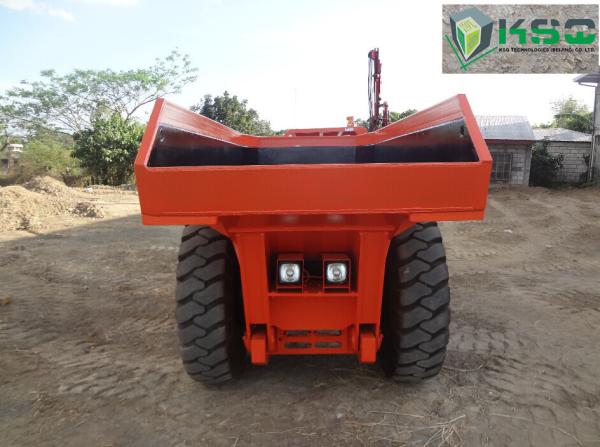

Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter

The RT-15 Low Profile Dump Truck is ideal for medium size rock excavation operations that
require high haulage productivity. Works perfectly with the RL-2 LHD Machine. The RT-15
maintains the simple yet very robust design tenets of what a mining equipment should be
- it has a small footprint and turning radius suitable for small envelope sizes, high proven
reliability, and straight-forward mechanical components that are easy to maintain.

Applications

Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling

Competitive Advantage

Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery

Detail Specification

Main Dimensions :
Length 7956 mm
Width 1804 mm
Height 2150 mm
Turning Radius :
Inside 3600 mm
Outside 6057 mm
Volume Capacity : 7.5m3
Tramming Capacity : 15000 kg
Engine : DEUTZ BF6L914C Turbocharged with charge air cooler, air cooled diesel engine
Torque Converter : DANA C273
Transmission : DANA R32000
Axles : DANA 16D
Tires : 14.00-24.00 E3

Company Profile

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
ROXMECH® Rock Excavation and Service/Support Equipment include:

RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer

Contact us for more information on our products and services.
