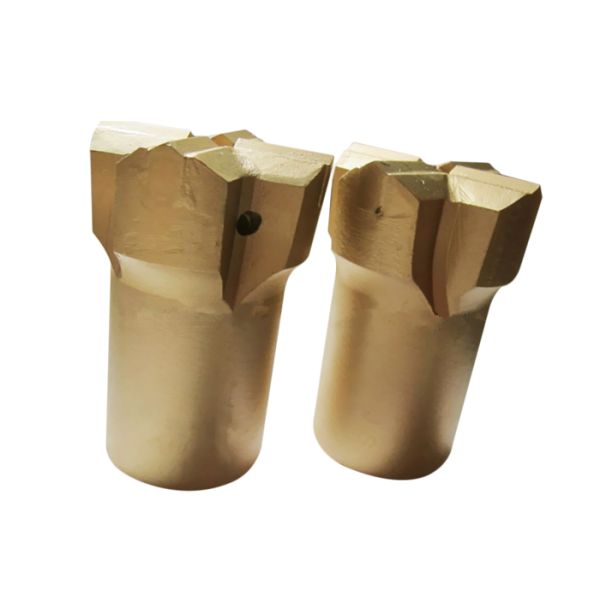

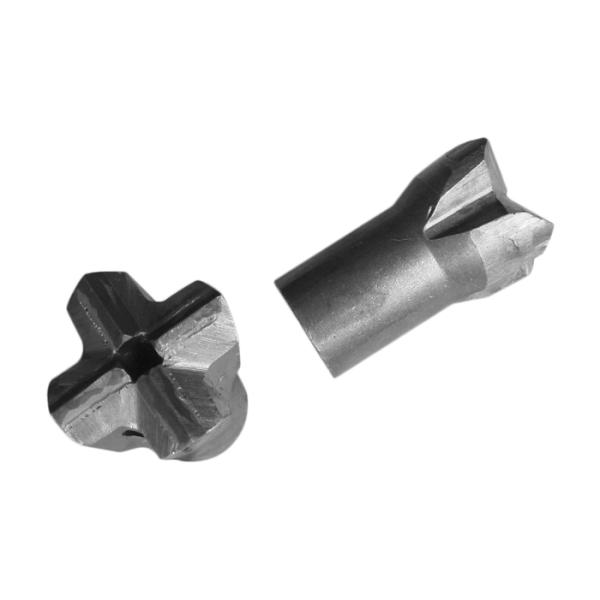

Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits
Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits
Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits
Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits
Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits
Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits
Specifications
Brand Name :
MIROC
Model Number :
Cross Bits R32
Certification :
API / GB
Place of Origin :
ShanDong, China(Mainland)
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
1-20 days
Packaging Details :
Carton or Wooden Box
Type :
R32 button bit
Material :
45CrNiMoV
Processing Type :
Forging
Use :
rock drill / quarry
Advantage :
OEM
Color :
Green/Black/Yellow ETC.
Description

Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits

Description of cross rock bit:
The cross rock bit can be used under any rock drilling condition, it's hardly impacted by the model of drill rig and the rock performance. Generally, chisel bit is mainly useed for hard rock, cross bit and button bit are mainly used for fissural rock.

It is mainly used for diging into mine laneway and blasting holes in all drilling works matched with the taper drill rod. For different rock, we choose the different alloy to extend the working life of the drill bits.


Usage:

drilling in ore field,

suitable even for harsh enviroment works;

Selling Point:

Quality certified;

Competitive prices;

Brand Name effect;

Nice after-sales services;

Specification

R25 Thread cross type bit
Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 33 14x8 1 2
2 35 14x8 1 2
3 38 14x8 1 4
4 41 14x8 1 4
5 43 14x8 1 4
6 45 14x8 1 2
7 51 14x8 1 4
R28 Thread cross type bit
Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 38 14x8 1 2
2 41 14x8 1 4
3 43 14x8 1 4
4 45 14x8 1 4
5 51 14x8 1 4
R32 Thread cross type bit
Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 41 16×10 1 4
2 43 16×10 1 2
3 45 16×10 1 4
4 48 16×10 1 4
5 51 16×10 1 4
6 57 16×10 1 4
7 64 18×13 1 4
R38 X-Type bit
Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 64 25×13 1 2
2 76 25×13 1 2
3 89 25×13 1 2

Tungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill BitsTungsten Carbide Sheet 41mm - 64mm Threaded R32 Cross Type Bit Rock Drill Bits

Company Profile

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
