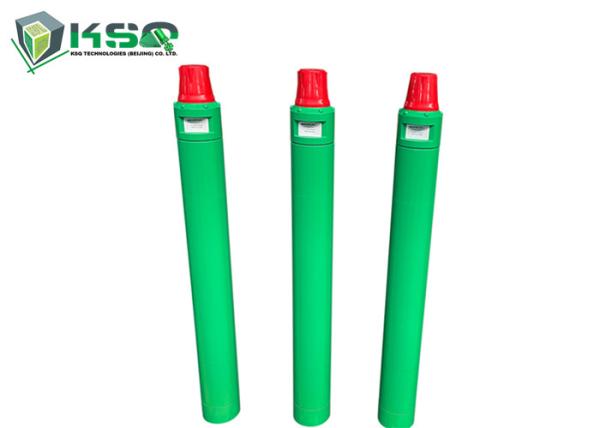

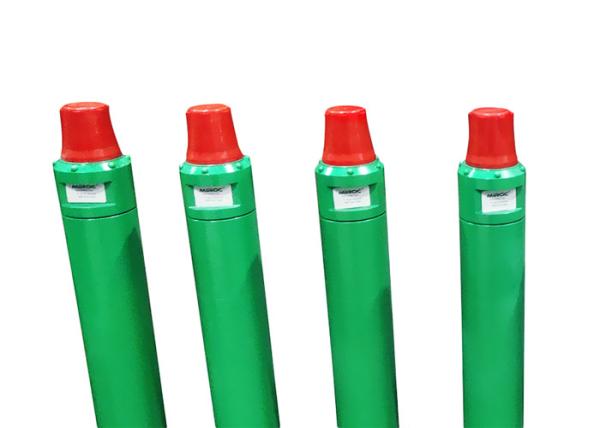

QL50 High Pressure Down The Hole Hammer Underground Mining Breakout Bench DTH Hammer Drilling

Description
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.


• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths

Product name DTH Hammer
Material Alloy Steel&Tungsten Carbide
Use Underground Mining,Water well,Mining,Quarry etc.
Color Green&Others
Heat treatment Anneal
Shank series DHD,COP,MISSION, SD, DHD, BR, QL, BR,CIR etc.
Application heavy construction,Ore Drilling, mining, oil and gas, quarries
Hole 60-305mm
Size 2/3/4/5/6/7/8/9/10/12/14 inches
Advantage High Performance and factory price


Applications

• Underground mining
• Quarry benching operations
• Water well drilling


Competitive Advantage
• Main hammer components manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Specification

Air distribution of 5"hammer without valve to utilize the bit with blow tube
Product Structure Part Description Weight(Kg) Part Number
Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling 1 Top Sub 13.7 QL50-01
2 “O” Ring of Top Sub 0.015 QL50-02
3 Breakout Ring 0.15 QL50-03
4 Check Valve 1 QL50-04
5 Spring 0.1 QL50-05
6 Compression Buffer 0.1 QL50-06
7 Air Distributor 3.5 QL50-07
8 Internal Cylinder 4.2 QL50-08
9 Piston 19 QL50-09
10 External Cylinder 24.6 QL50-10
11 Guided Sleeve 0.9 QL50-11
12 "O"Ring of Stop Ring 0.01 QL50-12
13 Stop Ring 0.4 QL50-13
14 Drive Chuck 4.6 QL50-14
15 Drill Bit QL50-15

Products features: Valveless air distribution hammer, more reliableGood sealability, no water and cuttings entering into hammer in waterexists drilling.

Application: Available for al working conditions, highperformance in overburden and water well drilling project.

Technical Parameters

Length(Without bit)

Weigth(Without bit)

External diameter

Bit Shank

Hole range

Connection Thread (top sub-drill pipe)

1156mm

73.0kg

φ125mm

COP54 QL50

φ135mm-φ152mm

API2 3/8" Reg API3 1/2" Reg

Working Pressure

Impact rate at17bar (reference)

Speed recommended

Pull force recommended

Reference Air consumption(m³/min)

14Bar

17.2Bar

20.7Bar

24Bar

10-25Bar

26Hz

30-60rpm

9.5kN

12

15.4

18.7

22.3

Technical Parameters Of Bits Assorted

Head Shape

Number of head shape

Head Diameter (mm)

Part No.

No. x Button diameter (mm)

Button angle

No. of Flushing holes Dia.(mm)

Weight (Kg)

Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling

Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling

Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling

Gauge Buttons

Front Buttons

Flat Face

Convex Face

Concave Face

1

φ140

QL50-140CV7

7xφ18

3xφ14

4xφ15

/

38°

2xφ20

15.1

1

2

3

2

φ140

QL50-140FF8

8xφ16

8xφ14

/

/

38°

2xφ20

15.3

Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling

Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling

Ql50 High Pressure Dth Hammer Down The Hole Underground Mining Breakout Bench Drilling

3

φ146

QL50-146FF8

8xφ18

8xφ15

/

/

38°

2xφ20

15.9

4

φ146

QL50-146CC8

8xφ18

4xφ15

/

3xφ14

38°

2xφ20

15.8

5

φ152

QL50-152FF8

8xφ18

8xφ15

/

/

38°

2xφ20

16.4

4

5

6

6

φ152

QL50-152CC8

8xφ18

4xφ16

/

4xφ14

38°

2xφ20

16.2
