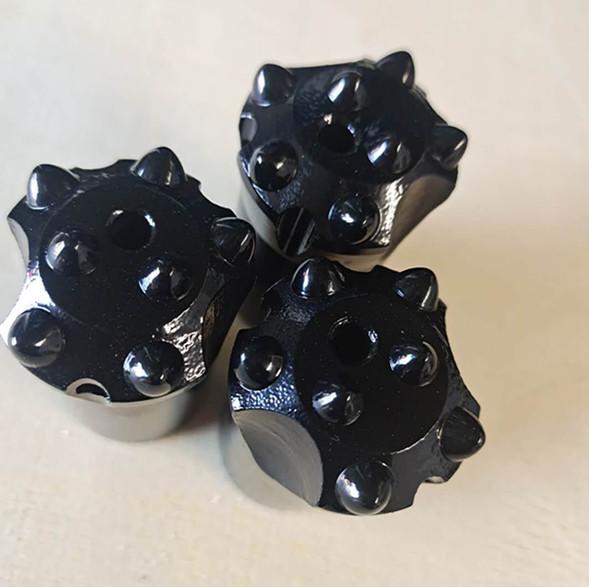

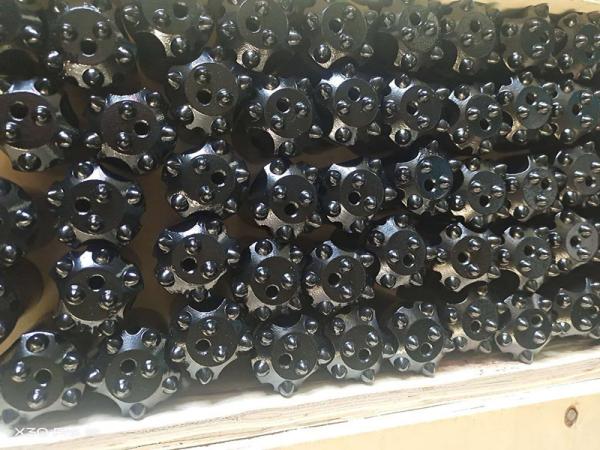

Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
Specifications
Brand Name :
Mirco
Model Number :
taper drill bit
Place of Origin :
China
MOQ :
negociated one
Price :
negociated one
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
60000 Piece/Pieces per Month
Delivery Time :
10-15 days
Packaging Details :
wooden box or plastic box
Model :
tapered drill bit
Type :
Drill Bit
Machine Type :
Drilling Tool, Drilling Equipment
Material :
Carbon Steel
Processing Type :
Forging
Use :
mining drilling
Bit Diameter :
38mm
Product name :
Tapered button drill bit
Taper :
12 Degree
Button size :
2x7mm,5x8mm
Description

Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert

Perfect designs, tungsten carbide and skirt steel , KSQ provides leading strength and penetration rates for more productivity, excellent straightness and hole clean quality, get max drilling performance to save up fuel cost rate.

KSQ can design and manufacture according to customers' samples or drawings of the diameter., buttons and flushing holes quantity, button shape and face shape. KSQ button bit is made by high quality tungsten carbides and steel, through heat treatment so that it can be used for hard rock drilling, and transmit intensive impact energy into the rock with the least possible loss of energy. Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency. According to the buttons, tapered button bits can be divided into the types of Dome, Ballastic, etc

Specification

Tapered Rock Drilling Tools - 12° Button bit, Short skirt

Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
28 1 1/9 1x7 3x7 20° 1 1 0.2 4148300255
28 1 1/9 1x7 4x7 35° 1 1 0.2 4148300256
29 1 1/7 1x7 3x7 40° 1 1 0.21 4148300257
30 1 1/6 1x7 3x7 40° 1 1 0.22 4148300258
30 1 1/6 1x7 4x7 35° 1 1 0.22 4148300259
30 1 1/6 2x7 4x7 30° 1 1 0.22 4148300260
32 1 1/4 2x7 5x7 40° 2 1 0.24 4148300261
33 1 2/7 2x7 5x7 35° 1 1 0.25 4148300262
34 1 1/3 2x7 5x8 35° 1 1 0.29 4148300263
35 1 3/8 2x7 4x7 35° 1 1 0.33 4148300264
35 1 3/8 2x7 5x8 35° 2 1 0.33 4148300265
35 1 3/8 2x7 5x9 35° 1 1 0.33 4148300266
36 1 3/7 2x7 5x9 35° 1 1 0.37 4148300267
37 1 1/2 2x7 5x9 40° 1 1 0.38 4148300268
38 1 1/2 1x9 5x9 40° 1 1 0.4 4148300269
38 1 1/2 2x7 5x9 35° 1 1 0.4 4148300270

About us

MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.

MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers

Rock Drill Spare Parts 12 Degrees Tapered Dril Bit With 7 Carbides Insert
