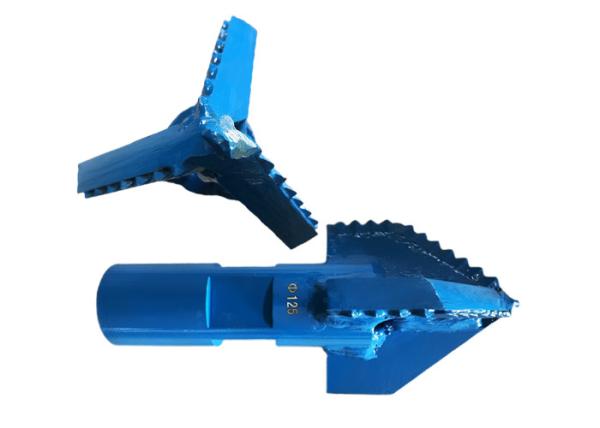

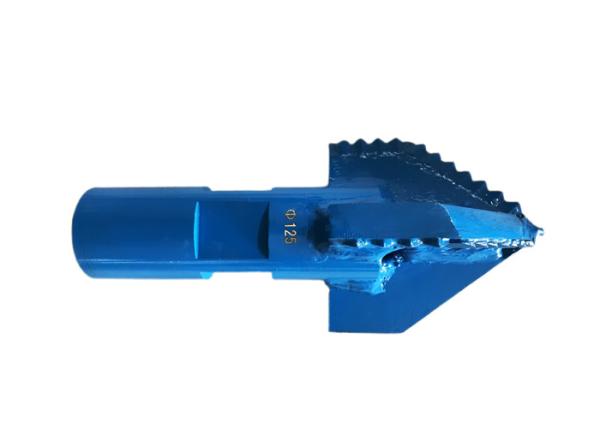

Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration
Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration
Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration
Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration
Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration
Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration
Specifications
Brand Name :
MIROC
Model Number :
3 Wings TC Drill Bit
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Supply Ability :
7000pcs per month
Delivery Time :
15-20 days
Packaging Details :
Standrad export packaging or customized
Material :
TC inserted cutters and steel body
Wings :
3, 4,5,6 wings
Connection :
API Reg. Pin or box
Drilling Formation :
Soft-Medium Hard Rock Formation
Processing Type :
Forging
Application :
Water well exploration
Color :
Golden, Blue, Green or Customized
Origin :
Hebei, China
Description

Description

A drag bit is usually designed for soft formations such as sand, clay or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.

Three-wing bits tend to drill faster, whereas four-wing bits are longer-lasting, more durable, and drill a straighter hole.

We produce a variety of tungsten carbide drill bits, mainly ofr water exploration, coal mining and soft rock drilling. Our drill bits are manufactured by casting, precision forging and medium carbon alloy steel machining.

Dia 125mm Tungsten Carbide Drill Three Wings Bit For Water Exploration

Specifications

No. Diameter Connecting Size Cutters/Wings Structures
1 27mm M12x1.75mm M14x1.5mm 2 integral
2 28mm M12x1.75mm F12x12mm 2 integral
3 30mm M12x1.75mm F12x12mm 2 integral
4 32mm M14x1.5mm F12x12mm 2 integral
5 34mm M14x1.5mm F12x12mm 2 integral
6 36mm M14x1.5mm F12x12mm 2 integral
7 38mm T24x5mm F14x14mm 2-3 integral
8 42mm T24x5mm F13-14mm 2-3 integral
9 45mm T24x5mm F13-18mm 2-3 integral
10 55mm T24x5mm F13-18mm 4 two-stage
11 65mm T24x5mm F13-18mm 4-5 two-stage
12 75mm T33x4.23mm F13-18mm 4-5 two-stage
13 76mm T33x4.23mm F18-24mm 4-5 two-stage
14 82mm T42x5.08mm F18-24mm 4-5 two-stage
15 85mm T42x5.08mm F18-24mm 4-5 two-stage
16 89mm T42x5.08mm F24-32mm 5-7 three-stage
17 95mm T55x5.08mm F24-32mm 5-7 three-stage
