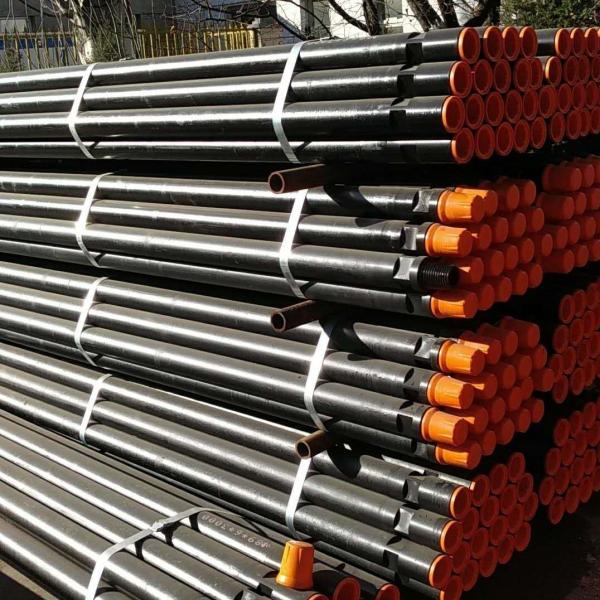

88.9mm T4 Oil Drill Pipe / Water Well Drill Pipe With Steel Grade E75 / R780
88.9mm T4 Oil Drill Pipe / Water Well Drill Pipe With Steel Grade E75 / R780
88.9mm T4 Oil Drill Pipe / Water Well Drill Pipe With Steel Grade E75 / R780
88.9mm T4 Oil Drill Pipe / Water Well Drill Pipe With Steel Grade E75 / R780
Specifications
Brand Name :
Mirco
Model Number :
Oil Drill pipe
Certification :
API
Place of Origin :
China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
15-20 days
Packaging Details :
9 units each bundle
Material :
G105
Diameter :
4.5"（88.9mm）
Thread :
NC50
Length :
25 feet
Thickness :
8.56mm
Industry :
Oil & Gas
Description

Oil drill pipe 4.5''(88.9mm) Ingersoll Rand t4 drill pipe/water well rig drilling pipes,

with Steel grade E75/R780

Product introduction

1.OD:4-1/2''

2.Steel grade: E75/R780
3.Pipe wall thickness:8.56mm
4.Length :25 feet
5.Tool joint: 2-7/8IF(NC31)

6. Weight: 200kg/pc

7. Loading: 130 pcs/40'GP

88.9mm T4 Oil Drill Pipe / Water Well Drill Pipe With Steel Grade E75 / R780

88.9mm T4 Oil Drill Pipe / Water Well Drill Pipe With Steel Grade E75 / R780

More Standard Drill pipe specifications:

Diameter (inch) Grade Upset RSC (Thread) Diameter (mm) Thickness (mm)
IU
4 E IU NC40 101.60 8.38
4 X IU NC40 101.60 8.38
4 G IU NC40 101.60 8.38
4 S IU NC40 101.60 8.38
4 1/2 E IU NC46 114.30 6.88
2 3/8 E EU NC26 60.32 7.11
2 3/8 X,G EU NC26 60.32 7.11
2 7/8 E EU NC31 73.02 9.19
2 7/8 X,G EU NC31 73.02 9.19
2 7/8 S EU NC31 73.02 9.19
3 1/2 E EU NC38 88.90 6.45
3 1/2 E EU NC38 88.90 9.35
3 1/2 X EU NC38 88.90 9.35
3 1/2 G EU NC38 88.90 9.35
3 1/2 S EU NC38 88.90 9.35
3 1/2 E EU NC38 88.90 11.40
3 1/2 X EU NC38 88.90 11.40
3 1/2 G EU NC38 88.90 11.40
3 1/2 S EU NC38 88.90 11.40
EU
4 E EU NC46 101.60 8.38
4 XG EU NC46 101.60 8.38
4 S EU NC46 101.60 8.38
4 1/2 E EU NC50 114.30 6.88
4 1/2 E EU NC50 114.30 8.56
4 1/2 XG EU NC50 114.30 8.56
4 1/2 S EU NC50 114.30 8.56
4 1/2 E EU NC50 114.30 10.92
4 1/2 XG EU NC50 114.30 10.92
4 1/2 S EU NC50 114.30 10.92
4 1/2 E IEU NC46 114.30 8.56
4 1/2 XG IEU NC46 114.30 8.56
4 1/2 S IEU NC46 114.30 8.56
4 1/2 E IEU NC46 114.30 10.92
4 1/2 X IEU NC46 114.30 10.92
4 1/2 G IEU NC46 114.30 10.92
4 1/2 S IEU NC46 114.30 10.92
IEU
5 E IEU NC50 127.00 9.19
5 X IEU NC50 127.00 9.19
5 G IEU NC50 127.00 9.19
5 S IEU NC50 127.00 9.19
5 E IEU 5 1/2FH 127.00 9.19
5 XG IEU 5 1/2FH 127.00 9.19
5 S IEU 5 1/2FH 127.00 9.19
5 E IEU NC50 127.00 12.70
5 X IEU NC50 127.00 12.70
5 G IEU NC50 127.00 12.70
5 E IEU 5 1/2FH 127.00 12.70
5 X IEU 5 1/2FH 127.00 12.70
5 G IEU 5 1/2FH 127.00 12.70
5 S IEU 5 1/2FH 127.00 12.70

Package

1. The drill pipes will be packed into bundles as 3x3, 3x4, 4x4 etc. and loading into containers after black painting and thread protectors installation.

2. For 20’ container, the max loading weight is 21 metric tons

3. For 40’ container, the max loading weight is 27 metric tons

4. Usual loading port is Xingang port in Tianjin, main port in north of China

Drill pipe quality control:

a) Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China

b) Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory

c) Every drill pipe has nondestructive inspection , cleaned and thread oil before packing.
