Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits
Specifications
Brand Name :
MIROC
Model Number :
11 degree
Certification :
CE ,ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiated price
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability :
100 000pcs/month
Delivery Time :
5-15 working day
Packaging Details :
dth drill bits first be packed in polybag,then be packed in plastic box or wooden box
Name :
11 tapered button bit
Button :
3-9
Button type :
hemispherical, ballistic, conical and domed
Flushing Hole :
2-3mm
Material :
Carbon steel
Bit body :
Short and long shirt
Usage :
Rock Drilling,for drilling,MINING AND DRILLING,drill holes,Hole Drilling
Processing type :
Forging,Metal
Description

Atlas Copco 11 Degree Alloy Rock 36 Mm Taper Button Drill Bit Carbide rock drill bits

Taper button bit, as a small hole bit, use taper match bit with rod to be used for air leg or hand held jack hammer driller in quarrying and mining. With diameter of 32mm to 65mm, they are widely used in mining and quarrying, with combination of well anti-wear and anti-impact carbide buttons and high performance steel, it features the advantages of higher driving efficiency, long service life, better powder exhausting and easier bit back.

Product Name: tapered tungsten carbides knock off drill bit
Types Tapered chisel bits, Tapered cross bits, Tapered button bits
Application:: Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
Feature: Tapered drill bits connect tapered drill steel of rock drill for drilling holes
Material: High quality carbide and high quality steel
MOQ: No requirement for testing and trial order
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.
Types of drill bits Diameter (mm) Taper Angle (Degree) Length (mm) Weight (kg)
Tapered chisel bits 20/22/28/30/32/34/36/38/40 7 degree/ 11 degree/ 12 degree 50/55/60/71/80 0.15 - 0.45
Tapered cross bits 24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 50/55/60/71/80 0.18 - 0.7
Tapered button bits 28/29/30/32/33/34/35/36/37/38/40/41/42/45 50/55/60/71/80 0.2 - 0.5

Relate products

Dia.(mm) Taper Buttons Flusing Holes Weight(kg)
Gauge Front
Qty×Dia. Qty× Dia. Front Side
32 7 degrees 2x7 5x7 1 1 0.3
33 7 degrees 2*7 5*7 1 1 0.3
35 7 degrees 2*7 5*8 1 1 0.36
38 7 degrees 2*7 5*9 1 1 0.41
41 7 degrees 2*7 5*9 1 1 0.41
33 12 degrees 2*7 6*7 2 1 0.31
35 12 degrees 2*7 6*7 2 1 0.35
38 11 degrees 2*8 3*9 1 1 0.39
40 11 degrees 2*8 3*9 1 1 0.4
40 11 degrees 2*9 3*9 1 1 0.4

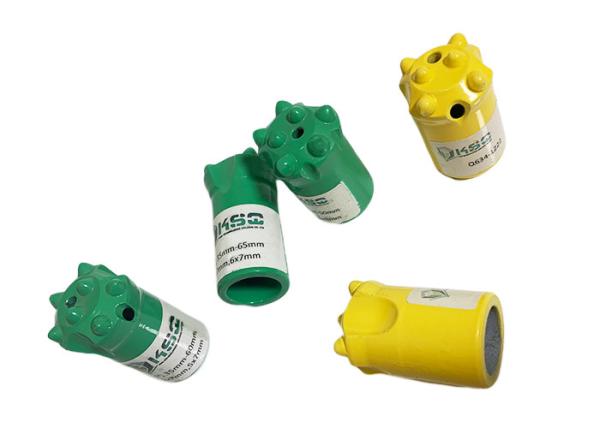

More products photos

Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits

Carbon Steel Alloy Rock Button Drill Bit 11 Degree 38mm Carbide Rock Drill Bits

FAQ
Q1: What’s your delivery time?
A: Usually product need 10-20 days to produce, within 3 days if it's in stock.
Q2: What’s methods of payments are accepted?
A: We accept T/T, L/C, West Union, One touch, Money Gram, Paypal.
Q3: What about shipment ?
A: It is based on other quantity of your order. We can send it to you by Express, by Air, by Sea or by Train. Or send the goods to your Chinese agent.
Q4: How to control the quality?
A: We always carefully check and test every product before shipment, also send you photos and videos.
Q5: Do you agree sample order ?
A: Yes ,we are welcome you to make a sample order to test our quality.
Q6: Can we select the button bit color?
A: Yes, we have different colors for your choice, our standard color is green.
Q7: Can we put our mark on the button bit?
A: Yes, we can do it, we do offer OEM service.
Q8: Do you have after-sale service ?
A: Yes of course, we are always online for our customers.
