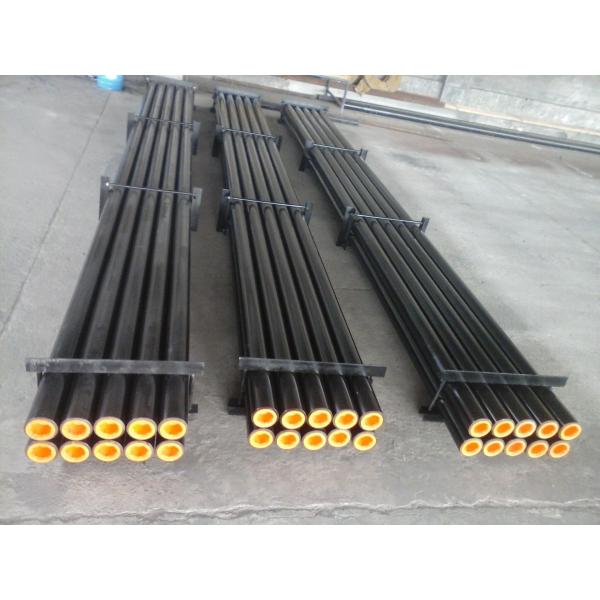

5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints
5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints
5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints
5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints
Specifications
Brand Name :
Mirco
Model Number :
Oil Drill pipe
Certification :
API
Place of Origin :
China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
15-20 days
Packaging Details :
9 units each bundle
Material :
E75
Diameter :
5"（127mm）
Thread :
NC50
Length :
RI
Thickness :
9.35 or 11.4 mm
Industry :
Oil , Gas, water well
Description

API Standard 5'' (127mm)5DP Drill pipe/drill rod/ tubular pipe/ drilling pipe,

used for oil, Gas and water well

Product introduction

5''(127mm)
OD Grade RSD Weight
Designation		 Wall thickess OD of joint
Inch mm Inch mm Inch mm
5'' 127.00 E,X,G,S NC50 19.50 0.362'' 9.19 6.626'' 168.3
E,X,G 5-1/2FH 19.50 0.362'' 9.19 7.000'' 177.8
S 7.252'' 184.2
E,G NC50 25.60 0.500'' 12.70 6.626'' 168.3
X 5.457'' 138.6
E,X 5-1/2FH 25.60 0.500'' 12.70 7.000'' 177.8
G,S 7.252'' 184.2

Steel Gade Specification OD Internal Coating Hardbanding Length

E-75

R780

X-95

G-105

S-135

 5''(127mm) TC2000
TC3000
TK34
TK34p		 ARNCO 100XT
ARNCO 300XT
ARMACOR-M
TCS-Ti
TCS-8000		 R1:6.1-7.01m
R2:8.84-9.75m
R3:12.19-13.72m
Product

API oil drill pipes, Water well drill pipes, Flat drill pipes, Non-dig drill pipes,Geographical drill pipes and various tool jonts.

5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints

5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints

We manufacture API 5DP Drill pipes of OD 2-3/8'', 2-7/8", 3-1/2", 4", 4-1/2", 5", etc. and are sure our products can meet your requirements.

Usage: mine blasting, water well drilling, geothermal wells drilling, Forepoling, coal and nonferrous metal mining projects,etc.

More Standard Drill pipe specifications:

Diameter (inch) Grade Upset RSC (Thread) Diameter (mm) Thickness (mm)
IU
4 E IU NC40 101.60 8.38
4 X IU NC40 101.60 8.38
4 G IU NC40 101.60 8.38
4 S IU NC40 101.60 8.38
4 1/2 E IU NC46 114.30 6.88
2 3/8 E EU NC26 60.32 7.11
2 3/8 X,G EU NC26 60.32 7.11
2 7/8 E EU NC31 73.02 9.19
2 7/8 X,G EU NC31 73.02 9.19
2 7/8 S EU NC31 73.02 9.19
3 1/2 E EU NC38 88.90 6.45
3 1/2 E EU NC38 88.90 9.35
3 1/2 X EU NC38 88.90 9.35
3 1/2 G EU NC38 88.90 9.35
3 1/2 S EU NC38 88.90 9.35
3 1/2 E EU NC38 88.90 11.40
3 1/2 X EU NC38 88.90 11.40
3 1/2 G EU NC38 88.90 11.40
3 1/2 S EU NC38 88.90 11.40
EU
4 E EU NC46 101.60 8.38
4 XG EU NC46 101.60 8.38
4 S EU NC46 101.60 8.38
4 1/2 E EU NC50 114.30 6.88
4 1/2 E EU NC50 114.30 8.56
4 1/2 XG EU NC50 114.30 8.56
4 1/2 S EU NC50 114.30 8.56
4 1/2 E EU NC50 114.30 10.92
4 1/2 XG EU NC50 114.30 10.92
4 1/2 S EU NC50 114.30 10.92
4 1/2 E IEU NC46 114.30 8.56
4 1/2 XG IEU NC46 114.30 8.56
4 1/2 S IEU NC46 114.30 8.56
4 1/2 E IEU NC46 114.30 10.92
4 1/2 X IEU NC46 114.30 10.92
4 1/2 G IEU NC46 114.30 10.92
4 1/2 S IEU NC46 114.30 10.92
IEU
5 E IEU NC50 127.00 9.19
5 X IEU NC50 127.00 9.19
5 G IEU NC50 127.00 9.19
5 S IEU NC50 127.00 9.19
5 E IEU 5 1/2FH 127.00 9.19
5 XG IEU 5 1/2FH 127.00 9.19
5 S IEU 5 1/2FH 127.00 9.19
5 E IEU NC50 127.00 12.70
5 X IEU NC50 127.00 12.70
5 G IEU NC50 127.00 12.70
5 E IEU 5 1/2FH 127.00 12.70
5 X IEU 5 1/2FH 127.00 12.70
5 G IEU 5 1/2FH 127.00 12.70
5 S IEU 5 1/2FH 127.00 12.70

Drill pipe quality control:

a) Before order to be confirmed, the raw material of pipe body and tool joint should be booked from famous big steel enterprises in China

b) Raw material’s size, quantity, length, mechanical property are checked by our QC staff and factory own laboratory

c) Every drill pipe has nondestructive inspection , cleaned and thread oil before packing.

5DP E75 Threaded Drill Rod 127mm Diameter NC50 Thread With Various Tool Joints

Company Information

KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
