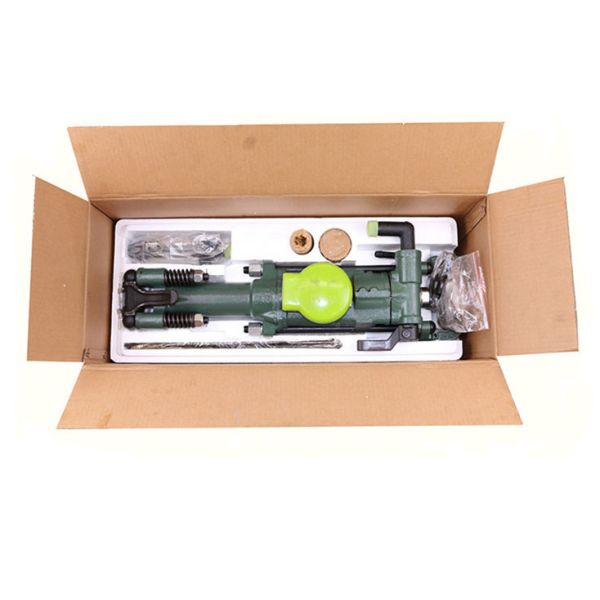

Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg
Specifications
Brand Name :
MIROC
Model Number :
Airleg rock drill
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 per month
Delivery Time :
5-10 workdays
Packaging Details :
Carton box, Wooden box
Color: :
Any color is available
Weight: :
6-27kg
Model: :
Air Leg Rock Drill
Usage: :
Ore, Mining, quarrying, drilling,
Drill Depth: :
0.5-5m
Shank size: :
hex22x108mm
Type: :
with Airleg
drilling diameter: :
34-42mm
Model :
YT24/YT28
Description

Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg

The jack hammer is a kind of high efficiency air leg rock drill machinery. It is mainly used for digging into mine line way and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defense stone project.

Product Name YT28 Rock drill pneumatic rock drill
Description The Series of pneumatic rock drills are mainly used in mines,railway,water irrigation works and quarrying works and quarrying works to drill hole or plug holes.It is suitable for wet or dry drilling in all kinds of rocks.
Drilling Direction Hand-held type for Perpendicular;Air-leg type for titling direction
Advantage Light weight;high efficiency,fast drilling velocity, low comsumption,convenient operation,long life part
MOQ No requriement for testing and trial order
Spare Parts Internal drill rod,plug hole rod,taper drill rod,thread drill rod,taper/thread drill bit

Specification of pneumatic rock drill/ jack hammer / Hand-operated rock drill

Model YT24 YT27 YT28 YT29A
Weight 24kg 27kg 28kg 26.5kg
Length 678mm 668mm 661mm 659mm
Air pressure 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa 0.4-0.63Mpa
Impact frequency ≥31HZ ≥39HZ ≥37HZ ≥37HZ
Air consumption ≤67L/s ≤86L/s ≤81L/s ≤65L/s
Impact energy ≥65J ≥75J ≥70J ≥70J
Cylinder* stroke 70mm*70mm 80mm*60mm 80mm*60mm 82mm*60mm
Air pipe diameter 19mm 19mm 25mm 25mm
Shank dimension 22*108mm 22*108mm 22*108mm 22*108mm
Drilling depth 5m 5m 5m 5m
Bit diameter 34-42mm 34-45mm 34-42mm 34-45mm

jack hammer | jack hammer | jack martelo | Jack Hammer | Presslufthammer | jack çekiç | Jack Hammer

Products

Package

Hand Rock Drill Jack Hammer YT24 YT28 For Mine Drilling With Air Leg

About us

MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.

MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
