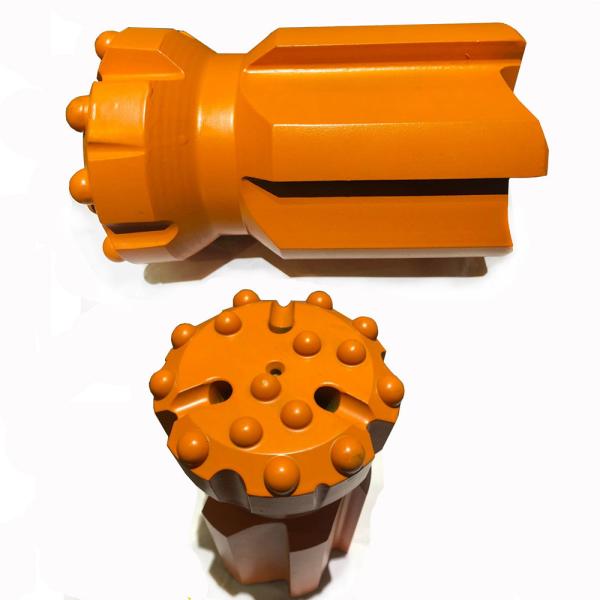

Standard Button Drill Bit 115mm T51 For Hard Rock Formation Drilling
Standard Button Drill Bit 115mm T51 For Hard Rock Formation Drilling
Standard Button Drill Bit 115mm T51 For Hard Rock Formation Drilling
Standard Button Drill Bit 115mm T51 For Hard Rock Formation Drilling
Specifications
Brand Name :
MIROC
Model Number :
Drill Bit
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30000pcs per month
Delivery Time :
10-22days
Packaging Details :
Carton Box or Wooden Box
Type :
Drill Bit
Thread :
T51,115mm
Processing Type :
Forging
Use :
Mining,Tunneling,Quarrying,Construction
Color :
any color is available
Model :
t51 button bit
Description

Standard Rock Drill Bits 115mm T51 button bit for hard rock

Description

A comprehensive range of various button bits shown as below:

Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60 etc;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retrac, straigh retrac

specification

T51 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 89 3x11, 2x11 6x13 4 - 4.9
2 102 3x13, 2x13 6x14 3 1 5.2
3 115 6x14 8x14 2 - 6.8
4 127 4x16, 2x13 8x16 4 - 7.5
T45 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 70 3×11, 1×19 6×11 3 - 2.2
2 76 3×11, 1×11 6×13 3 - 2.4
3 89 3×11, 2×11 6×13 3 1 4.1
4 102 3×13, 2×13 6×14 3 1 4.5
T38 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 64 3×10, 1×10 6×11 3 - 1.7
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 3 1 2.6
4 89 3×11, 2×11 6×13 3 1 3.3
R38 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 64 3×11 6×12 3 - 1.8
2 70 3×10, 1×10 6×12 3 - 1.8
3 76 3×11, 1×11 6×12 2 - 2.6
4 89 4×13, 1×13 8×13 4 - 3.3

Standard Button Drill Bit 115mm T51 For Hard Rock Formation Drilling

About us

MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.

MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
