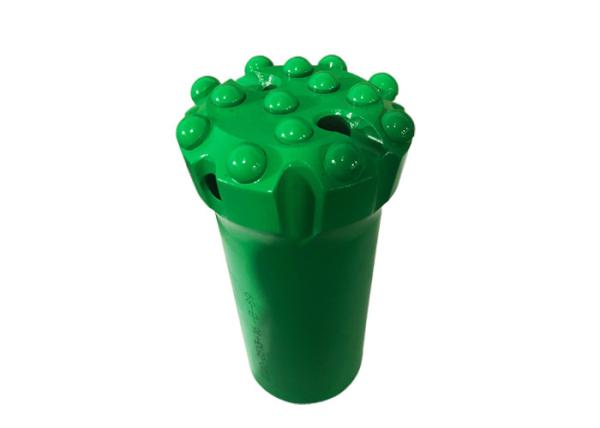

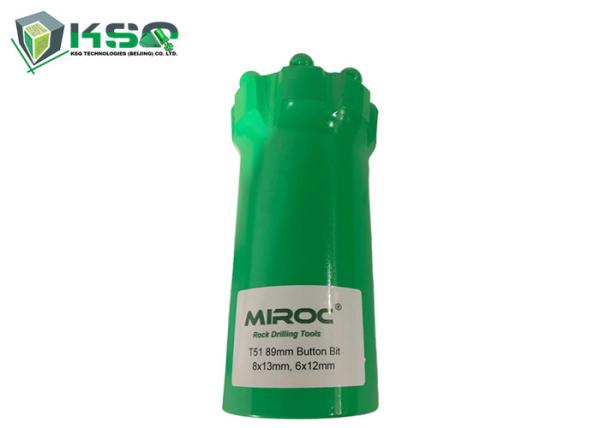

T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
Specifications
Brand Name :
MIROC
Model Number :
Thread Button Bit
Place of Origin :
China
MOQ :
1 Pieces
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000 units per months
Delivery Time :
10-20 Days
Packaging Details :
Carton Box or Wooden Box
Certification :
ISO
thread :
T51
diameter :
89mm
Color :
customized
Bit face :
Flat Face bit, Convex Face bit, Concave Face bit
Shank series :
R25 R32 T38 T45 T51 thread button bit
Item Diameter :
41-127mm
Description

T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits

Thread button bits made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy

Button Bit:

Skirt Shape Straight (Normal) Retract Straightrac
Bit Diameter

35~152mm

(1 3/8 ~ 6”)

45~127mm

(1 25/32” ~ 5”)

64~102mm

(2 1/2” ~ 4”)
Thread R22, R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58, ST68. R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58, ST68. R38, T38, T45, T51, T60, ST58, ST68.
Face Design Flat, Convex or Drop Center; Flat, Convex or Drop Center; Flat, Convex or Drop Center;
Inserts Configuration Domed (Spherical), Hemi-spherical, Ballistic, Parabolic or Conical; Domed (Spherical), Hemi-spherical, Ballistic, Parabolic or Conical; Domed (Spherical), Hemi-spherical, Ballistic, Parabolic or Conical;

Description

T51 button bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight
mm Front Gauge Front Side kg
1 89 3x11, 2x11 6x13 4 - 4.9
2 102 3x13, 2x13 6x14 3 1 5.2
3 115 6x14 8x14 2 - 6.8
4 127 4x16, 2x13 8x16 4 - 7.5

T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits

We have different designs for various rock formations, longer service life to decrease use costs for users.T51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill BitsT51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill BitsT51 Tungsten Carbide Rock Drilling Tools 2 - 3 Flushing Hole Thread Button Drill Bits
