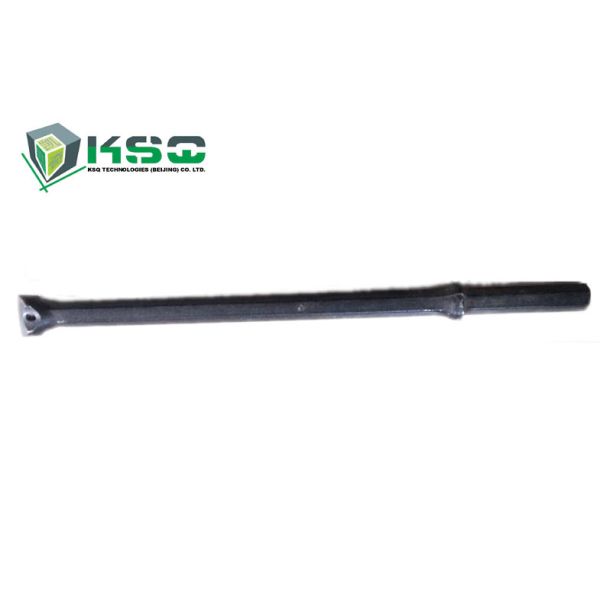

Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Specifications
Brand Name :
MIROC
Model Number :
Integral Drill Rod
Place of Origin :
China
MOQ :
1 Pieces
Supply Ability :
20000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton Box or Wooden Box
Price :
negotiation
Payment Terms :
L/C, T/T
Length :
1600mm
Shank :
22*108mm
Hold diameter :
33mm
Weight :
5.2KG
Description


Integral drill steel rod is used by a hand held drill machine in underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. According to different application, different lengths are available from 600mm to 9600mm usually.
Specifications:
(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo
(2)Shank size: hex19mm hex.22mm, hex.25mm including Plug Hole Rod
(3)Head Diameter: 24mm-44mm
(4)Length: 0.4m-6.4m
(5)Package: in wooden case or in bundles.
(6)Productivity: 20000pcs / month

Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
LenghtBit dia.Weight approx kg
mmfoot
8002'7"343.0
16005'3"335.2
24007'10"328.0
320010'6"3110.2
400013'1"3012.9
480015'9"2915.1
560018'4"2817.6
640021'2720.1
720023'6"2622.5
8002'7"403.0
16005'3"395.2
24007'10"388.0
320010'6"3710.2
400013'1"3612.9
480015'9"3515.1
560018'4"3417.6
640021'3320.1
720023'6"3222.5
800026'2"3125.0
4001'4"341.7
8002'7"333.0
12003'11"324.1
16005'3"315.2
20006'7"306.7
6002'412.4
12003'11"404.3
18005'11"396.2
24007'10"388.0
4001'4"411.7
8002'7"293.0
8002'7"383.1
12003'11"394.3
16005'3"365.2
18005'11"366.0
20006'7"326.7
24007'10"278.0
320010'6"2710.2
320010'6"3210.3
640021'3020.1
800026'2"2625


Application
• Suitable for small hole range drilling
• Widely used in dimensional stone quarrying industry and underground mining industry.

Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


Specification---------------Taper 7 Degree Drill Rod with Shank 22 x 108mm

LengthWeightPart Number
mmfootkg
6002 1.934148300179
8002 5/82.544148300180
10003 2/73.154148300181
12004 3.764148300182
15005 4.684148300183
16005 1/44.984148300184
18006 5.594148300185
20006 5/96.24148300186
22007 2/96.814148300187
23007 5/97.124148300188
24007 7/87.424148300189
25008 1/57.734148300190
26008 1/28.034148300191
30009 5/69.254148300192
350011 1/210.784148300193
400013 1/812.34148300194
450014 3/413.834148300195
500016 2/515.354148300196
550018 16.884148300197
600019 2/318.34148300198


We can design and manufacture the personalized products to meet your specical apllication.

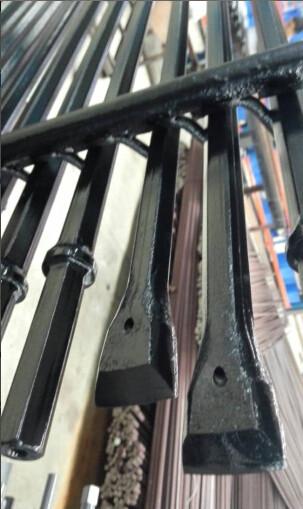

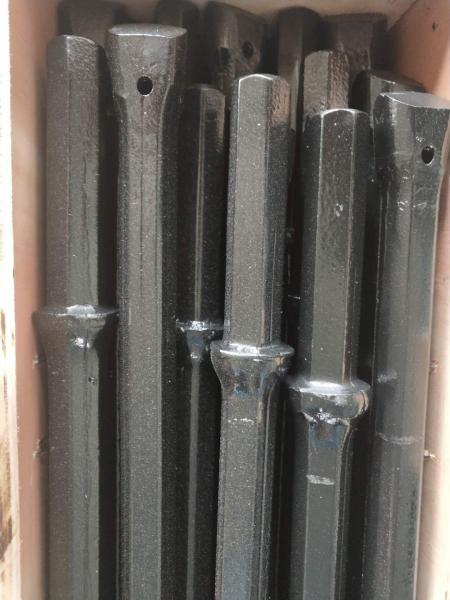

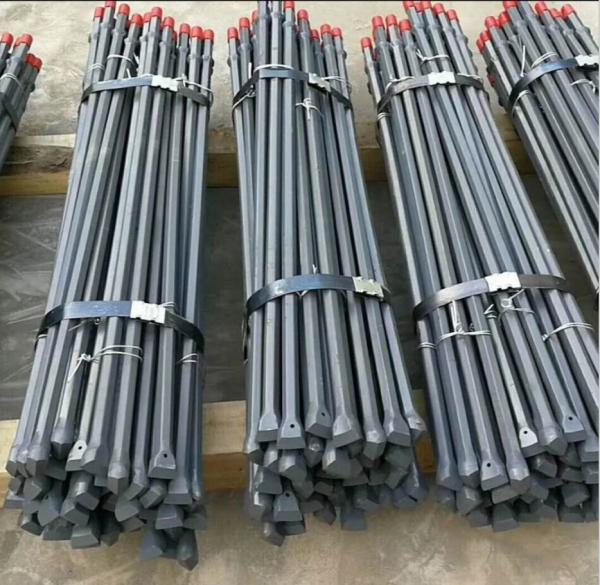

Pictures
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
Chisel Bit Integral Drill Steel for small hole rock drilling with Hex body Diameter 26mm-41mm
