Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races
Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races
Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races
Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races
Specifications
Brand Name :
MOUETTE
Model Number :
DC2222G, DC2776, DC3034, DC3175(3C), DC3809A, DC4127(3C), DC4445A, DC4972(4C), DC5476A, DC5476A(4C), DC5476B(4C), DC5476C(4C), DC5776A, DC6334B, DC7221(5C), DC7221B, DC7221B(5C), DC7969C(5C), DC8334C, DC8729A, DC10323A(3C), DC12334C, DC12388C(11C)
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
50
Price :
USD2 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
One Way Sprag Clutches
Material :
High-Alloy Bearing Quality Steel
Clutch Type :
Sprag Clutch
Clutch Application :
Backstopping, Indexing, Overrunning
Inch - Metric :
Inch
Basic Construction Type :
dual cage retainer assembly without inner or outer races
Lubrication Type :
designed for oil lubrication
Bearing Support Required :
Yes
Description

Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races

Overrunning, Indexing, Backstopping External Bearing Support Required, Sprag Clutches

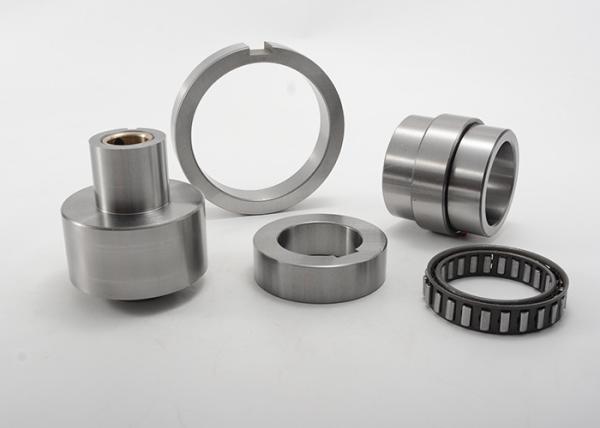

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipment.

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e*”, without any recess, to ensure the freewheel functions correctly as shown on following pages.

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45.

Sprag Clutches DC type Specifications:

Size Overrunning speeds

Øa +0.008

- 0,005

Øc

± 0,013

 Sprag space emin Ødmin Øbmax No.of clips No.of sprags Weight
　
　 TKN1 nimax Namax mm mm mm mm mm mm pcs pcs kg
Nm min-1 min-1
DC2222G 63 8600 4300 22.225 38.885 8.33 10 50 15 - 12 0.03
DC2776 119 6900 3400 27.762 44.422 8.33 14 58 18 - 14 0.055
DC3034 124 6300 3100 30.340 47.000 8.33 14 62 20 - 14 0.06
DC3175(3C) 159 6000 3000 31.750 48.410 8.33 14 63 24 3 16 0.06
DC3809A 275 5000 2500 38.092 54.752 8.33 16 71 29 - 18 0.085
DC4127(3C) 224 4600 2300 41.275 57.935 8.33 14 75 32 3 18 0.09
DC4445A 363 4300 2100 44.450 61.110 8.33 16 79 34 - 20 0.095
DC4972(4C) 306 3800 1900 49.721 66.381 8.33 14 86 38 4 22 0.1
DC5476A 525 3500 1700 54.765 71.425 8.33 16 92 42 - 24 0.11
DC5476A(4C) 525 3500 1700 54.765 71.425 8.33 16 92 42 4 24 0.13
DC5476B(4C) 769 3500 1700 54.765 71.425 8.33 21 92 42 4 24 0.18
DC5476C(4C) 990 3500 1700 54.765 71.425 8.33 25 92 42 4 24 0.2
DC5776A 604 3300 1600 57.760 74.42 8.33 16 98 44 - 26 0.11
DC6334B 806 3000 1500 63.340 80.000 8.33 21 104 50 - 26 0.175
DC7221(5C) 675 2600 1300 72.217 88.877 8.33 14 115 56 5 30 0.14
DC7221B 1279 2600 1300 72.217 88.877 8.33 21 115 56 - 30 0.185
DC7221B(5C) 1279 2600 1300 72.217 88.877 8.33 21 115 56 5 30 0.21
DC7969C(5C) 2038 2400 1200 79.698 96.358 8.33 25 124 61 5 34 0.28
DC8334C 2055 2300 1100 83.340 100.000 8.33 25 132 65 - 34 0.27
DC8729A 1250 2200 1100 87.290 103.96 8.33 16 134 67 - 34 0.165
DC10323A(3C)* 1612 1800 900 103.231** 119.89 8.33 16 155 80 3 40 0.205
DC12334C* 4800 1500 750 123.34** 140.000 8.33 25 184 96 - 50 0.4
DC12388C(11C) 4875 1500 750 123.881 142.88 9.5 25 196 96 11 44 0.4

NOTES:

1) Tmax=2.5 x TKN

2) Inner race overruns

3) Inner race overruns

**)Extension of tolerance to ± 0,013

4) Other customized dimensions are available.

5) Number of drag strip and clips are customized.
