Open End Full Complement Drawn Cup Needle Bearings HN2520
Open End Full Complement Drawn Cup Needle Bearings HN2520
Open End Full Complement Drawn Cup Needle Bearings HN2520
Open End Full Complement Drawn Cup Needle Bearings HN2520
Specifications
Brand Name :
MOUETTE
Model Number :
HN1010, HN1210, HN1212, HN1412, HN1516, HN1612, HN1816, HN2016, HN2020, HN2520, HN2820, HN3520, HN4020, HN4520, HN4525, HN5020, HN5025
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
100
Price :
USD0.2 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Drawn Cup Needle Roller Bearing Open End
Bearing Material :
Bearing Steel
Basic Design :
Open Ends
Sealing Solutions :
No Seal
Size :
Inch Series
Rolling Elements :
Full Complement Needle Roller Set
Cage :
No cage
Size Range :
Fw Size from 10mm to 50mm
Operating temperature :
-30 °C to 120 °C
Standard :
DIN 618-1/ISO 3245
Description

Drawn Cup Needle Roller Bearing Open End Full Complement Needle Roller Set HN2520

Drawn cup needle roller bearings with open ends and with closed end are needle roller bearings with a very small radial section height. They comprise thin-walled, drawn cup outer rings and needle roller and cage assemblies which together form a complete unit. The outer rings adapt themselves to the dimensional and geometrical accuracy of the housing bore.

Basic design bearings:

  • Drawn cup needle roller bearings with open ends (series designation HK series)

· are available open (without seals) or sealed on one or both sides (Sealing solutions)

  • Drawn cup needle roller bearings with a closed end (series designation BK series)

· are available open or sealed (Sealing solutions)

· are suitable for bearing arrangements where they are situated at the end of a shaft

· accommodate small axial guidance forces, because of the profiled design of their closed end

  • Full complement bearings with open ends (series designation HN Series)

· are suitable for very heavy radial loads at moderate speeds

· are available with open ends and without seals only

Full complement drawn cup needle roller bearings are supplied with a special grease to secure the rollers during transport. However, we recommend re-lubricating after mounting.

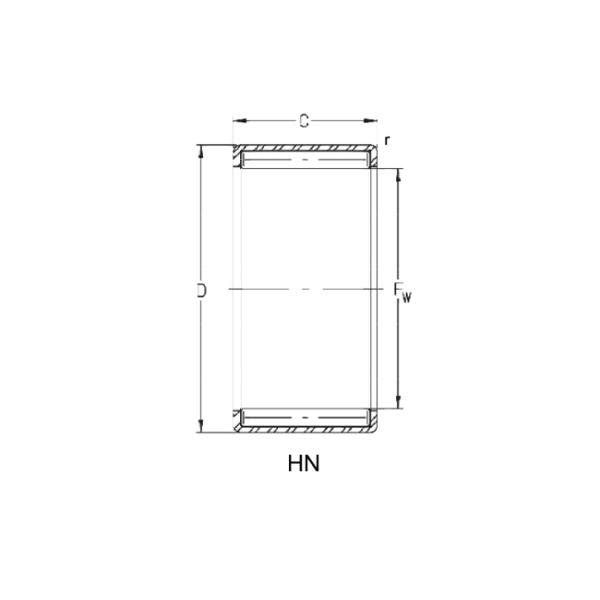

Drawn Cup Needle Roller Bearing Open End Full Complement Needle Roller Set HN Type Specification:

Bearing Designation Mass Boundary Dimensions r(min.) Basic Load Rating Fatigue limit load Limiting speed
Fw D C Cr Cor Cur Oil
g mm mm N rpm
HN1010 4.6 10 14 10 0.4 7200 11100 1540 10000
HN1210 5.3 12 16 10 0.4 8000 13400 11850 8600
HN1212 10.5 12 18 12 0.8 10200 15200 1950 8000
HN1412 12 14 20 12 0.8 11000 17500 2260 7100
HN1516 14 15 21 16 0.8 15400 27500 3600 6700
HN1612 13 16 22 12 0.8 12000 20300 2600 6300
HN1816 20 18 24 16 0.8 17000 32500 4250 5700
HN2016 22 20 26 16 0.8 18100 36500 4750 5200
HN2020 29.5 20 26 20 0.8 22400 48000 6600 5200
HN2520 39.6 25 32 20 0.8 28000 59000 7900 4200
HN2820 44 28 35 20 0.8 30000 67000 9000 3800
HN3520 54 35 42 20 0.8 33500 83000 11100 3100
HN4020 60.5 40 47 20 0.8 36000 95000 12700 2750
HN4520 66 45 52 20 0.8 38500 108000 14500 2470
HN4525 85 45 52 25 0.8 47000 139000 19500 2470
HN5020 85.3 50 58 20 0.8 44500 119000 16200 2220
HN5025 107 50 58 25 0.8 54000 152000 21700 2220

Open End Full Complement Drawn Cup Needle Bearings HN2520

Open End Full Complement Drawn Cup Needle Bearings HN2520

Open End Full Complement Drawn Cup Needle Bearings HN2520
