DL1210 Metric Needle Roller Bearings Full Complement Drawn Cup Open End
DL1210 Metric Needle Roller Bearings Full Complement Drawn Cup Open End
DL1210 Metric Needle Roller Bearings Full Complement Drawn Cup Open End
DL1210 Metric Needle Roller Bearings Full Complement Drawn Cup Open End
Specifications
Brand Name :
MOUETTE
Model Number :
DL6 10, DLF 6 10, DL 8 10, DLF 8 10, DL 10 12, DLF 10 12, DL 12 10, DLF 12 10, DL 12 12, DLF 12 12, DL 15 12, DLF 15 12, DL 18 12, DLF 18 12, DL 20 12, DLF 20 12, DL 25 16, DLF 25 16, DL 28 20, DLF 28 20, DL 35 16, DLF 35 16, DL 40 16, DLF 40 16, DL 50 12
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
100
Price :
USD0.2 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Drawn Cup Needle Roller Bearing Full Complement
Measurement :
Metric
Bearing Material :
Bearing steel
Sealing Solutions :
Open, no seal
Size Range :
Fw Size from 6mm to 55mm
Rolling Elements :
Needle Rollers
Cage :
Without Cage
Lubrication :
Grease
Number of Rolling Element :
1
Standards :
ANSI/ABMA 18.2, ASTM F2162
Description

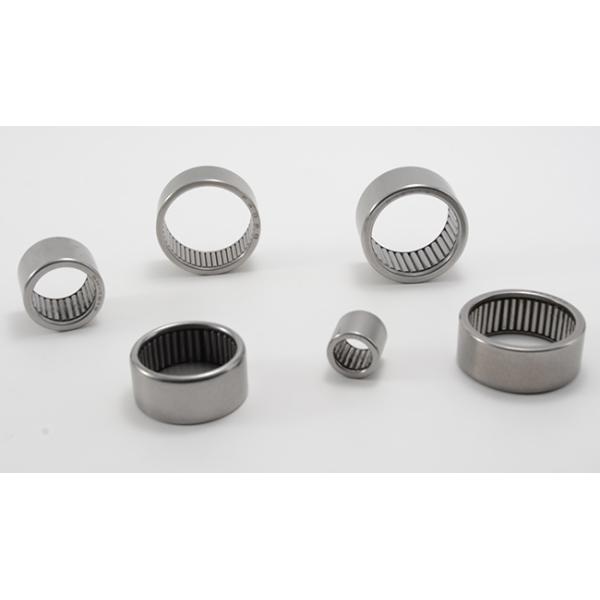

Drawn Cup Needle Roller Bearing Full Complement Bearing Open Ends Metric DL1210

Drawn Cup Needle Roller Bearings, available in 3mm to 140mm bore(1/8 to 5 1/2 in.), are designed to support radial loads and reduce friction between rotating components. The low cross section of the drawn cup bearing provides maximum load-carrying capability with minimum space required.

The outer ring in the form of a cup is accurately drawn and no subsequent machining is performed to build the outer raceway. Drawn Cup Needle Roller Bearings are available in open ends or single, closed-end designs. They also are available with one or two integral seals.

MOUETTE supplies a wide assortment of drawn cup needle roller bearings. This includes:

  • Bearings with open ends
  • Bearings with a closed end
  • Full complement bearings with open ends

Full complement drawn cup needle roller bearings are supplied with a special grease to secure the rollers during transport. However, we recommend re-lubricating after mounting.

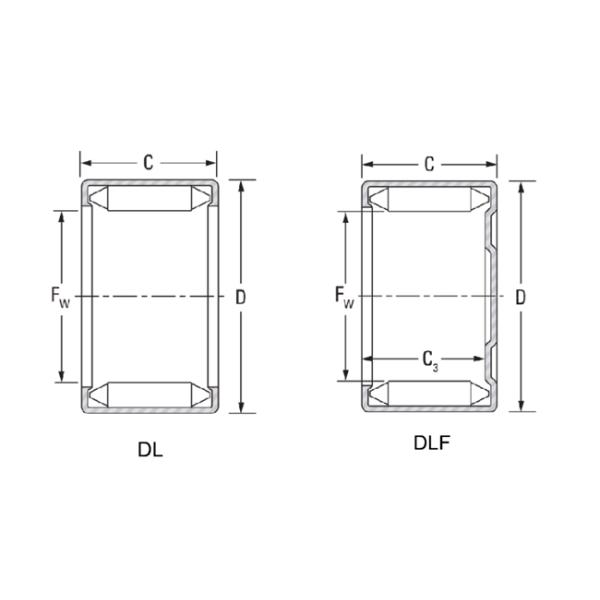

Drawn Cup Needle Roller Bearing Full Complement Bearing Open Ends Metric DL, DLF Series Specifications:

Shaft Dia. Bearing Designation Mass Boundary Dimensions C3min Basic Load Rating Limiting Speed
Fw D C Cr Cor Oil
mm kg mm mm N rpm
6 DL6 10 0.004 6 12 10 — 2900 3800 50000
　 DLF 6 10 0.004 6 12 10 7.7 2900 3800 50000
8 DL 8 10 0.005 8 14 10 — 4500 6500 37500
　 DLF 8 10 0.006 8 14 10 7.7 4500 6500 37500
9 DL 9 14 12 0.006 9 14 12 — 6100 9200 33000
　 DLF 9 14 12 0.007 9 14 12 9.7 6100 9200 33000
10 DL 10 12 0.008 10 16 12 — 7000 10900 30000
　 DLF 10 12 0.009 10 16 12 9.7 7000 10900 30000
12 DL 12 10 0.008 12 18 10 — 6000 9700 25000
　 DLF 12 10 0.008 12 18 10 7.7 6000 9700 25000
　 DL 12 12 0.009 12 18 12 — 7000 11500 25000
　 DLF 12 12 0.010 12 18 12 9.7 7000 11500 25000
13 DL 13 12 0.010 13 19 12 — 8500 14200 23000
　 DLF 13 12 0.011 13 19 12 9.7 8500 14200 23000
14 DL 14 12 0.011 14 20 12 — 7900 13500 21500
　 DLF 14 12 0.012 14 20 12 9.7 7900 13500 21500
15 DL 15 12 0.011 15 21 12 — 9400 16400 20000
　 DLF 15 12 0.012 15 21 12 9.7 9400 16400 20000
16 DL 16 12 0.012 16 22 12 — 8700 15500 18500
　 DLF 16 12 0.013 16 22 12 9.7 8700 15500 18500
17 DL 17 12 0.013 17 23 12 — 9000 16200 17500
　 DLF 17 12 0.014 17 23 12 9.7 9000 16200 17500
18 DL 18 12 0.014 18 24 12 — 10700 19500 16500
　 DLF 18 12 0.016 18 24 12 9.7 10700 19500 16500
　 DL 18 16 0.019 18 24 16 — 16000 29500 16500
　 DLF 18 16 0.021 18 24 16 13.7 16000 29500 16500
20 DL 20 12 0.015 20 26 12 — 10200 19500 15000
　 DLF 20 12 0.017 20 26 12 9.7 10200 19500 15000
　 DL 20 16 0.020 20 26 16 — 16000 30500 15000
　 DLF 20 16 0.022 20 26 16 13.7 16000 30500 15000
22 DL 22 16 0.022 22 28 16 — 17000 33000 13500
　 DLF 22 16 0.025 22 28 16 13.7 17000 33000 13500
25 DL 25 16 0.035 25 33 16 — 16000 32500 12000
　 DLF 25 16 0.039 25 33 16 13.7 16000 32500 12000
　 DL 25 20 0.043 25 33 20 — 22800 46000 12000
　 DLF 25 20 0.047 25 33 20 17.7 22800 46000 12000
28 DL 28 20 0.047 28 36 20 — 24500 52000 11000
　 DLF 28 20 0.051 28 36 20 17.7 24500 52000 11000
30 DL 30 16 0.040 30 38 16 — 21700 46500 10000
　 DLF 30 16 0.045 30 38 16 13.7 21700 46500 10000
　 DL 30 20 0.050 30 38 20 — 26000 56000 10000
　 DLF 30 20 0.055 30 38 20 17.7 26000 56000 10000
　 DL 30 25 0.063 30 38 25 — 35500 76000 10000
　 DLF 30 25 0.068 30 38 25 22.7 35500 76000 10000
35 DL 35 16 0.046 35 43 16 — 24000 54000 8500
　 DLF 35 16 0.053 35 43 16 13.7 24000 54000 8500
　 DL 35 20 0.057 35 43 20 — 29000 65000 8500
　 DLF 35 20 0.064 35 43 20 17.7 29000 65000 8500
40 DL 40 16 0.051 40 48 16 — 26500 62000 7500
　 DLF 40 16 0.061 40 48 16 13.7 26500 62000 7500
　 DL 40 20 0.064 40 48 20 — 36000 84000 7500
　 DLF 40 20 0.074 40 48 20 17.7 36000 84000 7500
44 DL 44 16 0.056 44 52 16 — 23800 57000 6800
　 DLF 44 16 0.066 44 52 16 13.7 23800 57000 6800
47 DL 47 16 0.060 47 55 16 — 25000 61000 6400
　 DLF 47 16 0.071 47 55 16 13.7 25000 61000 6400
50 DL 50 12 0.047 50 58 12 — 20000 50000 6000
　 DLF 50 12 0.061 50 58 12 9.7 20000 50000 6000
　 DL 50 18 0.071 50 58 18 — 36500 92000 6000
　 DLF 50 18 0.085 50 58 18 15.7 36500 92000 6000
　 DL 50 20 0.077 50 58 20 — 37000 93000 6000
　 DLF 50 20 0.091 50 58 20 17.7 37000 93000 6000
55 DL 55 20 0.086 55 63 20 — 39500 102000 5500
　 DLF 55 20 0.102 55 63 20 17.7 39500 102000 5500
