8 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X12
8 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X12
8 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X12
8 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X12
Specifications
Brand Name :
MOUETTE
Model Number :
KBK10X13X10, KBK10X14X12, KBK10X14X13, KBK12X15X13, KBK12X15X17, KBK12X16X13, KBK12X16X16, KBK12X16X17, KBK14X18X10, KBK14X18X13, KBK14X18X17, KBK14X18X20, KBK18X23X23, KBK18X24X20
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
100
Price :
USD0.2 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Connecting Rods Use Needle Roller and Cage Assembly Bearing
Category :
Needle Roller and Cage Assembly
Sealing Solutions :
Open, no seal
Size :
Shaft Diameter from 8mm to 20mm
Rolling Elements :
Needle roller
Cage Material :
Steel
Needle Roller Material :
Bearing Quality Steel
Surface Treatment :
Customized
Description

Connecting Rods Use Needle Roller and Cage Assembly Bearing KBK10X14X12

The rod-use needle roller and cage assembly is mainly used for engine, compressor and other crank-guide.

The designation of the rod-use needle roller and cage assembly is composed of letter and number. The letter KZK represents crank pine assembly and KBK represents piston pin assembly.

The needle roller and cage assembly for KZK crank pin adapts M-type cage with reliable performance. It has special requirement. The surface of cage can be silver-plated or copper-coated.

The needle roller and cage assembly for KBK piston pin is different from KZK (external guide for crank pin). It is internally guided on the piston pin), thus increasing the length of needle.

Connecting Rods Use Needle Roller and Cage Assembly Bearing Details:

Shaft

Diameter

 Bearing Designation

Mass

Approx

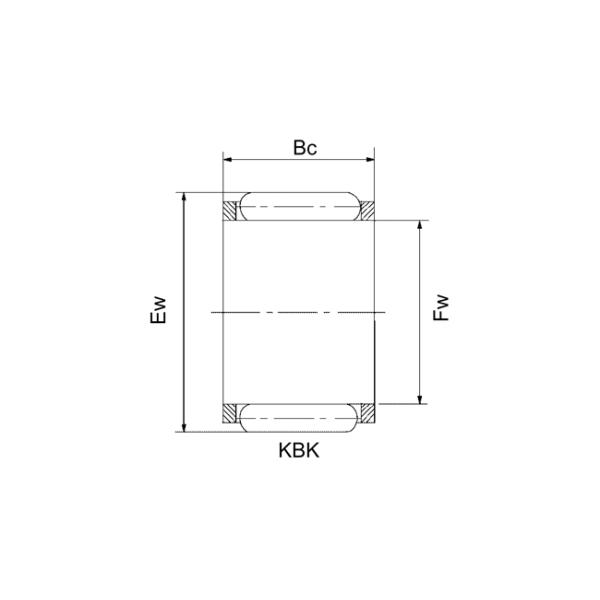

 Boundary Dimensions Basic Load Rating
Current Code Original Code Fw Ew Bc Dynamic Static
mm g mm N
8 KBK8X11X10 39241/8 1.85 8 11 10 3500 4000
KBK8X12X10 29242/8 2 8 12 10 3700 4100
9 KBK9X12X11.5 2.4 9 12 11.5 4200 4800
KBK9X12X13 49241/9 2.75 9 12 13 4600 5800
KBK9X12X14 3.5 9 12 14 4700 5900
KBK9X13X12 39242/9 4.1 9 13 12 5300 5700
KBK9X13X12.5 4.9 9 13 12.5 5300 5700
KBK9X13X13 39242/9 5.1 9 13 13 5350 5600
10 KBK10X13X8 29241/10 2 10 13 8 4000 5000
KBK10X13X10 39241/10 2.4 10 13 10 4200 5200
KBK10X13X14.5 59241/10 5.1 10 13 14.5 5400 6600
KBK10X13X16 5.7 10 13 16 6800 7700
KBK10X14X10 29242/10 3.4 10 14 10 4400 4600
KBK10X14X11 4 10 14 11 5200 5700
KBK10X14X12 4.5 10 14 12 5400 6000
KBK10X14X12.5 4.85 10 14 12.5 5600 6200
KBK10X14X13 39242/10 5.4 10 14 13 5600 6200
11 KBK11X15X17 5 11 15 17 5200 7000
12 KBK12X15X13 49241/12 4.6 12 15 13 5500 7300
KBK12X15X14.3 5.4 12 15 14.3 5800 7700
KBK12X15X15 59241/12 5.6 12 15 15 5900 7800
KBK12X15X16.5 6.2 12 15 16.6 6800 9900
KBK12X15X17 69241/12 6.3 12 15 17 7000 10000
KBK12X15X17.5 6.5 12 15 17.5 7000 10000
KBK12X16X13 39242/12 6.7 12 16 13 6300 7600
KBK12X16X15 149242/12KY 7.9 12 16 15 7500 9000
KBK12X16X15.5 8.3 12 16 15.5 7600 10000
KBK12X16X16 59241/12 8.5 12 16 16 7800 9300
KBK12X16X17 59242/12 9.2 12 16 17 7900 9400
KBK12X17X14 8 12 17 14 8000 9500
KBK12X17X14.3 8.4 12 17 14.3 8000 9500
KBK19X17X14.8 8.8 12 17 14.8 8300 9800
13 KBK13X17X14.5 7.1 13 17 14.5 8300 10200
KBK13X17X17.5 8.6 13 17 17.5 9500 12100
14 KBK14X18X10 29241/14 4.6 14 18 10 6260 7400
KBK14X18X12 6.6 14 18 12 6380 7570
KBK14X18X13 39241/14 7.6 14 18 13 7300 8700
KBK14X18X14 6.33 14 18 14 7400 8800
KBK14X18X14.5 8 14 18 14.5 7400 8800
14 KBK14X18X15 49241/14 8.3 14 18 15 7600 8990
KBK14X18X16.5 9.6 14 18 16.5 8800 9700
KBK14X18X17 59241/14 10.1 14 18 17 8900 9800
KBK14X18X20 69241/14 12 14 18 20 9000 10100
KBK14X18X21 13 14 18 21 10500 12400
KBK14X19X22 14 14 18 22 11100 13100
KBK14X18X17 49242/14K 10.3 14 19 17 11100 13100
15 KBK15X19X10 29241/15Y 5 15 19 10 6500 8600
KBK15X19X18 11 15 19 18 9900 11300
KBK15X19X19 12 15 19 19 10100 12800
KBK15X19X20 69241/15 12.9 15 19 20 11300 15500
KBK15X20X24 18.6 15 20 24 14100 20000
16 KBK16X20X19 SZ-433 12 16 20 19 11700 16800
KBK16X20X20 69241/16Y 13.4 16 20 20 12900 17600
KBK16X20X21 14 16 20 21 12900 17600
KBK16X20X22 15 16 20 22 13000 18700
KBK16X21X19 59242/16 16 16 21 19 13000 18700
17.5 KBK17.5X22X16 9.3 17.5 22 16 11000 16300
18 KBK18X22X22 16.9 18 22 22 11500 17700
KBK18X22X23.5 18 18 22 23.5 11900 19000
KBK18X22X24 18.4 18 22 24 12000 20000
KBK18X22X25 19.1 18 22 25 12700 20100
KBK18X23X21 18 18 23 21 9900 10100
KBK18X23X23 69242/18 20 18 23 23 10500 12000
KBK18X24X20 49243/18 20 18 24 20 20000 25000
20 KBK20X24X30 22.1 20 24 30 14900 25500
KBK20X25X22 19.5 20 25 22 15200 22300
KBK20X25X25 23 20 25 25 17100 24000

8 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X128 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X12

8 To 20mm Needle Roller Bearing Connecting Rods Cage Assembly KBK10X14X12
