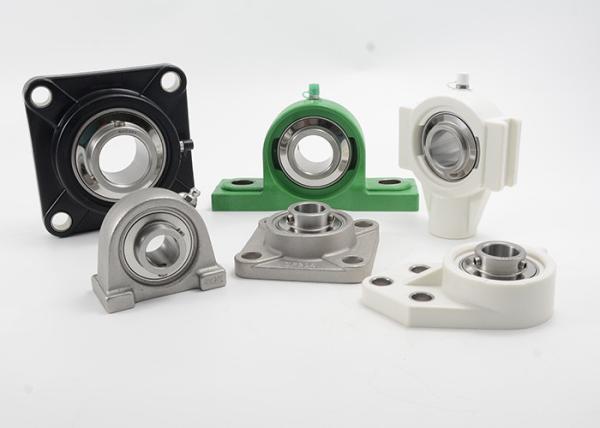

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
Specifications
Brand Name :
MOUETTE
Model Number :
SS-UCPPL201, SS-UCPPL203, SS-UCPPL204, SS-UCPPL207, SS-UCPPL208
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
Price :
USD1 per Piece (Inquired)
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-40 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Plastic Pillow Blocks Bearing with Stainless steel insert bearing
Housing Type :
Plummer Block
Housing Material :
high grade of glass-filled PBT polymer
Insert Bearings' Material :
Stainless Steel AISI 440C, Stainless Steel 420
Number of Mounting Holes :
2
Shaft Fastening :
Grub Screws
Re-lubrication :
housing with integrated lubrication hole
Applications :
the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
Description

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

The pillow block bearing SS-UCPPL200 Series are suitable for high radial loads and are hygienic and corrosion resistant with its plastic housings and stainless steel bearing inserts.

Features:

  • consisting of a stainless steel bearing insert and a thermoplastic housing.
  • suitable for mounting on flat surfaces and high radial load capacities.
  • the housing is made of plastic and is therefore lightweight, hygienic, corrosion-resistant and cushioning.
  • the bearing insert made of stainless steel is also corrosion-resistant and has an extended inner ring with grub screws.
  • The pillow block bearing is mounted on the shaft with two grub screws
  • smooth running and good behavior with tilting due to the extended inner ring
  • two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter
  • the bearing is lubricated for life with the grease for food industry FM 222 for normal operating conditions
  • the bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry
  • housing with integrated lubrication hole

Plastic Pillow Block Bearing Housing Bearing SS-UCPPL200 Series Specifications:

Plastic Pillow Blocks Part No.

 Bore Dia Dimensions(mm)

Housing Weight (kg)

Bolt Size
d

h

 a e

b

 S1 S2 g w

Bi

 n
mm
SS-UCPPL 201 12 33.3 127 95 38 11 14 14.2 65.5 31 12.7 0.12 M10
SS-UCPPL 202 15 33.3 127 95 38 11 14 14.2 65.5 31 12.7 0.12 M10
SS-UCPPL 203 17 33.3 127 95 38 11 14 14.2 65.5 31 12.7 0.12 M10
SS-UCPPL 204 20 33.3 127 95 38 11 14 14.2 65.5 31 12.7 0.12 M10
SS-UCPPL 205 25 36.5 140.5 105 38 11 14 14.5 71.5 34.1 14.3 0.14 M10
SS-UCPPL 206 30 42.9 163.5 119 46 14 18 17.8 83.5 38.1 15.9 0.20 M12
SS-UCPPL 207 35 47.6 168 127 48 14 18 18 94.5 42.9 17.5 0.25 M12
SS-UCPPL 208 40 49.2 184 137 54 14 18 20 99 49.2 19 0.35 M12
SS-UCPPL 209 45 54 192 146 54 17 20 23 106 49.2 19 0.45 M16
SS-UCPPL 210 50 57.2 206 159 60 17 20 23 114 51.6 19 0.55 M16
SS-UCPPL 211 55 63.5 220 171 60 17 20 23 126 55.6 22.2 0.65 M16
SS-UCPPL 212 60 69.8 241 184 70 17 20 25 138 65.1 25.4 0.75 M16

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

Mode of load

Load ratings(N)
Type 204 205 206 207 208 209 210

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

8800

13700

12650

12750

13100

13360

13850

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

7700

10000

10600

10800

11100

11400

11750

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

5000

8100

5750

7500

8500

8950

9550

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm

Plastic Pillow Block Bearing Housing Bearing 2 Bolt SS UCPPL 203 Shaft 17 mm
