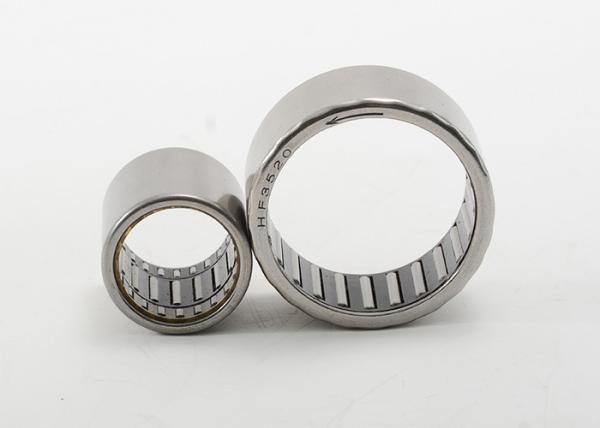

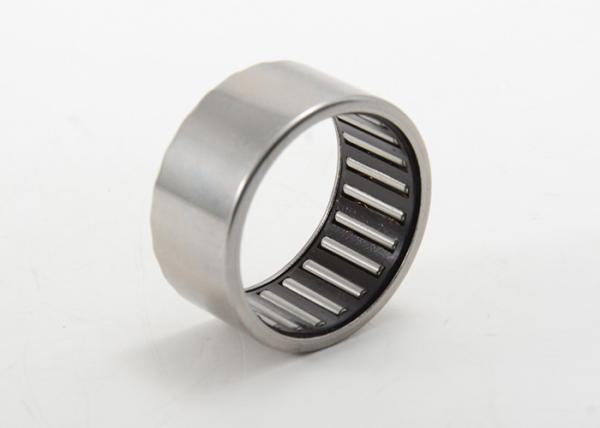

High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
High Torque One Way Clutch Bearing Drawn Cup Needle Bearing With Steel Springs
Specifications
Brand Name :
MOUETTE
Model Number :
HF0406, HF0612, HF0812, HF1012, HF1216, HF1416, HF1616, HF1816, HF2016, HF2520, HF3020, HF3520
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
100
Price :
USD0.5 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
One Way Needle Bearing/Clutch
Drawn Cup Type :
Roller Clutch
Closure Type :
Open
Number of Rows :
One
Coating :
Without
Shape of outer surface :
Smooth outside surface
Spring design :
Standard, Steel pressure springs
Operating Temperature Range :
-10 to +70 °C
Description

One Way Needle Bearing Drawn Cup Needle Roller Clutches With Steel Springs

Drawn cup roller clutches are one-way clutches, the name of which is derived from the thin-walled, drawn outer rings (cups). They can transmit high torques in one direction and have an extensive range of applications, for example as indexing clutches, back-stopping clutches and overrunning clutches.

Due to their design, drawn cup roller clutches have a very high indexing accuracy, a high indexing frequency and a low overrunning frictional torque.

In order to guarantee concentricity and, as a result, correct functioning, a support bearing arrangement is necessary for drawn cup roller clutches. Drawn cup roller clutches are therefore available with an integrated bearing arrangement (HFL). For drawn cup roller clutches without an integrated bearing arrangement (HF), the support bearing arrangement must be provided by additional rolling bearings.

Drawn cup roller clutches are available with or without knurling. They are supplied greased as standard. For applications with oil lubrication, drawn cup roller clutches are available without greasing.

One Way Needle Bearing Drawn Cup Roller Clutches With Steel Springs HF Series Specifications:

Shaft

Diameter

 Bearing Designation

Mass

Approx

 Boundary Dimensions Basic Load Rating Limiting Speed

Limiting

Speed
Bearing Code Fw D C Dynamic Static Static Oil Oil
mm g mm N rpm
4 HF0406 1 4 8 6 34000 14000 0.34
6 HF0612 3 6 10 12 23000 13000 1.76
8 HF0812 3.5 8 12 12 17000 12000 3.15
10 HF1012 4 10 14 12 14000 11000 5.3
12 HF1216 11.6 12 18 16 11000 8000 12.2
14 HF1416 13 14 20 16 9500 8000 17.3
16 HF1616 14 16 22 16 8500 7500 20.5
18 HF1816 15.5 18 24 16 7500 7500 24.1
20 HF2016 17 20 26 16 7000 6500 28.1
25 HF2520 30.9 25 32 20 5500 5500 66
30 HF3020 36 30 37 20 4500 4500 90
35 HF3520 40 35 42 20 3900 3900 121
