Cylindrical Stud Type Cam Follower Stainless Steel Screwdriver Slot Shaft
Cylindrical Stud Type Cam Follower Stainless Steel Screwdriver Slot Shaft
Cylindrical Stud Type Cam Follower Stainless Steel Screwdriver Slot Shaft
Cylindrical Stud Type Cam Follower Stainless Steel Screwdriver Slot Shaft
Specifications
Brand Name :
MOUETTE
Model Number :
CFH 1 1/8 CFH 1 1/2 CFH 2 - Heavy Stud Cam Follower
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
100
Price :
USD1 per Piece
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-45 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Heavy Stud Cylindrical Inch Series Cam Follower Screwdriver Slot
Material :
Bearing Steel / Stainless Steel
Mounting Feature :
Screwdriver Slot
Size Range :
Inch Series( O.D. In Inches)
Basic Construction Type :
Cylindrical
Rolling Elements :
Full Complement Needle Rollers
Stud Type :
Heavy Stud
Seal Type :
Sealed/No Seals/ Customized
Lubrication Hole Location :
Stud side
Surface Finish :
Black Oxide Finish
Description

Heavy Stud Cylindrical Inch Cam Follower Screwdriver Slot CFH 1 1/8 CFH 1 1/2 CFH 2

Heavy Stud Cylindrical Inch Cam Follower Screwdriver Slot CFH 1 1/8 CFH 1 1/2 CFH 2

Designed to maximize preferred motion with rigid, consistent construction. Cam followers feature a simple and low friction profile to transform rotary motion into linear motion with low lubrication requirements.

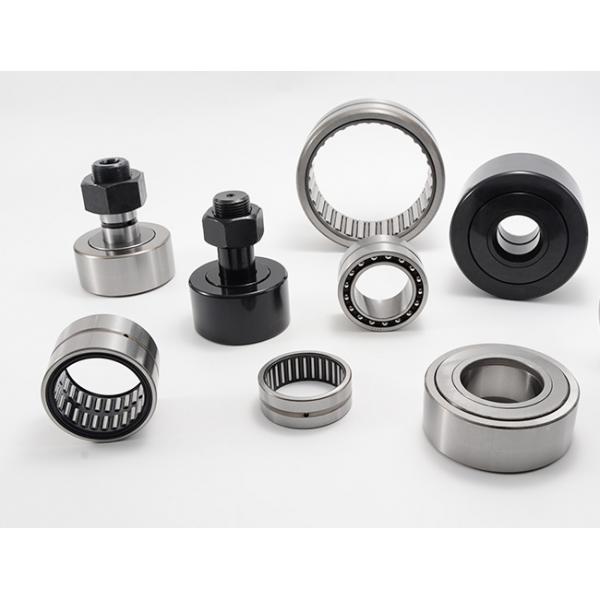

MOUETTE designs, manufactures and stocks a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance.

The MOUETTE makes:

· Standard and custom options including sizes, materials, and designs.

· Optimized raceways for improved contact stress distribution.

· High precision flexibility for different applications.

· Variable cages, shields, seals, and outer ring designs

· Available as mini, standard, eccentric, Hex hole, Screwdriver Slot, and with thrust disks.

· Simple installation using sockets or screwdrivers.

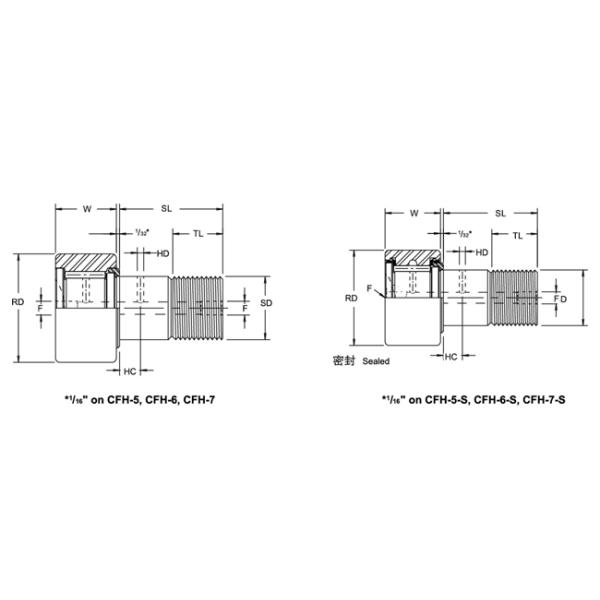

Heavy Stud Cylindrical Inch Cam Follower Mounting by Screwdriver Slot Specifications:

Unsealed Sealed Roller Dia. (RD) Roller Width (W) Stud Dia.(SD) Stud Length (SL) Min. Thread Lenght (TL) Fine THR'DS.
CFH 1/2 CFH 1/2 S .500 .375 .250 5/8 1/4 1/4-28
CFH 9/16 CFH 9/16 S .5625 .375 .250 5/8 1/4 1/4-28
CFH 5/8 CFH 5/8 S .625 .4375 .3125 3/4 5/16 5/16-24
CFH 11/16 CFH 11/16 S .6875 .4375 .3125 3/4 5/16 5/16-24
CFH 3/4 CFH 3/4 S .750 .500 .4375 7/8 3/8 7/16-20
CFH 7/8 CFH 7/8 S .875 .500 .4375 7/8 3/8 7/16-20
CFH 1 CFH 1 S 1.000 .625 .625 1 1/2 5/8-18
CFH 1 1/8 CFH 1 1/8 S 1.125 .625 .625 1 1/2 5/8-18
CFH 1 1/4 CFH 1 1/4 S 1.250 .750 .750 1 1/4 5/8 3/4-16
CFH 1 3/8 CFH 1 3/8 S 1.375 .750 .750 1 1/4 5/8 3/4-16
CFH 1 1/2 CFH 1 1/2 S 1.500 .875 .875 1 1/2 3/4 7/8-14
CFH 1 5/8 CFH 1 5/8 S 1.625 .875 .875 1 1/2 3/4 7/8-14
CFH 1 3/4 CFH 1 3/4 S 1.750 1.000 1.000 1 3/4 7/8 1-14
CFH 1 7/8 CFH 1 7/8 S 1.875 1.000 1.000 1 3/4 7/8 1-14
CFH 2 CFH 2 S 2.000 1.250 1.125 2 1 1 1/8-12
CFH 2 1/4 CFH 2 1/4 S 2.250 1.250 1.125 2 1 1 1/8-12
CFH 2 1/2 CFH 2 1/2 S 2.500 1.500 1.250 2 1/4 1 1/8 1 1/4-12
CFH 2 3/4 CFH 2 3/4 S 2.750 1.500 1.250 2 1/4 1 1/8 1 1/4-12
CFH 3 CFH 3 S 3.000 1.750 1.500 2 1/2 1 1/4 1 1/2-12
CFH 3 1/4 CFH 3 1/4 S 3.250 1.750 1.500 2 1/2 1 1/4 1 1/2-12
CFH 3 1/2 CFH 3 1/2 S 3.500 2.000 1.750 2 3/4 1 3/8 1 3/4-12
CFH 4 CFH 4 S 4.000 2.250 2.000 3 1/2 1 1/2 2-12
- CFH 5 S 5.000 2.750 2.500 5 1/16 2 9/16 2 1/2-12
- CFH 6 S 6.000 3.250 3.000 6 3 3-12
- CFH 7 S 7.000 3.750 3.500 7 11/16 4 1/8 3 1/2-4

Unsealed Sealed Oil Hole LUB. FITTING SIZE (F) Recom. Clamping Torque (LBS.) Basic Load Rating
Hole Center (HC) Hole Dia. (HD) Max. Static Capacity (LBS.) Max. Dyn. Capacity (LBS.)
CFH 1/2 CFH 1/2 S - - 1/8 35 1580 680
CFH 9/16 CFH 9/16 S - - 1/8 35 1580 680
CFH 5/8 CFH 5/8 S - - 1/8 90 2480 955
CFH 11/16 CFH 11/16 S - - 1/8 90 2480 955
CFH 3/4 CFH 3/4 S 1/4 3/32 3/16 250 4130 1660
CFH 7/8 CFH 7/8 S 1/4 3/32 3/16 250 4130 1660
CFH 1 CFH 1 S 1/4 3/32 3/16 650 6120 2225
CFH 1 1/8 CFH 1 1/8 S 1/4 3/32 3/16 650 6120 2225
CFH 1 1/4 CFH 1 1/4 S 5/16 3/32 3/16 1250 8500 3930
CFH 1 3/8 CFH 1 3/8 S 5/16 3/32 3/16 1250 8500 3930
CFH 1 1/2 CFH 1 1/2 S 3/8 3/32 3/16 1500 11280 4840
CFH 1 5/8 CFH 1 5/8 S 3/8 3/32 3/16 1500 11280 4840
CFH 1 3/4 CFH 1 3/4 S 7/16 3/32 3/16 2250 15840 6385
CFH 1 7/8 CFH 1 7/8 S 7/16 3/32 3/16 2250 15840 6385
CFH 2 CFH 2 S 1/2 1/8 3/16 2800 21140 8090
CFH 2 1/4 CFH 2 1/4 S 1/2 1/8 3/16 2800 21140 8090
CFH 2 1/2 CFH 2 1/2 S 9/16 1/8 3/16 3450 32900 11720
CFH 2 3/4 CFH 2 3/4 S 9/16 1/8 3/16 3450 32900 11720
CFH 3 CFH 3 S 5/8 1/8 1/4 5000 49820 15720
CFH 3 1/4 CFH 3 1/4 S 5/8 1/8 1/4 5000 49820 15720
CFH 3 1/2 CFH 3 1/2 S 11/16 1/8 1/4 5000 63250 22800
CFH 4 CFH 4 S 3/4 1/8 1/4 5000 89540 29985
- CFH 5 S 7/8 3/16 1/4” NPT 5000 135900 46575
- CFH 6 S 1 3/16 1/4” NPT 5000 160900 60000
- CFH 7 S 1 1/4 3/16 1/4” NPT 5000 213860 75380
