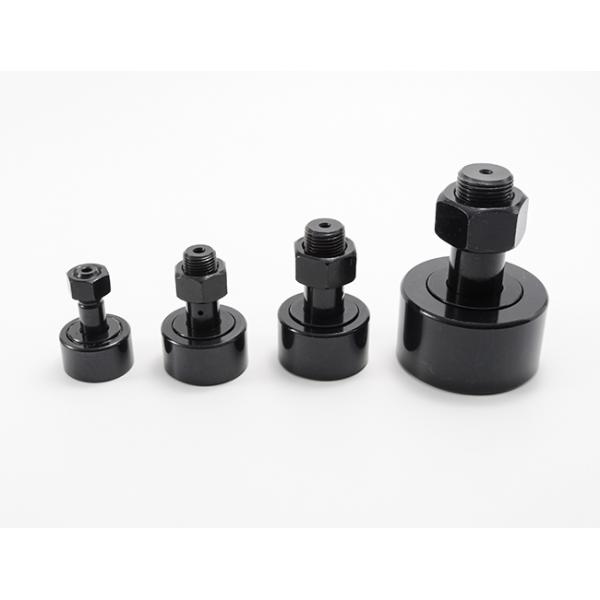

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB
Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB
Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB
Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB
Specifications
Brand Name :
MOUETTE
Model Number :
CCFH 1 SB, CCFH 1 1/2 SB, CCFH 1 3/8 SB - Stud Type Cam Follower
Certification :
ISO/TS 16949:2009, ISO 9001:2008
Place of Origin :
China
MOQ :
10
Price :
USD1 per Piece (asked)
Payment Terms :
L/C, T/T, D/A, Western Union, Paypal
Supply Ability :
500,000 Pieces per Month.
Delivery Time :
3-60 working days.(Huge Quantity Stocks Available))
Packaging Details :
Plastic bags, Cartons and European Standard Plywood Case.
Name :
Heavy Stud Crowned Inch Cam Follower Bearing Steel Black Oxide Finish
Material :
Chrome Steel 52100
Hex/Slot :
Hex Hole Stud Type
Finish :
Black Oxide Finish
Size :
Inch Series
Basic Construction Type :
Stud Type Crowned Outside Diameter
Rolling Elements :
Needle Roller - Full Complement
Stud Type :
Heavy Stud
Closure Type :
Sealed /Unsealed / Customized
Lubrication Hole Location :
Stud side
Description

Heavy Stud Crowned Inch Cam Follower Bearing Steel Black Oxide Finish Sealed CCFH 1 SB

MOUETTE designs and manufactures a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance. Cam followers and track rollers provide antifriction solutions for translating rotation to linear motion or supporting either pure radial or combination thrust loads depending on the rolling elements types.

Features:
· Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
· It provides improved resistance to shock loading versus caged needle bearing
· A heavy sectioned outer race design to help withstand shock loading of cam follower operation
· Inner studs are induction heat treated in the roller path and flange surfaces
· Bearings are supplied pre-lubricated with lithium soap thickened grease
· The annular groove in the outer raceway provides a lubrication reservoir which increases the pre-lubricated life of the bearing

Heavy Stud Crowned Inch Cam Follower Bearing Steel with Black Oxide Finish Specifications:

Unsealed Sealed Roller Dia. (RD) Roller Width (W) Stud Dia.(SD) Stud Length (SL) Min. Thread Lenght (TL) Fine THR'DS.
CCFH 1/2 B CCFH 1/2 SB .500 .375 .250 5/8 1/4 1/4-28
CCFH 9/16 B CCFH 9/16 SB .5625 .375 .250 5/8 1/4 1/4-28
CCFH 5/8 B CCFH 5/8 SB .625 .4375 .3125 3/4 5/16 5/16-24
CCFH 11/16 B CCFH 11/16 SB .6875 .4375 .3125 3/4 5/16 5/16-24
CCFH 3/4 B CCFH 3/4 SB .750 .500 .4375 7/8 3/8 7/16-20
CCFH 7/8 B CCFH 7/8 SB .875 .500 .4375 7/8 3/8 7/16-20
CCFH 1 B CCFH 1 SB 1.000 .625 .625 1 1/2 5/8-18
CCFH 1 1/8 B CCFH 1 1/8 SB 1.125 .625 .625 1 1/2 5/8-18
CCFH 1 1/4 B CCFH 1 1/4 SB 1.250 .750 .750 1 1/4 5/8 3/4-16
CCFH 1 3/8 B CCFH 1 3/8 SB 1.375 .750 .750 1 1/4 5/8 3/4-16
CCFH 1 1/2 B CCFH 1 1/2 SB 1.500 .875 .875 1 1/2 3/4 7/8-14
CCFH 1 5/8 B CCFH 1 5/8 SB 1.625 .875 .875 1 1/2 3/4 7/8-14
CCFH 1 3/4 B CCFH 1 3/4 SB 1.750 1.000 1.000 1 3/4 7/8 1-14
CCFH 1 7/8 B CCFH 1 7/8 SB 1.875 1.000 1.000 1 3/4 7/8 1-14
CCFH 2 B CCFH 2 SB 2.000 1.250 1.125 2 1 1 1/8-12
CCFH 2 1/4 B CCFH 2 1/4 SB 2.250 1.250 1.125 2 1 1 1/8-12
CCFH 2 1/2 B CCFH 2 1/2 SB 2.500 1.500 1.250 2 1/4 1 1/8 1 1/4-12
CCFH 2 3/4 B CCFH 2 3/4 SB 2.750 1.500 1.250 2 1/4 1 1/8 1 1/4-12
CCFH 3 B CCFH 3 SB 3.000 1.750 1.500 2 1/2 1 1/4 1 1/2-12
CCFH 3 1/4 B CCFH 3 1/4 SB 3.250 1.750 1.500 2 1/2 1 1/4 1 1/2-12
CCFH 3 1/2 B CCFH 3 1/2 SB 3.500 2.000 1.750 2 3/4 1 3/8 1 3/4-12
CCFH 4 B CCFH 4 SB 4.000 2.250 2.000 3 1/2 1 1/2 2-12

Unsealed Sealed Oil Hole LUB. FITTING SIZE (F) Recom. Clamping Torque (LBS.) Basic Load Rating
Hole Center (HC) Hole Dia. (HD) Max. Static Capacity (LBS.) Max. Dyn. Capacity (LBS.)
CCFH 1/2 B CCFH 1/2 SB - - - 35 1580 680
CCFH 9/16 B CCFH 9/16 SB - - - 35 1580 680
CCFH 5/8 B CCFH 5/8 SB - - - 90 2480 955
CCFH 11/16 B CCFH 11/16 SB - - - 90 2480 955
CCFH 3/4 B CCFH 3/4 SB 1/4 3/32 3/16 250 4130 1660
CCFH 7/8 B CCFH 7/8 SB 1/4 3/32 3/16 250 4130 1660
CCFH 1 B CCFH 1 SB 1/4 3/32 3/16 650 6120 2225
CCFH 1 1/8 B CCFH 1 1/8 SB 1/4 3/32 3/16 650 6120 2225
CCFH 1 1/4 B CCFH 1 1/4 SB 5/16 3/32 3/16 1250 8500 3930
CCFH 1 3/8 B CCFH 1 3/8 SB 5/16 3/32 3/16 1250 8500 3930
CCFH 1 1/2 B CCFH 1 1/2 SB 3/8 3/32 3/16 1500 11280 4840
CCFH 1 5/8 B CCFH 1 5/8 SB 3/8 3/32 3/16 1500 11280 4840
CCFH 1 3/4 B CCFH 1 3/4 SB 7/16 3/32 3/16 2250 15840 6385
CCFH 1 7/8 B CCFH 1 7/8 SB 7/16 3/32 3/16 2250 15840 6385
CCFH 2 B CCFH 2 SB 1/2 1/8 3/16 2800 21140 8090
CCFH 2 1/4 B CCFH 2 1/4 SB 1/2 1/8 3/16 2800 21140 8090
CCFH 2 1/2 B CCFH 2 1/2 SB 9/16 1/8 3/16 3450 32900 11720
CCFH 2 3/4 B CCFH 2 3/4 SB 9/16 1/8 3/16 3450 32900 11720
CCFH 3 B CCFH 3 SB 5/8 1/8 1/4 5000 49820 15720
CCFH 3 1/4 B CCFH 3 1/4 SB 5/8 1/8 1/4 5000 49820 15720
CCFH 3 1/2 B CCFH 3 1/2 SB 11/16 1/8 1/4 5000 63250 22800
CCFH 4 B CCFH 4 SB 3/4 1/8 1/4 5000 89540 29985

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB

Black Oxide Heavy Stud Type Track Rollers , Sealed Crowned Track Roller CCFH 1 SB
